AG Antenna Group AG97 network antenna Omni-directional antenna SMA 29 dBi
- Brand: AG Antenna Group
- Category:
- SKU: AG97-BB-4CG2W
- EAN:

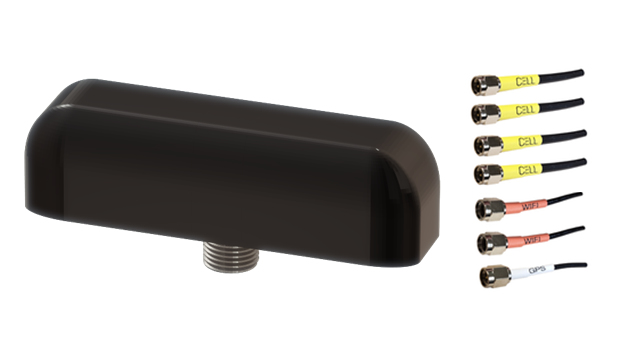

Low-Profile Series Mobility 7-Lead MIMO 4 x Cellular 4G 5G CBRS / GPS GNSS / MIMO 2 x Dual Band WiFi Antenna, Black
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
AG ANTENNA, LOW PROFILE SERIES MOBILITY 7-LEAD MULTI-MIMO 4 X CELLUAR 3G, 4G, 5G CBRS, GPS GNSS, MIMO 2 X WIFI DUAL BAND, BOLT MOUNT ANTENNA WITH 15FT COAX CABLES, BLACK |
AG97-BB-4CG2W | |||
|
AG97 7-Lead 4xCELL 2xWiFi GPS-BB |
6247658 |
Description
Maximum Connectivity / Rugged / Reliable
Our AG90 Low Profile Series Multi-MIMO Mobility Antennas - Proprietary Multi-Carrier / Multi-Technology Evolution Optimization Assures Maximum, Future-Proof Enterprise Connectivity
Our AG90 Low Profile Series Multi-MIMO Mobility Antennas - Our Ruggedized, Low-Profile, Weatherproof MIMO M2M IoT External Antenna Solutions are Currently Providing 100,000+ Cradlepoint, Sierra Wireless, Peplink, Inseego, BEC, DiGi Routers and Gateways with Enhanced Connectivity Nationwide.
Our AG90 Low Profile Series Multi-MIMO Mobility Antennas - Approved / Purchased by FBI, US Army, US Navy, US Air Force, US Marine Corps, DEA, Department of Homeland Security, Bureau of Alcohol Tobacco Firearms & Explosives, IRS and Other Federal, State & Local Public Safety Agencies Nationwide.
Frequency Bands
- Multi-Carrier / Multi-Technology Evolution Optimized
- Cellular 4G 5G CBRS LTE (617-960MHz / 1710-6000MHz)
- Verizon 4G 5G (DSS) Bands: B2 B4 B5 B13 B46 B48 B66
- T-Mobile 4G 5G Bands: B2 B4 B5 B12 B25 B26 B41 B66 B71 n25 n41 n66 n71
- AT&T 4G 5G Bands: B2 B4 B5 B12 B14 B17 B29 B30 B66 n5
- CBRS LTE Band: B48
- Multi Band GPS GNSS: 1562MHz ~ 1612MHz
- Dual Band WiFi: 2.4GHz / 5.0GHz Concurrent
Features
- Heavy Duty, Low-Profile, High Impact, Weatherproof ABS Dome Housing
- Engineered For Demanding Enterprise Level Public Safety Applications
- For Use in ALL Climates & Conditions
- Approved / Purchased by Federal, State & Local Agencies Nationwide
- For Use in Mobility and Stationary Applications
- Available Colors: Black or White
- TAA Compliant
- Multi-Carrier / Multi-Technology Compliant
Full Length Coax Cables (Custom Cable Lengths Available)
- Cellular: 15ft CFD200 Coax Cables
- WiFi: 15ft CFD200 Coax Cables
- GPS GNSS: 15ft CFD100 Coax Cable
Connector Ends (All Standard Connector Ends Available)
- Cellular: SMA Male
- WiFi: RP SMA Male
- GPS GNSS: SMA Male
Our AG90 Low Profile Series Multi-MIMO Mobility Antennas - Proprietary Multi-Carrier / Multi-Technology Evolution Optimization Assures Maximum, Future-Proof Enterprise Connectivity
Our AG90 Low Profile Series Multi-MIMO Mobility Antennas - Our Ruggedized, Low-Profile, Weatherproof MIMO M2M IoT External Antenna Solutions are Currently Providing 100,000+ Cradlepoint, Sierra Wireless, Peplink, Inseego, BEC, DiGi Routers and Gateways with Enhanced Connectivity Nationwide.
Our AG90 Low Profile Series Multi-MIMO Mobility Antennas - Approved / Purchased by FBI, US Army, US Navy, US Air Force, US Marine Corps, DEA, Department of Homeland Security, Bureau of Alcohol Tobacco Firearms & Explosives, IRS and Other Federal, State & Local Public Safety Agencies Nationwide.
Frequency Bands
- Multi-Carrier / Multi-Technology Evolution Optimized
- Cellular 4G 5G CBRS LTE (617-960MHz / 1710-6000MHz)
- Verizon 4G 5G (DSS) Bands: B2 B4 B5 B13 B46 B48 B66
- T-Mobile 4G 5G Bands: B2 B4 B5 B12 B25 B26 B41 B66 B71 n25 n41 n66 n71
- AT&T 4G 5G Bands: B2 B4 B5 B12 B14 B17 B29 B30 B66 n5
- CBRS LTE Band: B48
- Multi Band GPS GNSS: 1562MHz ~ 1612MHz
- Dual Band WiFi: 2.4GHz / 5.0GHz Concurrent
Features
- Heavy Duty, Low-Profile, High Impact, Weatherproof ABS Dome Housing
- Engineered For Demanding Enterprise Level Public Safety Applications
- For Use in ALL Climates & Conditions
- Approved / Purchased by Federal, State & Local Agencies Nationwide
- For Use in Mobility and Stationary Applications
- Available Colors: Black or White
- TAA Compliant
- Multi-Carrier / Multi-Technology Compliant
Full Length Coax Cables (Custom Cable Lengths Available)
- Cellular: 15ft CFD200 Coax Cables
- WiFi: 15ft CFD200 Coax Cables
- GPS GNSS: 15ft CFD100 Coax Cable
Connector Ends (All Standard Connector Ends Available)
- Cellular: SMA Male
- WiFi: RP SMA Male
- GPS GNSS: SMA Male
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 29 dBi |
| Frequency band | 0.617 - 6 GHz |
| Impedance | 50 Ω |
| Antenna gain (5 GHz) | 9 dBi |
| Antenna gain (2.4 GHz) | 9 dBi |
| Features | |
| Waterproof | Yes |
| Ultraviolet (UV) resistant | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP69K |
| Connector gender | Male |
| Antenna gain level (max) | 29 dBi |
| Frequency band | 0.617 - 6 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Purpose | Outdoor |
| Impedance | 50 Ω |
| Product colour | Black |
| Certification | TAA |
| Cable type | CFD200/CFD100 |
| Cable length | 177.2" (4.5 m) |
| Antenna gain (5 GHz) | 9 dBi |
| Antenna gain (2.4 GHz) | 9 dBi |
| Antenna connector type | SMA |
| Power | |
| Power source type | DC |
| Input voltage | 3 - 5 V |
| Power consumption | 15 mA |
| Technical details | |
| Antenna gain level (max) | 29 dBi |
| Frequency band | 0.617 - 6 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Purpose | Outdoor |
| Impedance | 50 Ω |
| Cable type | CFD200/CFD100 |
| Cable length | 177.2" (4.5 m) |
| Antenna gain (5 GHz) | 9 dBi |
| Antenna gain (2.4 GHz) | 9 dBi |
| Antenna connector type | SMA |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | TAA |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Width | 7.87" (200 mm) |
| Depth | 2.36" (60 mm) |
| Height | 2.56" (65 mm) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
