AMX Massio push-button panel Black

AMX Massio push-button panel Black

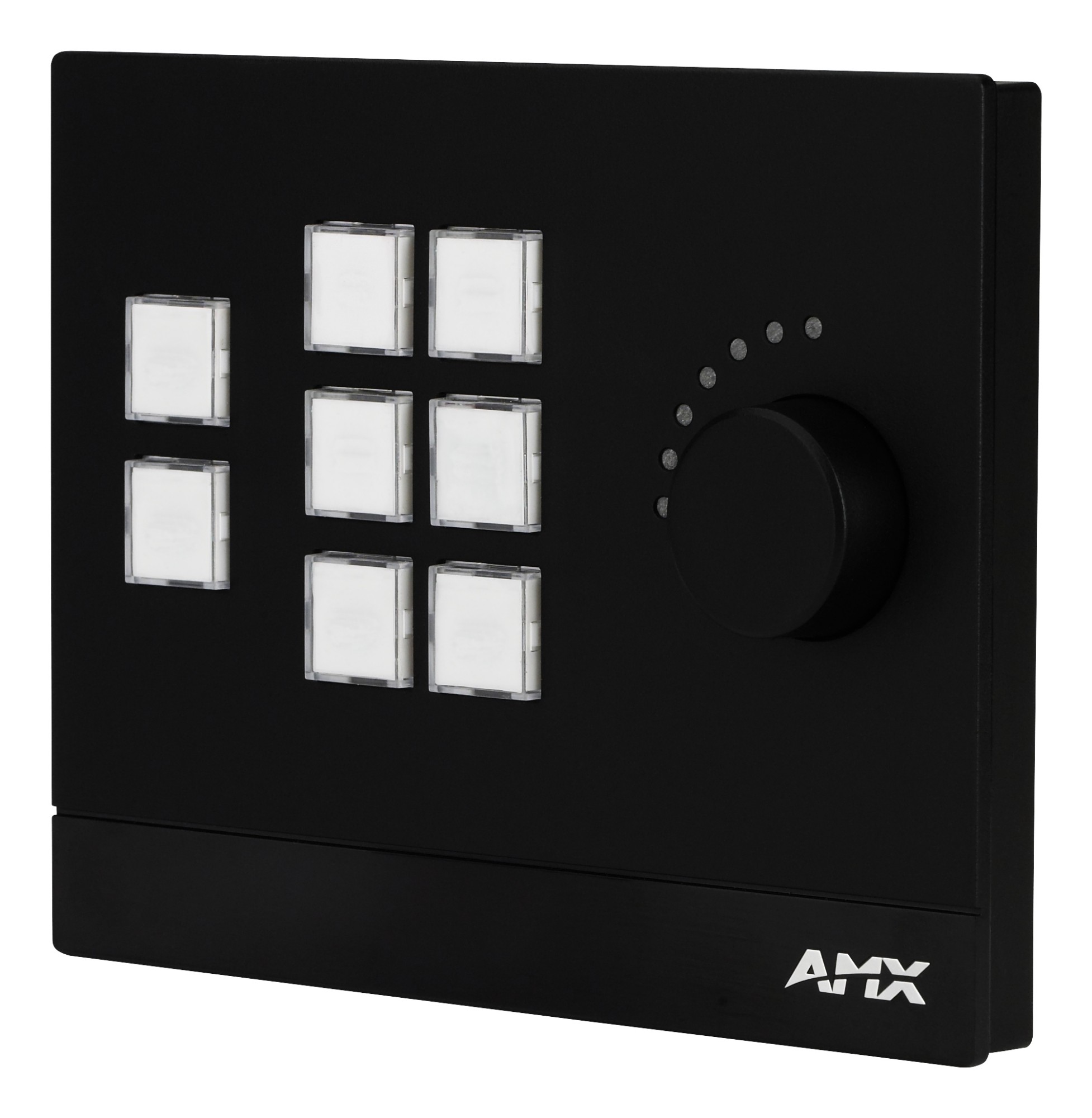

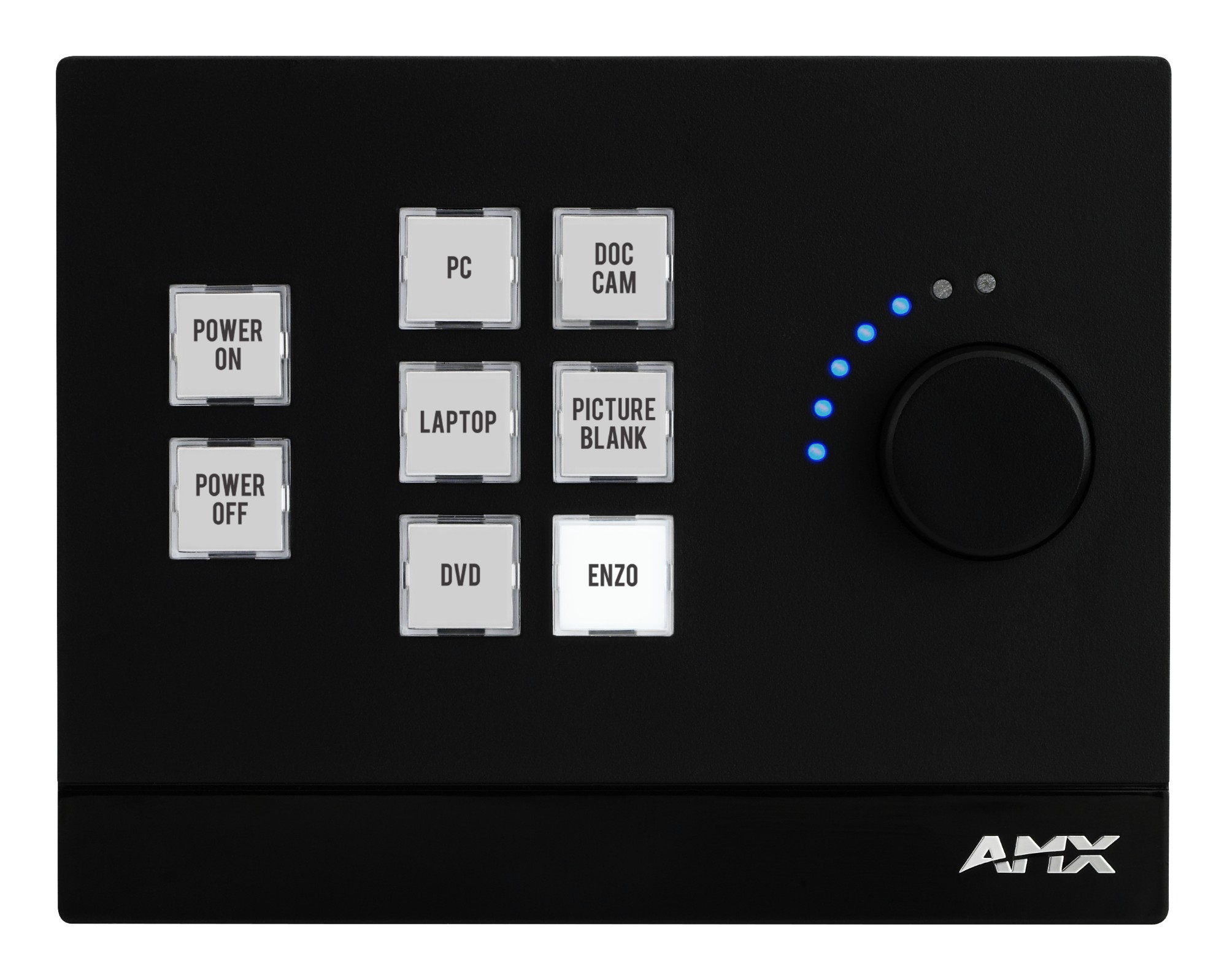

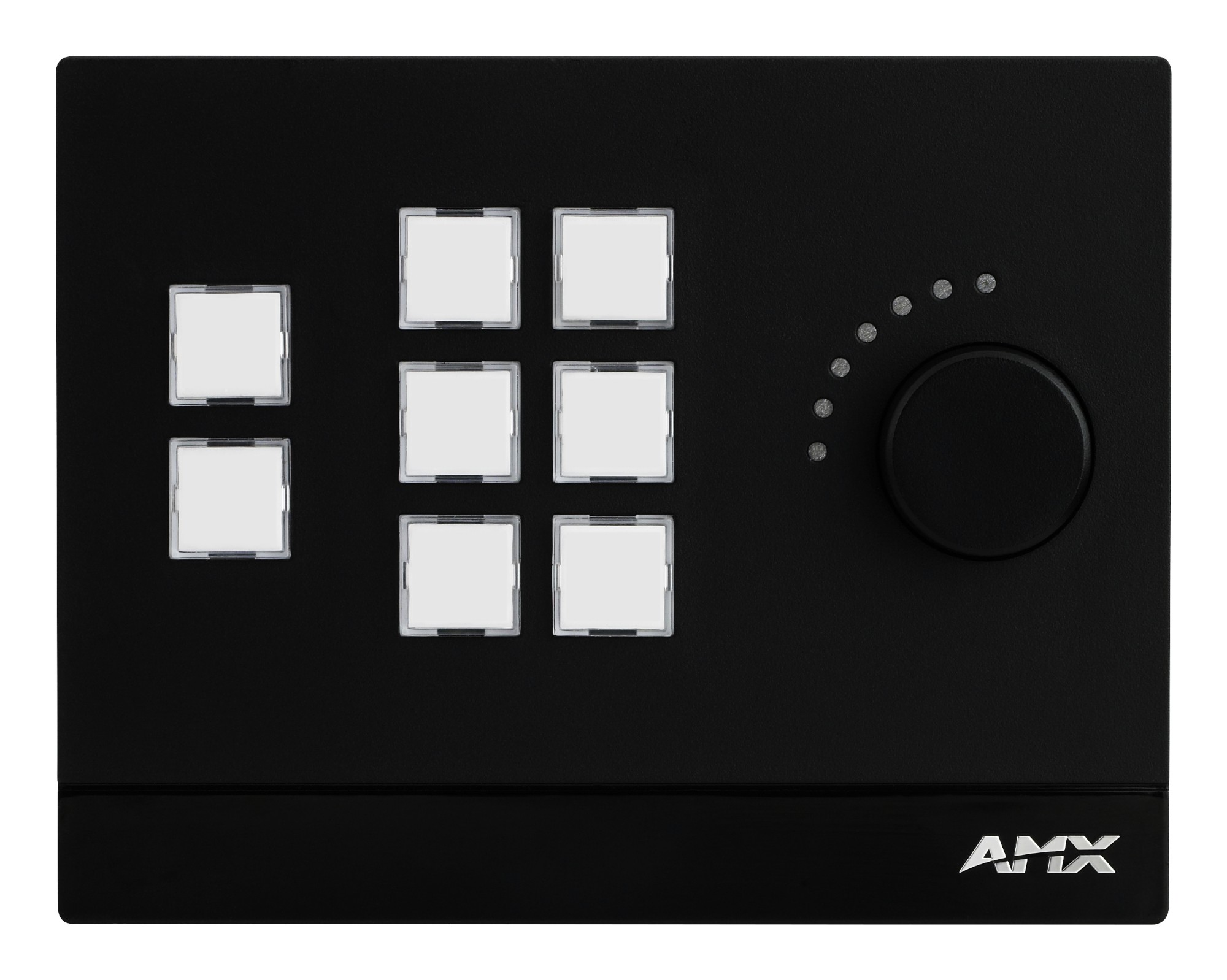

8-Button Massio Keypad with Knob (US, UK, EU), Black

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

MKP-108L-B MASSIO 8-BUTTON

7QL307 Register free see stock

Description

The MKP-108 / 8-Button Massio Keypad with Knob is a keypad-only version of the MCP-108 Massio ControlPad. The MKP-108 provides sleek Massio styling in any room, serving as a second user interface or as a primary UI in spaces that already contain a separate controller. The MKP-108 includes large, easy-to-read buttons and a smooth, responsive dial/knob in a stylish design that makes it simple for users to manage complex tasks with a single button press during meetings or classes. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.

COMMON APPLICATION

- Ideal for small spaces utilizing NetLinx control, providing the ability to utilize customized code and additional ports of NetLinx masters, while maintaining a consistent user experience as the RPM-enabled Massio ControlPads.
- Perfect for Massio rooms requiring a second user interface in the same form factor to act as a slave keypad to the Massio ControlPad.

FEATURES

- Consistent Massio Aesthetics & Form Factor – Provides consistent look-and-feel in existing installations with Massio, with the same models and sizes as the Massio ControlPads
- Massio Styling in Customized Rooms – Provides Massio-style UI in rooms that require a separate controller
- Connects Via Standard Protocols (PoE) – Simplifies cabling and installation by minimizing cable runs and eliminates the need for power at the keypad location

Specifications

Technical details
IlluminableYes
CertificationFCC CFR Title 47 Part 15 CE EN 55022 CE EN 55024 CE EN 60950-1 IEC 60950-1 UL 60950-1 C-Tick CISPR 22 IC CISPR 22 VCCI CISPR 22 RoHS WEEE
Number of buttons8 buttons
Weight & dimensions
Width6" (152.5 mm)
Depth1.02" (26 mm)
Height4.69" (119 mm)
Weight6.7 oz (190 g)
Power
Input voltage37 - 57 V
Power source typeDC
Design
Product colourBlack
