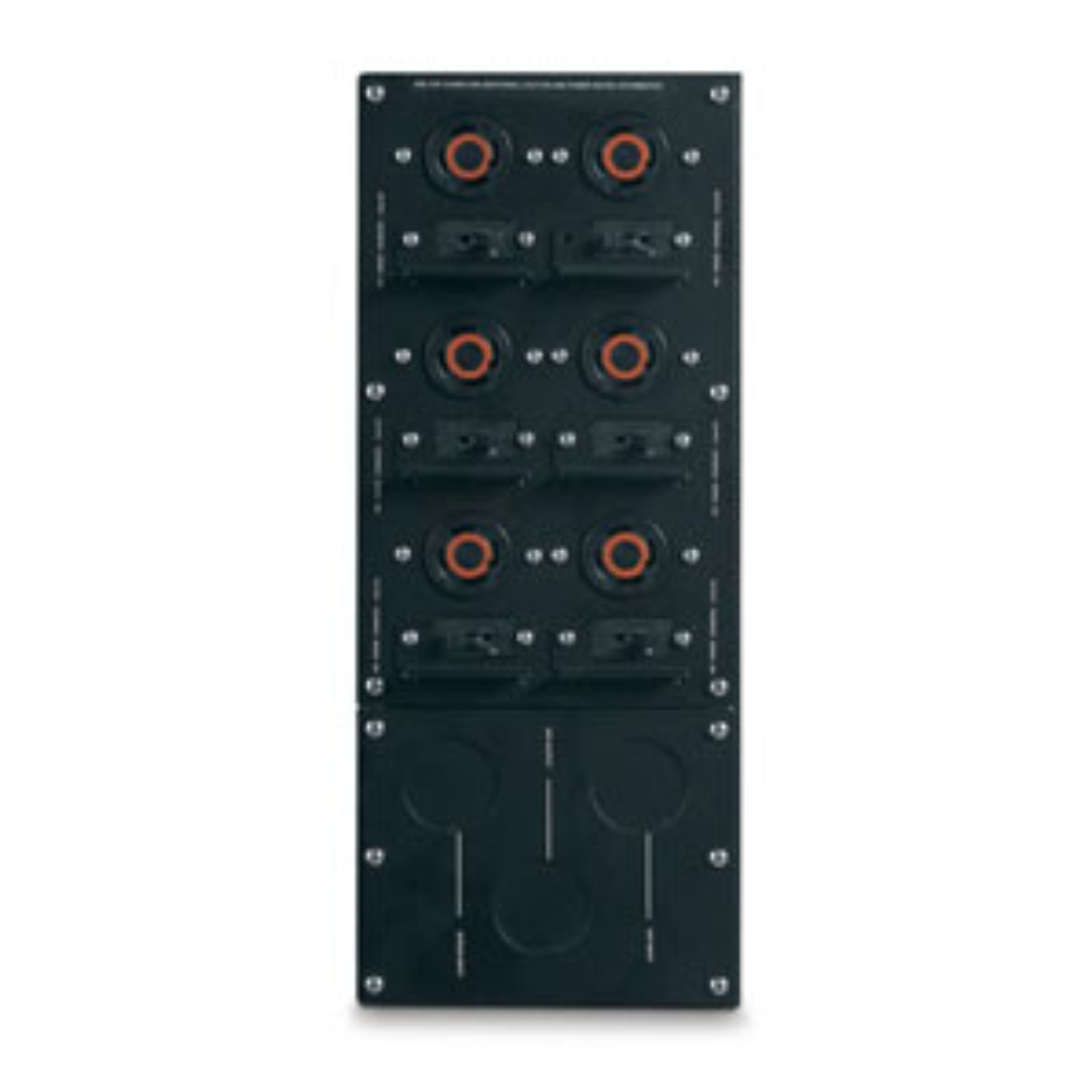

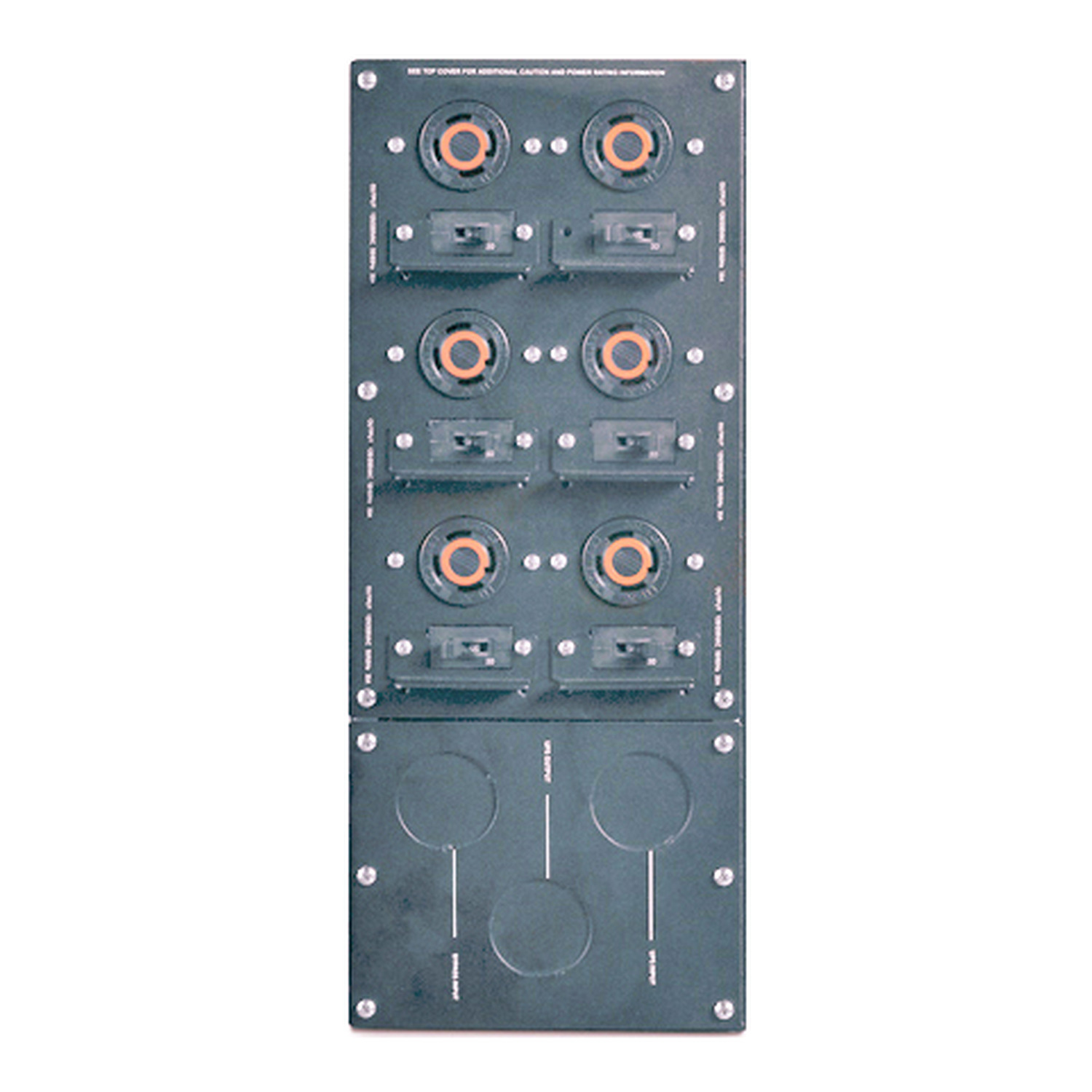

APC Service Bypass Panel- 200/208/240V |
APC-SBP16KRMP4U | |||
|
APC Service Bypass Panel- 200/208/240V |
1030951 |
Related Products
-
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs)
Description
19 inch Rack-Mountable
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Specifications
| Design | |
|---|---|
| Product colour | Black |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Ports & interfaces | |
| Output connections | 6x NEMA L14-30R |
| Input connection type | Hard Wire 3-wire (2PH + G), Hard Wire 4-wire (2PH+N+G) |
| Features | |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Power | |
| Nominal input voltage | 208 V |
| Maximum total current draw per phase | 100 A |
| Maximum input current per phase | 100 A |
| Load capacity | 20000 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 51.1 lbs (23.2 kg) |
| Width | 17" (432 mm) |
| Depth | 26.5" (673 mm) |
| Height | 7.01" (178 mm) |
| Package width | 24" (610 mm) |
| Package depth | 39" (991 mm) |
| Package height | 12" (305 mm) |
| Package weight | 74.1 lbs (33.6 kg) |
| Packaging data | |
| Package width | 24" (610 mm) |
| Package depth | 39" (991 mm) |
| Package height | 12" (305 mm) |
| Package weight | 74.1 lbs (33.6 kg) |
