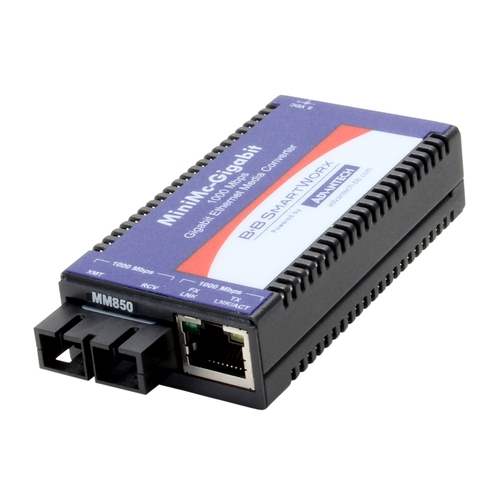

Advantech IMC-371-MM-PS network media converter 1000 Mbit/s 850 nm Multi-mode Black
- Brand: Advantech
- Category:
- SKU: IMC-371-MM-PS
- EAN: 0663069009331
Mini Media Converter,1000Mbps, Multimode 850nm, 550m, SC, AC adapter
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
MINIMC-GIGABIT TX/SX-MM850-SC |
7ZA153 | |||
|
|
MINIMC-GIGABIT TX/SX-MM850-SC |
Z22420 |
Description
The IMC-370 series offers the most compact media converters. They can extend the 10, 100 and 1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000Mbps auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370 series serves as a media and data rate converter. The IMC-370I supports plug-n-play functionality and auto negotiation and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or be installed in a centralize-powered media converter chassis.
Specifications
| Network | |
|---|---|
| Fiber optic connector | SC |
| Jumbo frames support | Yes |
| Jumbo frames | 10240 |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z |
| Duplex system | Full |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Housing material | Metal |
| Wavelength | 850 nm |
| Maximum transfer distance | 21653.5" (550 m) |
| Fiber mode structure | Multi-mode |
| Plug and Play | Yes |
| Internal | No |
| Performance | |
| Jumbo frames support | Yes |
| Plug and Play | Yes |
| Wavelength | 850 nm |
| Maximum transfer distance | 21653.5" (550 m) |
| Fiber mode structure | Multi-mode |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Indication | |
| LED indicators | Status |
| Design | |
| Housing material | Metal |
| LED indicators | Status |
| Product colour | Black |
| Certification | CE, FCC Class A, UL/cUL |
| Internal | No |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 1.2 A |
| AC input frequency | 50 - 60 Hz |
| Management features | |
| Plug and Play | Yes |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 1.8" (45.7 mm) |
| Depth | 3.35" (85.1 mm) |
| Weight | 11.2 oz (317 g) |
| Height | 0.831" (21.1 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Packaging content | |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC Class A, UL/cUL |
