Aiphone IX-DVF video intercom system 1.23 MP Silver
- Brand: Aiphone
- Category:
- SKU: IX-DVF
- EAN:
Flush Mounted IP Video Door Station
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
IX-DVF IP VIDEO DOOR STN,FLUSH17532 |
973128 | |||
|
IP Video Door Station, SIP Compatible, V |
AIP-IXDVF |
Description

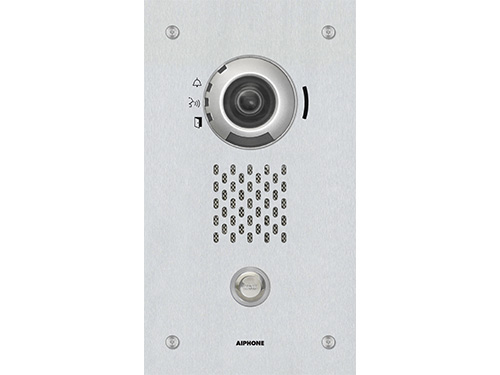

The IX-DVF is a flush mount, vandal resistant, and weather resistant IP Video Intercom, featuring a stainless-steel front cover. The IX-DVF is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video feeds through ONVIF and RTSP. The IX-DVF is compatible with all IX | IXG series devices.
Specifications
| Technical details | |
|---|---|
| International Protection (IP) code | IP65 |
| Wall mountable | Yes |
| Voice codecs | G.711alaw, G.711ulaw, G.722 |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| IK code | IK08 |
| Memory card slot | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Video codecs | H.264,AVC,M-JPEG |
| Number of buttons | 1 buttons |
| Backlight buttons | Yes |
| Speakerphone | Yes |
| Connectivity technology | Wired |
| Compliance certificates | UL |
| Camera | |
| PTZ control | Yes |
| Minimum illumination | 5 lx |
| Megapixel (approx.) | 1.23 MP |
| Sensor type | CMOS |
| Optical sensor size | 1/3" |
| Audio | |
| Voice codecs | G.711alaw, G.711ulaw, G.722 |
| Built-in speaker(s) | Yes |
| Design | |
| International Protection (IP) code | IP65 |
| IK code | IK08 |
| LED indicators | Yes |
| Product colour | Silver |
| Housing material | Stainless steel |
| Vandal-proof | Yes |
| Storage | |
| Memory card slot | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Network | |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS |
| Networking standards | IEEE 802.3af |
| Power | |
| Power consumption (typical) | 5.28 W |
| Outdoor unit power type | DC/PoE |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
| Width | 5.87" (149 mm) |
| Height | 10.4" (265 mm) |
| Packaging data | |
| Indoor unit included | No |
| Outdoor unit included | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
