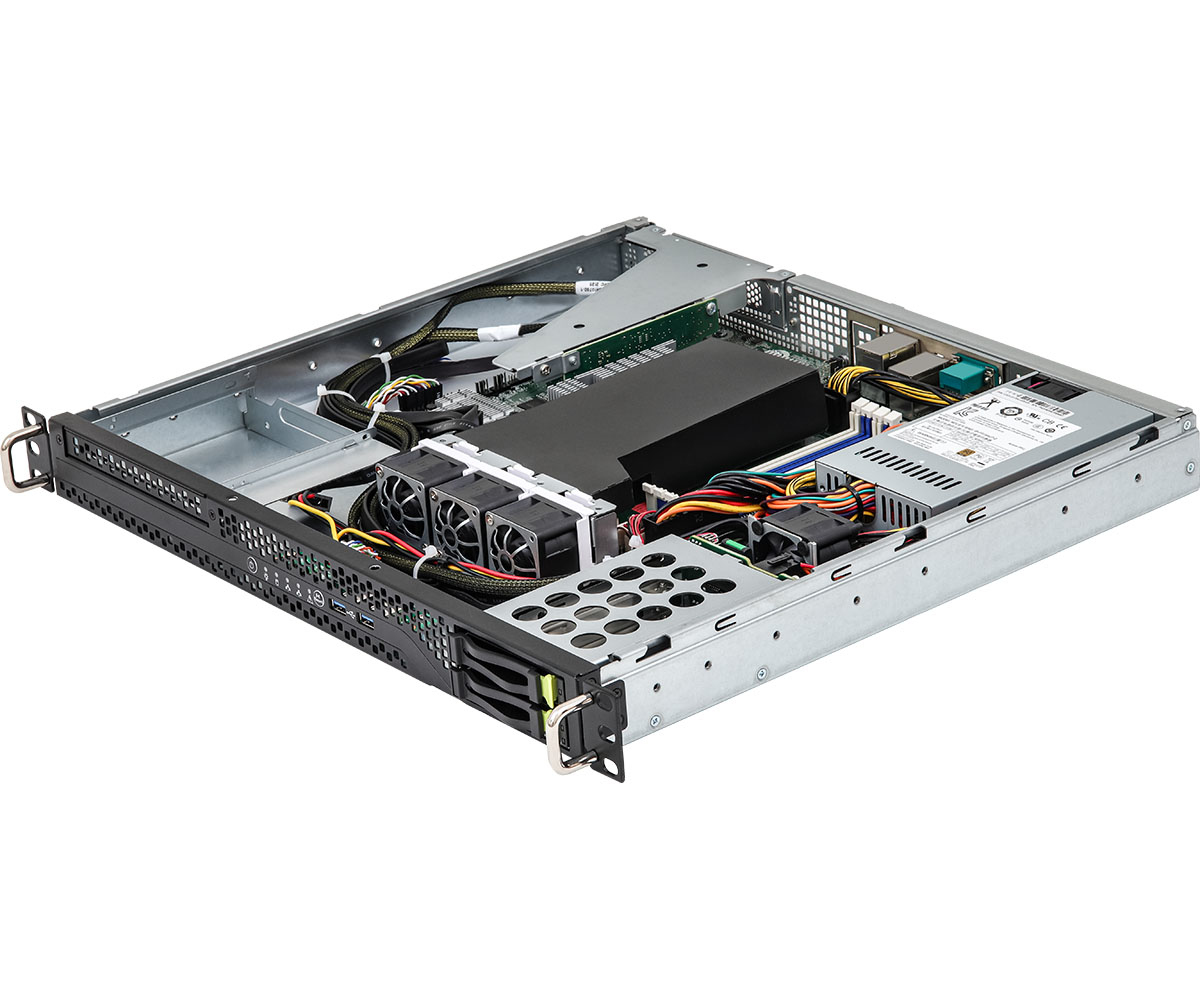

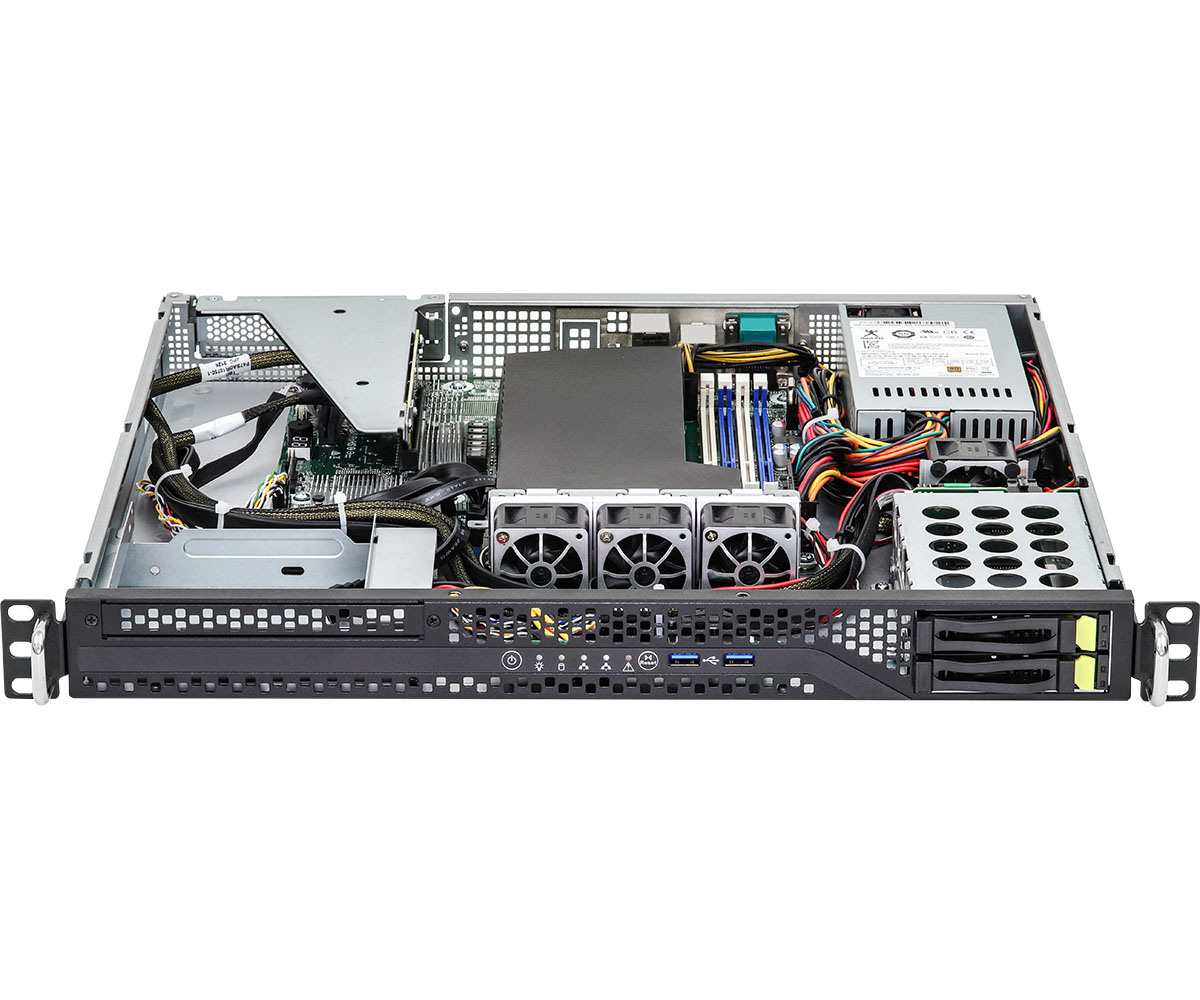

Asrock 1U2E-X570 server barebone AMD X570 Socket AM4 Rack (1U)
- Brand: Asrock
- Category:
- SKU: 1U2E-X570
- EAN: 4710483936241
1U Rackmount with, Supports AMD Ryzen 5000 Series, 4 DIMM slots (2DPC), 2 Hot-swap 2.5'', 2 RJ45, IPMI
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
ASRock SV 1U2E-X570 1U Ryzen5000 AM4 PGA1331 X570 2x2.5HS 315W PSU Retail |
259038 | |||
|
AsRock Rack 1U2E-X570 Server Barebone AMD Ryzen 5000 (PGA 1331) X570 1U 2 Hot-swap 2.5 SATA/NVMe |
6490162 |
Specifications
| Hard drive | |
|---|---|
| Hot-swap HDD bays | Yes |
| Management features | |
| PC health monitoring | CPU, Fan, Voltage |
| Processor | |
| Built-in processor | No |
| Processor socket | Socket AM4 |
| Number of processors supported | 1 |
| Motherboard chipset | AMD X570 |
| Processor manufacturer | AMD |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Reset button | Yes |
| On/off switch | Yes |
| Number of fans | 4 fan(s) |
| Fan diameter | 1.57" (4 cm) |
| LED indicators | Yes |
| Chassis type | Rack (1U) |
| Hot-swap fan module | Yes |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of DIMM slots | 4 |
| Non-ECC | Yes |
| Memory voltage | 1.2 V |
| ECC | Yes |
| Storage | |
| Number of storage drives supported | 3 |
| Number of 2.5" bays | 2 |
| Supported storage drive interfaces | Serial ATA |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive types | HDD & SSD |
| Performance | |
| PC health monitoring | CPU, Fan, Voltage |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| Network | |
| LAN controller | Intel I210, Realtek RTL8211E |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| Features | |
| PC health monitoring | CPU, Fan, Voltage |
| Technical details | |
| Number of storage drives supported | 3 |
| Number of 2.5" bays | 2 |
| Reset button | Yes |
| On/off switch | Yes |
| Number of fans | 4 fan(s) |
| Fan diameter | 1.57" (4 cm) |
| Chassis type | Rack (1U) |
| Indication | |
| LED indicators | Yes |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 2.0 |
| System Management BIOS (SMBIOS) version | 2.8 |
| Plug and Play | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply | 315 W |
| 80 PLUS certification | 80 PLUS Gold |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width | 15.5" (393.2 mm) |
| Height | 1.71" (43.5 mm) |
| Depth | 16.9" (430 mm) |
| Other features | |
| Reset button | Yes |
