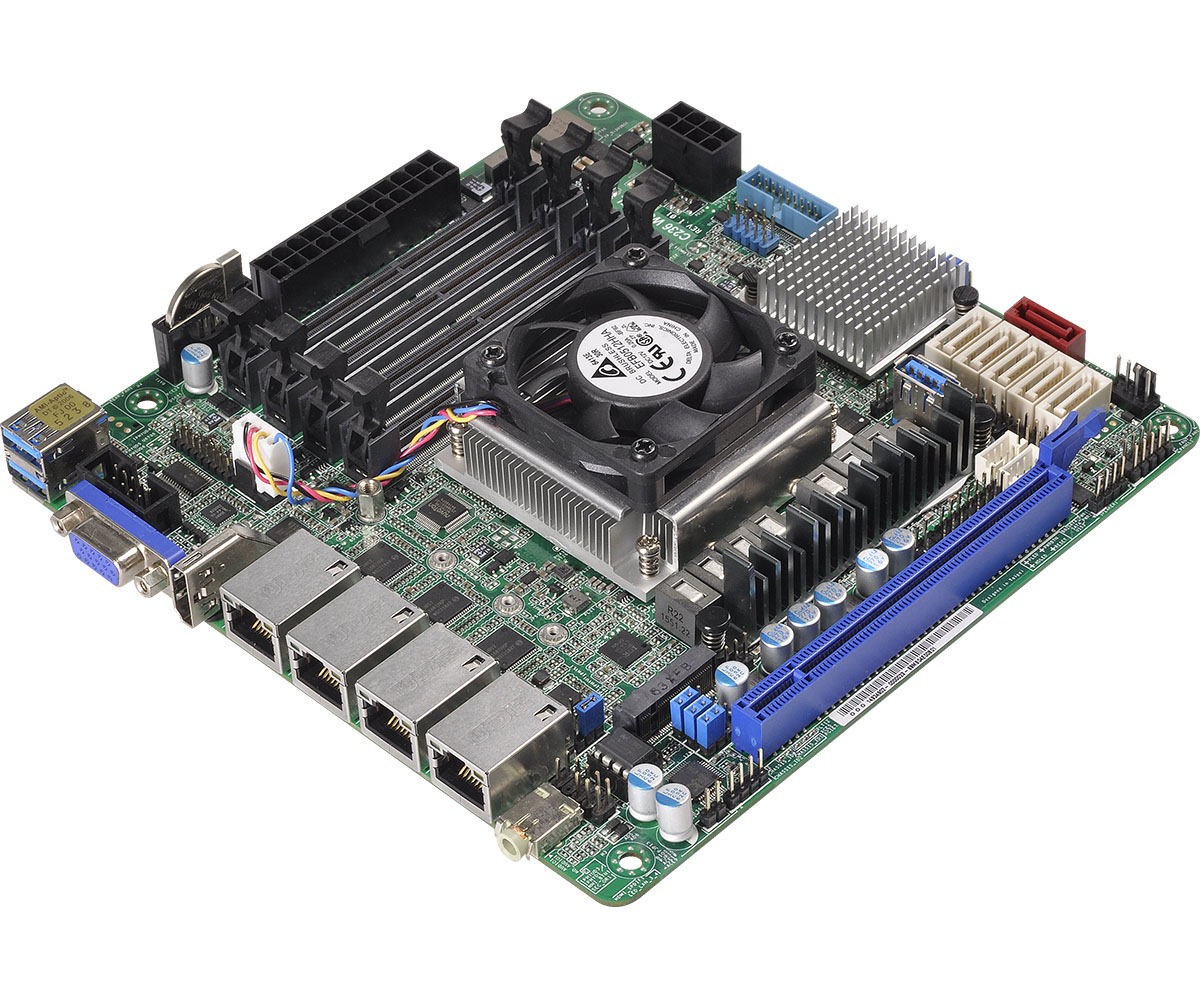

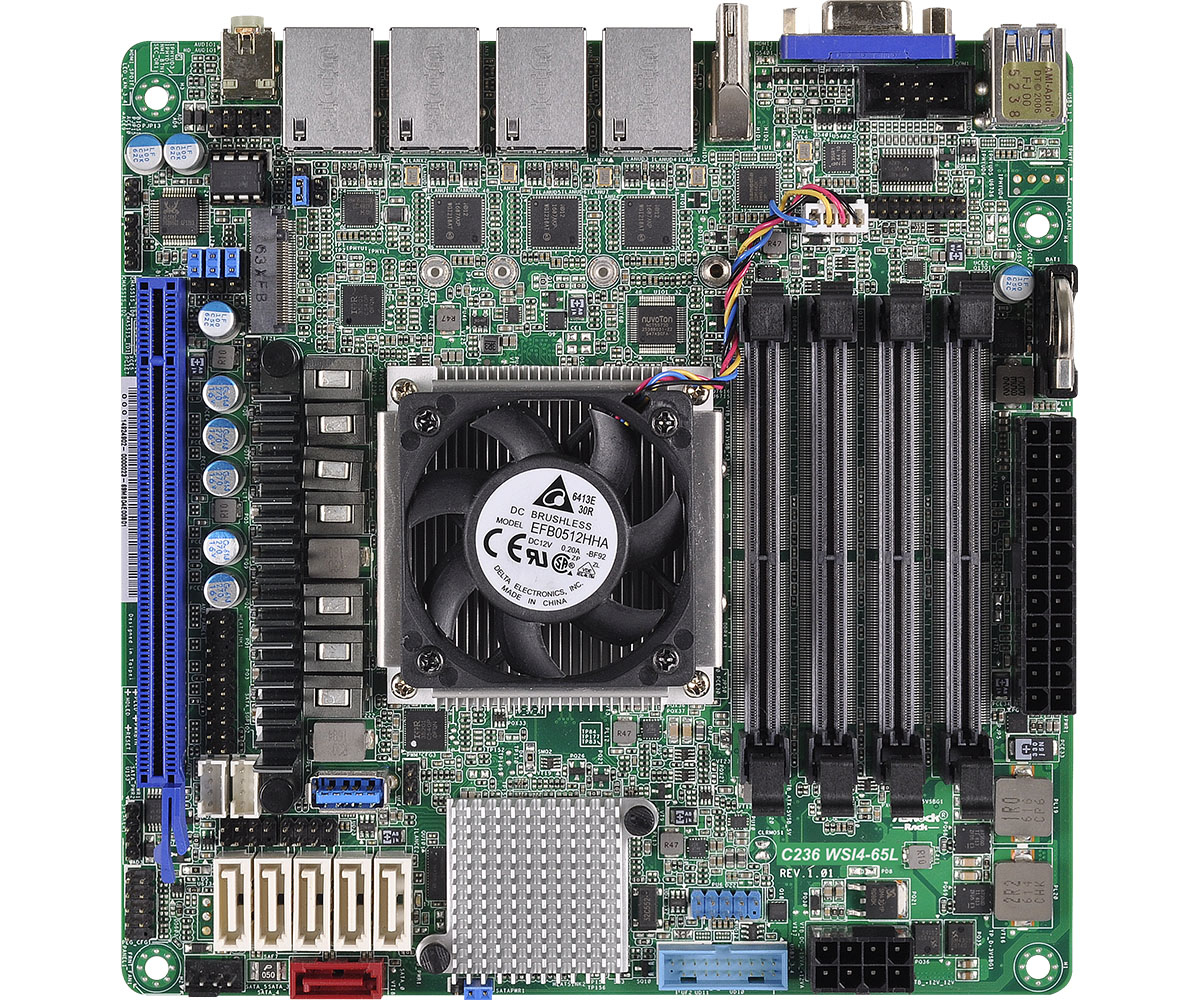

Asrock C236 WSI4-65L motherboard BGA 1440 mini ITX
- Brand: Asrock
- Category:
- SKU: C236WSI4-65L
- EAN: 4717677331714
BGA 1440, Mini ITX, 1000/100/10 Mbps, RJ45, D-sub, Realtek ALC887, 128Mb AMI UEFI Legal BIOS
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
ASRock MB C236WSI4-65L Xeon E3-1565Lv5 C236 DDR4 6xSATA3 1xPCIe3.0 x16 |
203491 |
Description
- Intel Xeon E3-1565L v5 Series Processors BGA
- Supports Dual channel DDR4 2133/1866 ECC/Non-ECC UDIMM max 64 GB
- Support 6 SATA3 by C236
- Supports 1x PCIe 3.0 x16
- Supports Intel i210*3+Intel i219 LM*1
- Supports Dual channel DDR4 2133/1866 ECC/Non-ECC UDIMM max 64 GB
- Support 6 SATA3 by C236
- Supports 1x PCIe 3.0 x16
- Supports Intel i210*3+Intel i219 LM*1
Specifications
| Technical details | |
|---|---|
| Motherboard form factor | mini ITX |
| Component for | PC |
| Performance | |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | BGA 1440 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | SO-DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133 MHz |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 6 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |

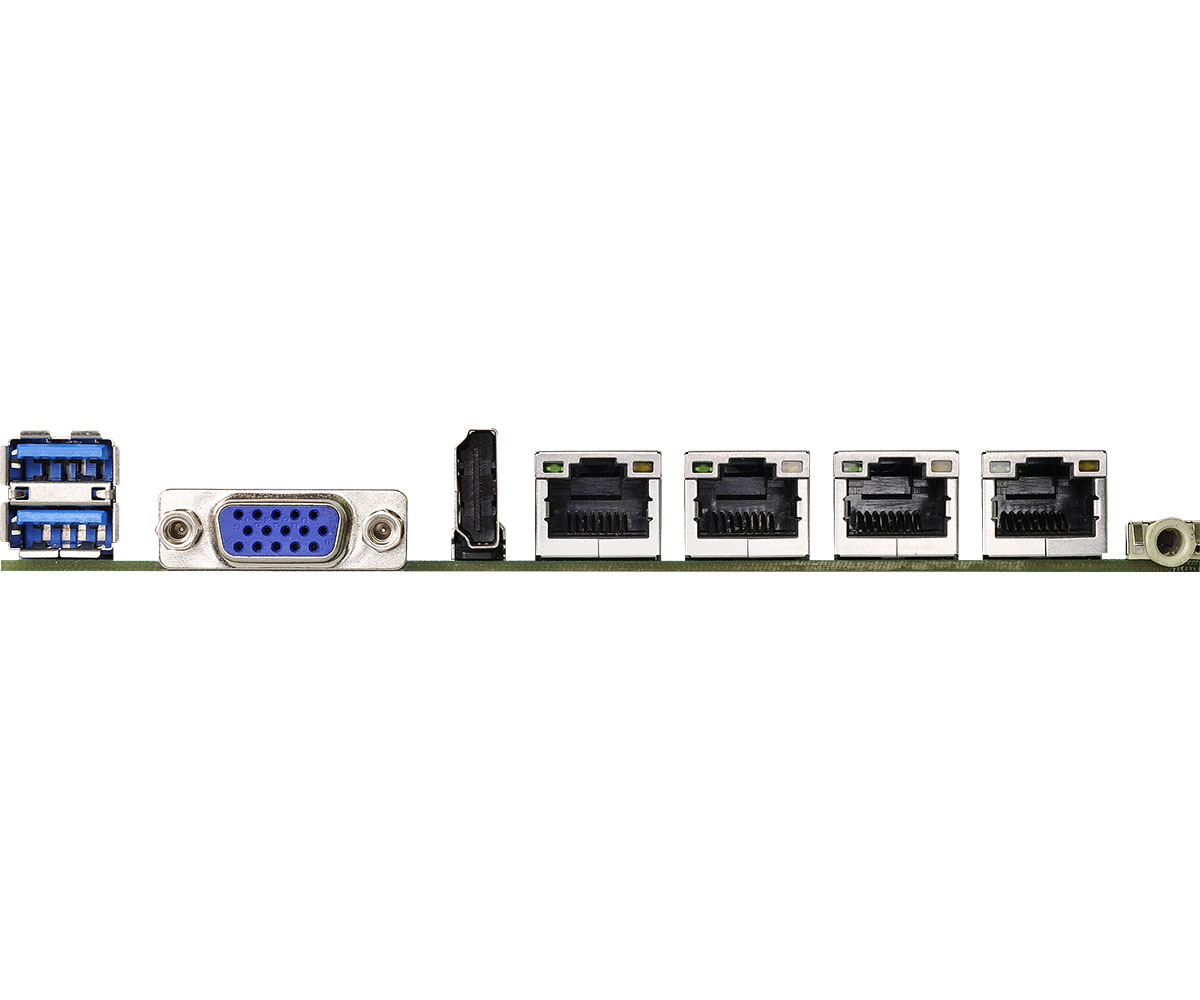

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Analog audio output | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Network | |
| Ethernet LAN | Yes |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel I219LM, Intel i210 |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 2.0 |
| Power | |
| Power source type | ATX |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
| Width | 6.7" (170.2 mm) |
| Depth | 6.7" (170.2 mm) |
| Other features | |
| Analog audio output | 1 |
