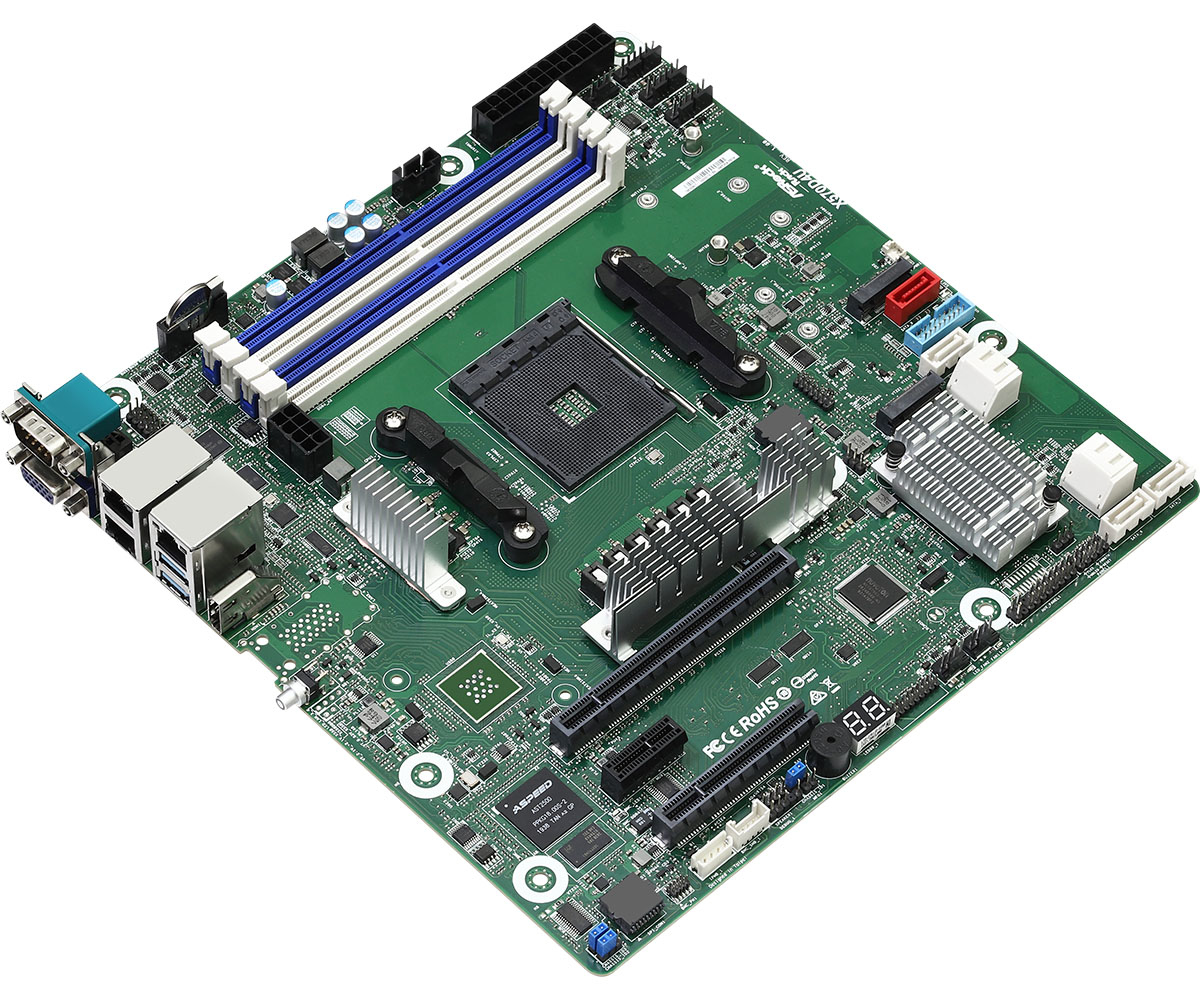

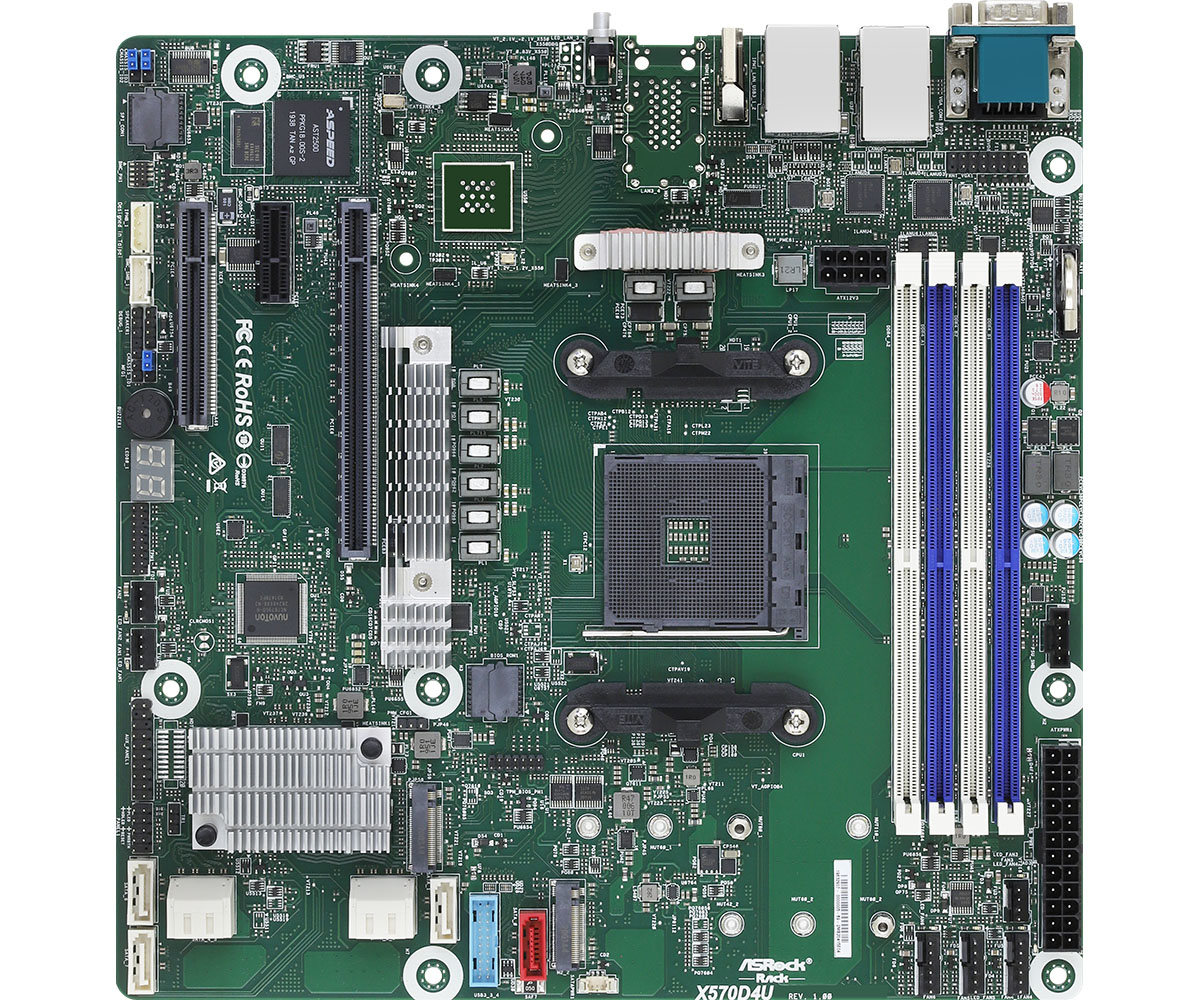

Asrock X570D4U motherboard AMD X570 Socket AM4 micro ATX
- Brand: Asrock
- Category:
- SKU: X570D4U
- EAN: 4710483932618
Chipset AMD X570, AM4 PGA 1331, 4 DIMM, max 32 GB, SATA III, M.2, ASPEED AST2500, HDMI, VGA, 2 x USB 3.2, GbE, AMI UEFI BIOS, micro-ATX, 244 x 244 mm
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
ASRock SV MB X570D4U AMD AM4 PGA1331 X570 DDR4 32GB PCIE SATA HDMI mATX Retail |
246987 | |||
|
ASROCK RACK X570D4U MICRO-ATX SERVER MOTHERBOARD AMD AM4 PGA 1331 DUAL GLAN |
6360637 |
Specifications
| Technical details | |
|---|---|
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Supported processor sockets | Socket AM4 |
| Motherboard form factor | micro ATX |
| Performance | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM4 |
| Motherboard form factor | micro ATX |
| Processor | |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| Non-ECC | Yes |
| Supported memory clock speeds | 2666,3200 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Graphics | |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| Internal I/O | |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| TPM connector | Yes |
| Number of SATA connectors | 12 |
| Number of SATA III connectors | 12 |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |

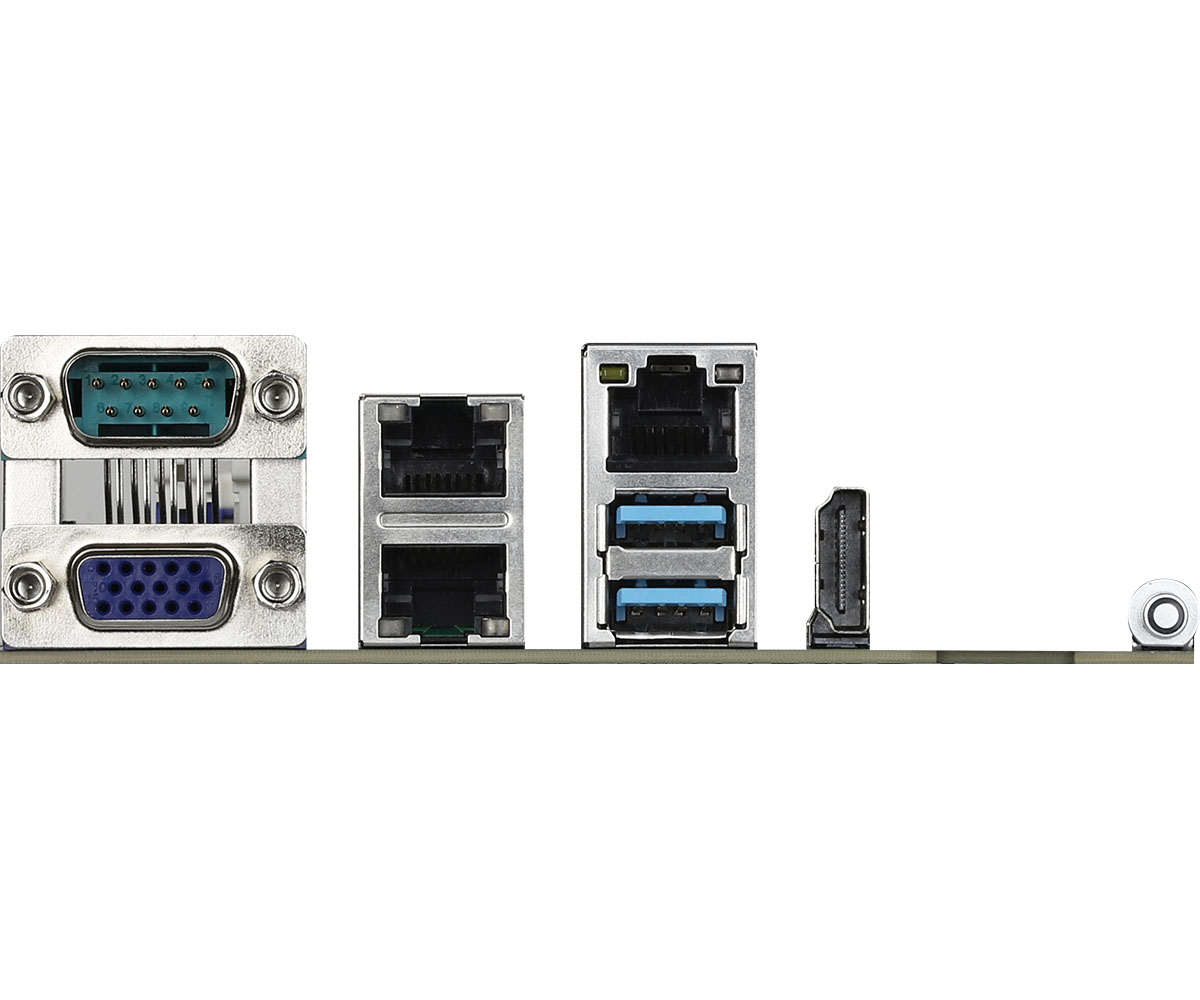

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Network | |
| Ethernet LAN | Yes |
| LAN controller | Intel I210, Realtek RTL8211E |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Supported processor sockets | Socket AM4 |
| Motherboard form factor | micro ATX |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| PCI Express x8 slots | 1 |
| PCI Express x1 slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| ACPI version | 2.0 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Video | |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 9.61" (244 mm) |
| Depth | 9.61" (244 mm) |
