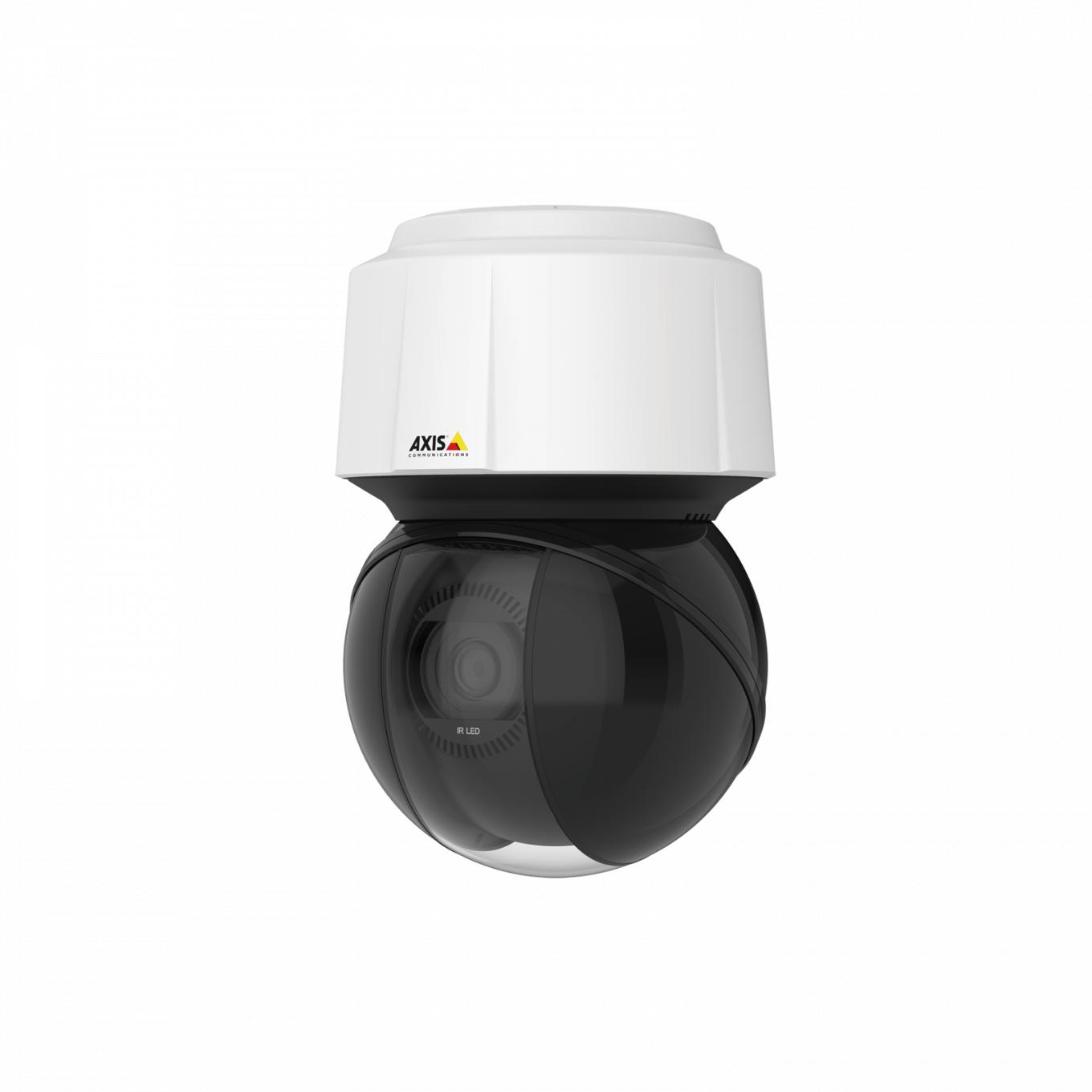

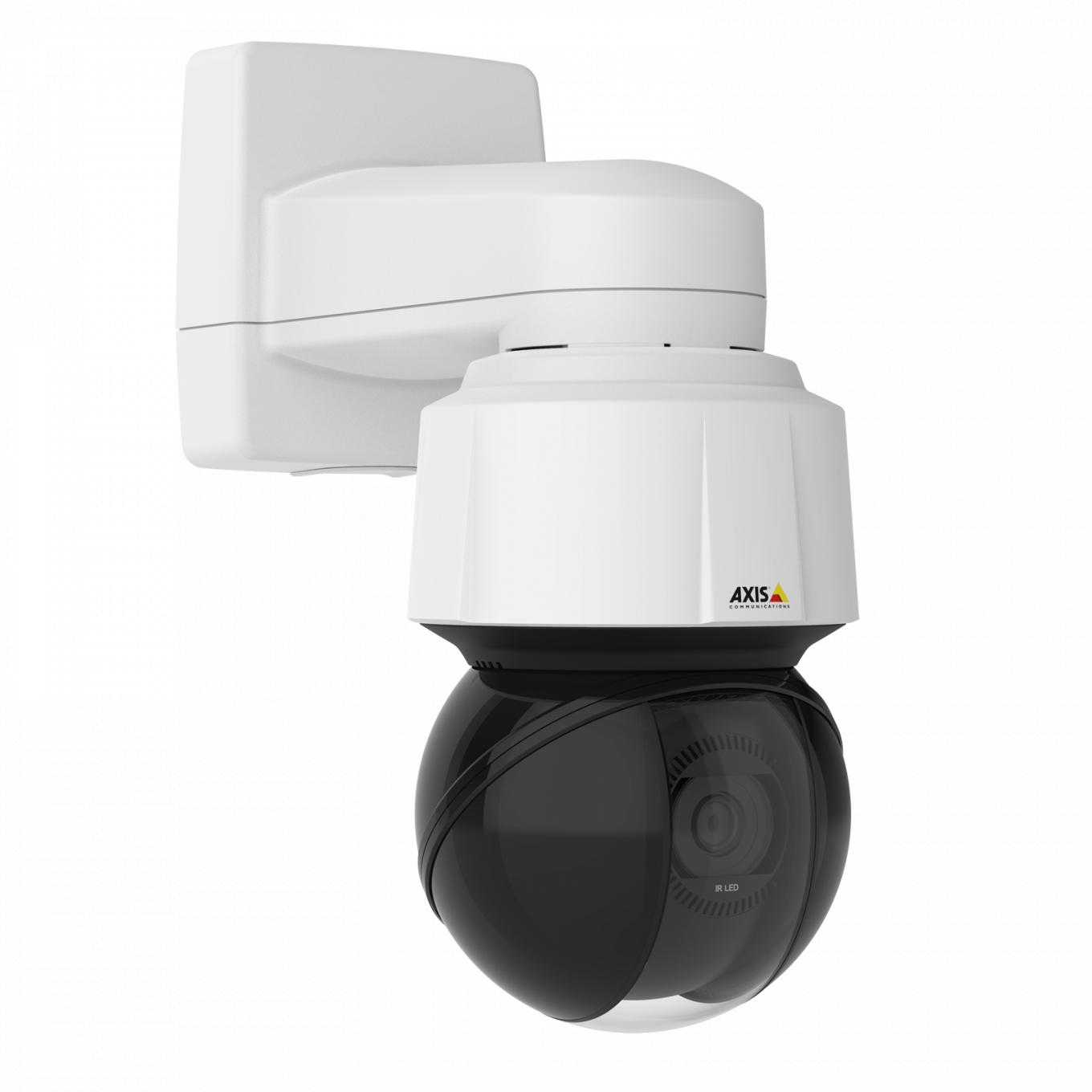

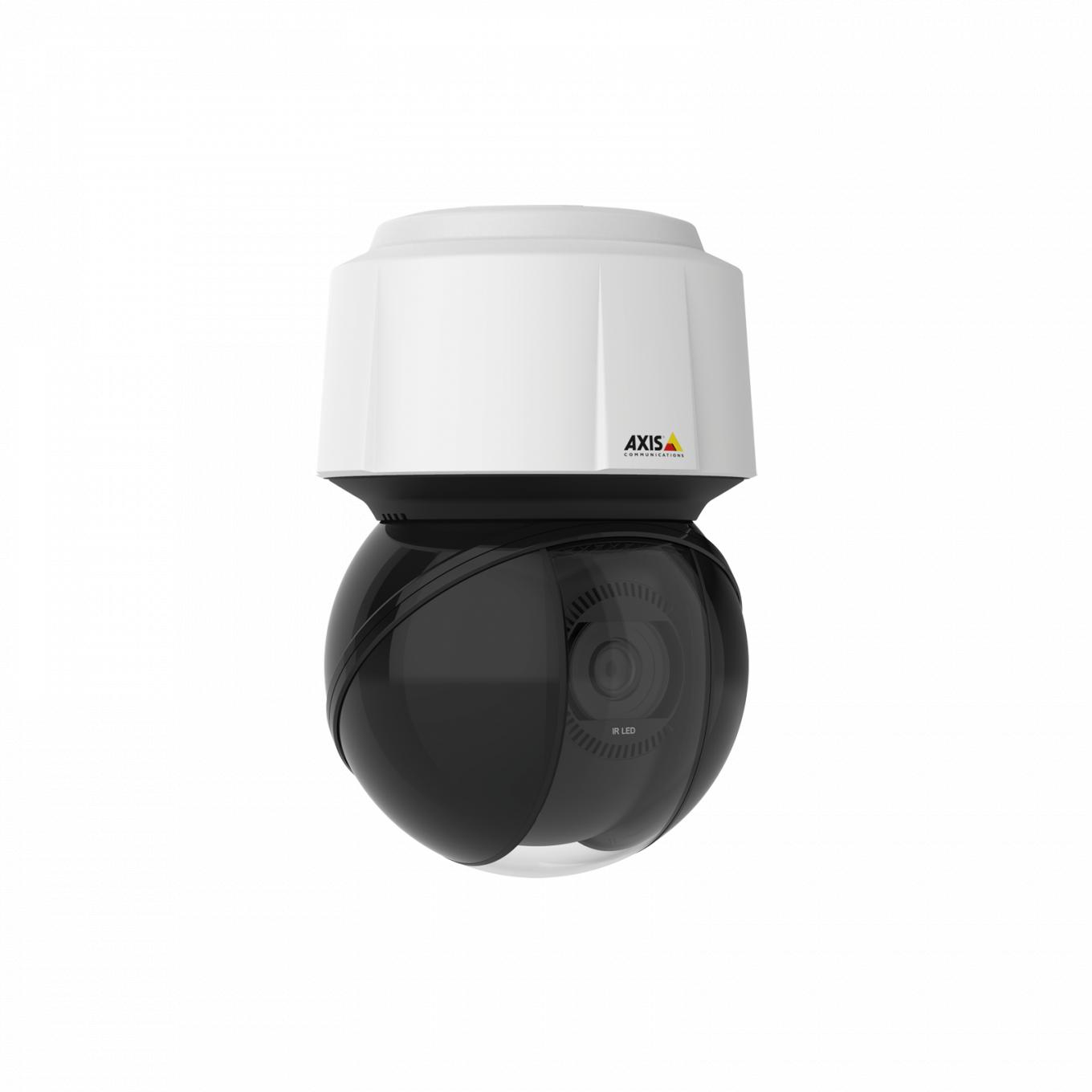

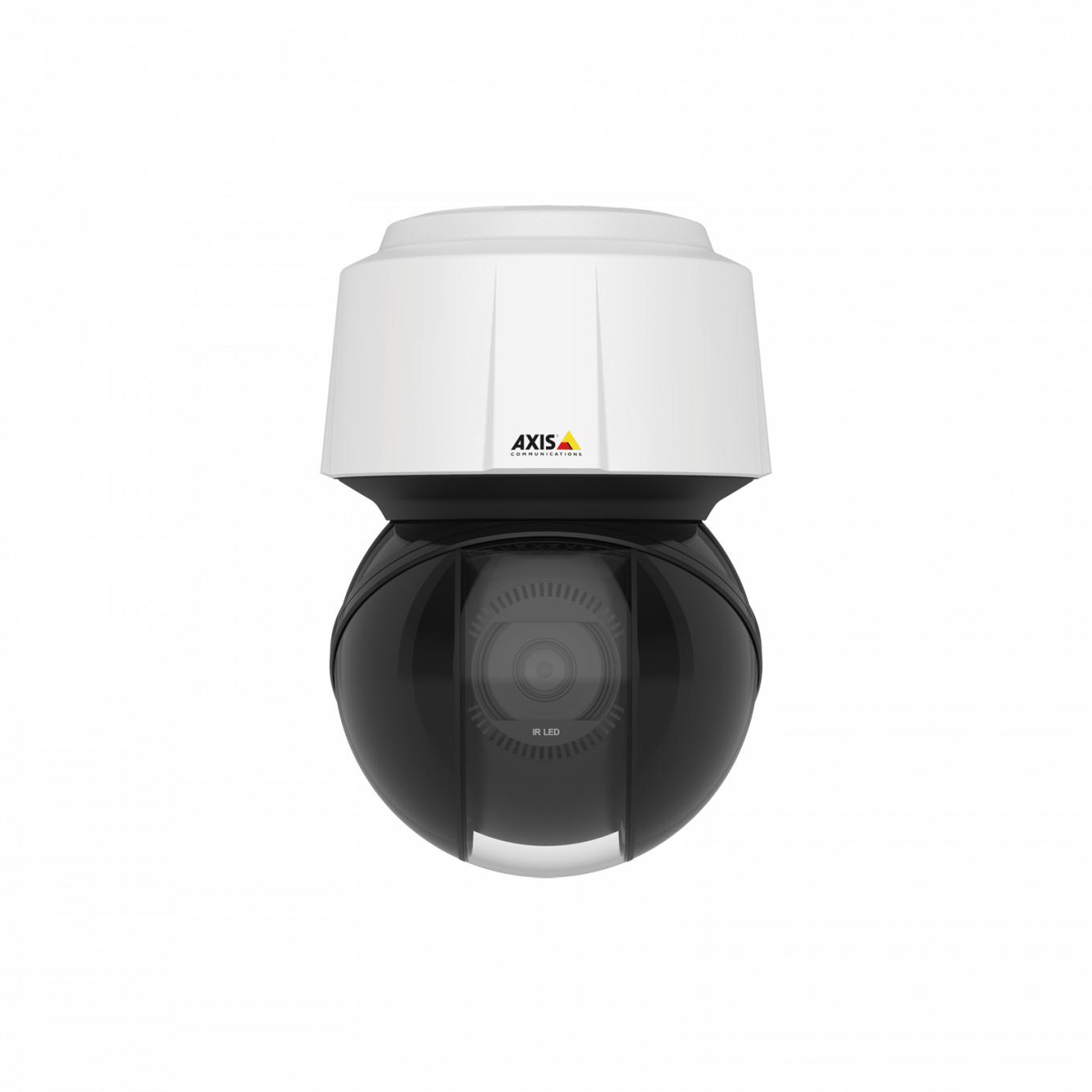

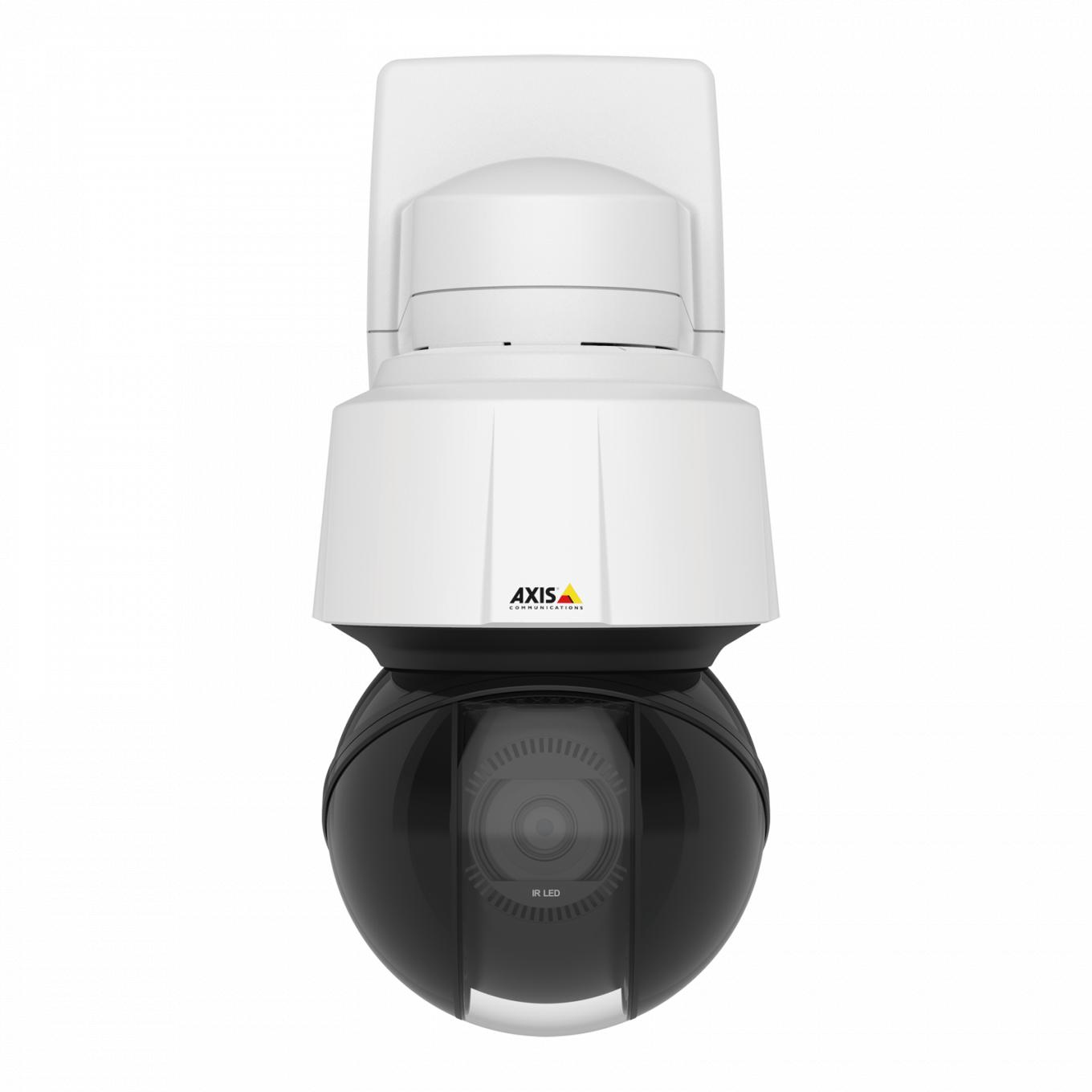

Axis 01959-004 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
- Brand: Axis
- Category:
- SKU: 01959-004
- EAN: 7331021069794
Q6135-LE 1/2.8”,CMOS, 1920x1080p (HDTV 1080p), IK08, IK10, IP66, 1024 MB RAM, 512 MB Flash
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
AXIS Q6135-LE OFFERS HDTV1080P WITH 32X OPTICAL ZOOM60HZ US-VERSION |
10107801 | |||
|
|
AXIS Q6135-LE OFFERS HDTV1080P WITH 32X OPTICAL ZOOM60HZ US-VERSION |
10107801-CONEXION | |||
|
|
AXIS Q6135-LE OFFERS HDTV1080P WITH 32X OPTICAL ZOOM60HZ US-VERSION |
10107801-DIS | |||
|
|
AXIS Q6135-LE OFFERS HDTV1080P WITH 32X OPTICAL ZOOM |
10107801-W | |||
|
AXIS Q6135-LE 2MP 32X ZOOM PTZ |
8LP893 | |||
|
AXIS Q6135-LE |
AXC-01959004 | |||
|
Q6135-LE NTWK CAM 1080P 32X PTZ |
12289651 |
Description
AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream with support for H.264 and H.265.
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Processor model | ARTPEC-7 |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| IK code | IK08, IK10 |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66 |
| Housing material | Aluminum, Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0.01 lx |
| Tilt angle range | 20 - 90° |
| Tilt speed | 500 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 700 °/sec |
| Camera shutter speed | 1/66500 - 2 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 58.3 - 2.4° |
| Lens viewing angle, vertical | 34.9 - 1.3° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/2.8" |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 4 |
| Auto focus | Yes |
| Minimum aperture number | 1.4 |
| Zoom capability | Yes |
| Optical zoom | 32x |
| Digital zoom | 12x |
| Focal length range | 4.3 - 137.6 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 250 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 320 x 180, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Audio | |
| Audio system | 2-way |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Syslog |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Video compression formats | H.264, H.265, M-JPEG |
| Type | IP security camera |
| Form factor | Dome |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Product colour | Black, White |
| Mounting type | Ceiling |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Progressive scan | Yes |
| Doesn't contain | PVC |
| Warranty period | 5 year(s) |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Material | |
| Housing material | Aluminum, Polycarbonate (PC) |
| Power | |
| Power source type | AC, PoE |
| Power consumption (max) | 51 W |
| Power consumption (Power over Ethernet (PoE)) | 37 W |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 13.5 W |
| Certificates | |
| International Protection (IP) code | IP66 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 9.49" (241 mm) |
| Diameter | 6.5" (16.5 cm) |
| Weight | 6.61 lbs (3 kg) |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
