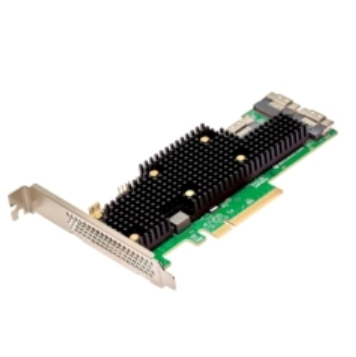

Broadcom eHBA 9600-24i interface cards/adapter Internal SAS, SATA

Active, x8 lane PCI Express 4.0, SAS/SATA: 240; NVMe: up to 32

Trade Prices

Distributor Product SKU Stock Updated Price
ASI Corp

CC 05-50111-01 9600-24i 24PT Int.24Gb s Tri mode SATA+SAS+PCIe RTL

 266402 Register free see stock
Ingram Micro

BROADCOM EHBA 9600-24I

 SG6414
TD Synnex

9600-24i SINGLE KIT, NA NA A 00 F L

 7533199

Description

The 9600-24i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9600-24i eHBA delivers the performance and scalability needed by critical applications.

Specifications

Ports & interfaces
InternalYes
Output interfaceSAS, SATA
Host interfacePCIe
NVMeYes
Expansion card form factorFull-height / Low-profile
Expansion card standardPCIe 4.0
Technical details
Plug and PlayYes
Data transfer rate (max)12 Gbit/s
Quantity per pack1 pc(s)
Compliance certificatesRoHS, WEEE
Performance
Plug and PlayYes
Data transfer rate (max)12 Gbit/s
Product colourGreen, Silver
NVMeYes
S.M.A.R.T. supportYes
Certificates
CertificationAustralia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)
Colour
Product colourGreen, Silver
Design
Mean time between failures (MTBF)5000000 h
InternalYes
Product colourGreen, Silver
CertificationAustralia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)
Features
Plug and PlayYes
Data transfer rate (max)12 Gbit/s
S.M.A.R.T. supportYes
NVMeYes
Power
Power consumption (typical)17 W
Operational conditions
Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)5 - 90%
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Server operating systems supportedSUSE Linux Enterprise Server
Other operating systems supportedYes
Weight & dimensions
Width6.13" (155.6 mm)
Depth2.71" (68.9 mm)
Packaging data
Quantity per pack1 pc(s)
Logistics data
Quantity per pack1 pc(s)
Other features
Channels quantity24 channels
