Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
, MOUNT, MEDIUM DUAL STUD, SWING ARM WALL MOUNT, 18" EXTENSION |
TS318TU | |||
|
Med Swing Arms DualStud 32 65" |
TS318TU | |||
|
MEDIUM SWING ARMS, DUAL STUD |
CHI-TS318TU | |||
|
MEDIUM SWING ARMS/DUAL STUD |
3045506 |
Description

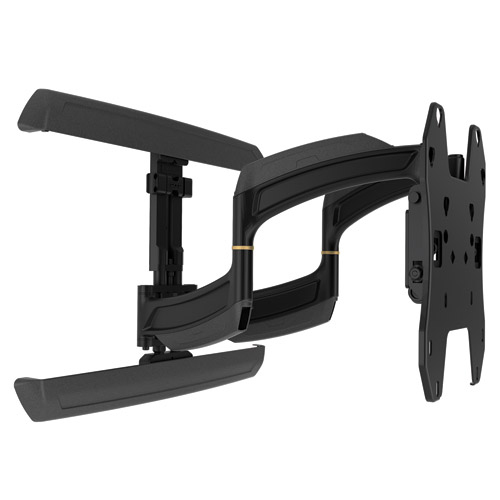

A lightweight, low-profile full-motion wall mount for TVs 26-52”. Easily installs with one person by mounting the top rail and sliding on the assembly.
Features

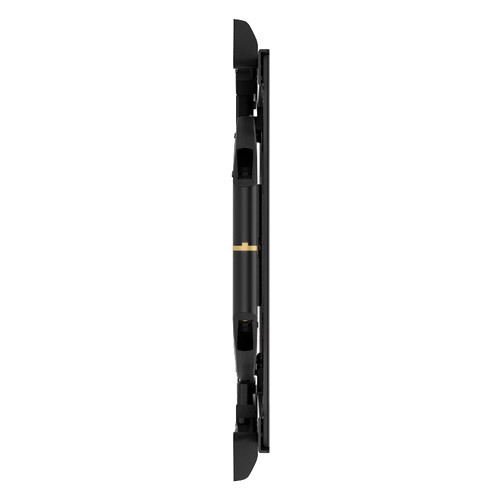

- Ultra Low Profile Sleek design collapses to 1.3” (33 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 18” (457 mm) Full extension maximizes viewing potential.
- Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles.
- Centerless™ Lateral Shift Post-installation lateral shift allows up to 16”(406 mm) of adjustment for limitless centering capability.
- Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
Features
- Ultra Low Profile Sleek design collapses to 1.3” (33 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 18” (457 mm) Full extension maximizes viewing potential.
- Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles.
- Centerless™ Lateral Shift Post-installation lateral shift allows up to 16”(406 mm) of adjustment for limitless centering capability.
- Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 26" |
| Panel mounting interface | 100 x 100,200 x 200,600 x 400 |
| Minimum VESA mount | 3.94 x 3.94" (100 x 100 mm) |
| Maximum VESA mount | 23.6 x 15.7" (600 x 400 mm) |
| Maximum screen size | 52" |
| Maximum weight capacity | 75 lbs (34 kg) |
| Ergonomics | |
| Tilt angle range | 15 - -15° |
| Swivel angle range | -90 - 90° |
| Distance to the wall (min) | 5" (12.7 cm) |
| Distance to the wall (max) | 18.2" (46.2 cm) |
| Technical details | |
| Quantity | 1 |
| Distance to the wall (min) | 5" (12.7 cm) |
| Distance to the wall (max) | 18.2" (46.2 cm) |
| Product colour | Black |
| Mounting type | Wall |
| Design | |
| Certification | UL |
| Product colour | Black |
| Housing material | Metal |
| Certificates | |
| Certification | UL |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Width | 22.6" (574 mm) |
| Depth | 1.3" (33 mm) |
| Height | 17.2" (437 mm) |
| Packaging data | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Other features | |
| Mounting type | Wall |
| Quantity | 1 |
| Screen size compatibility | 26 - 52" |
