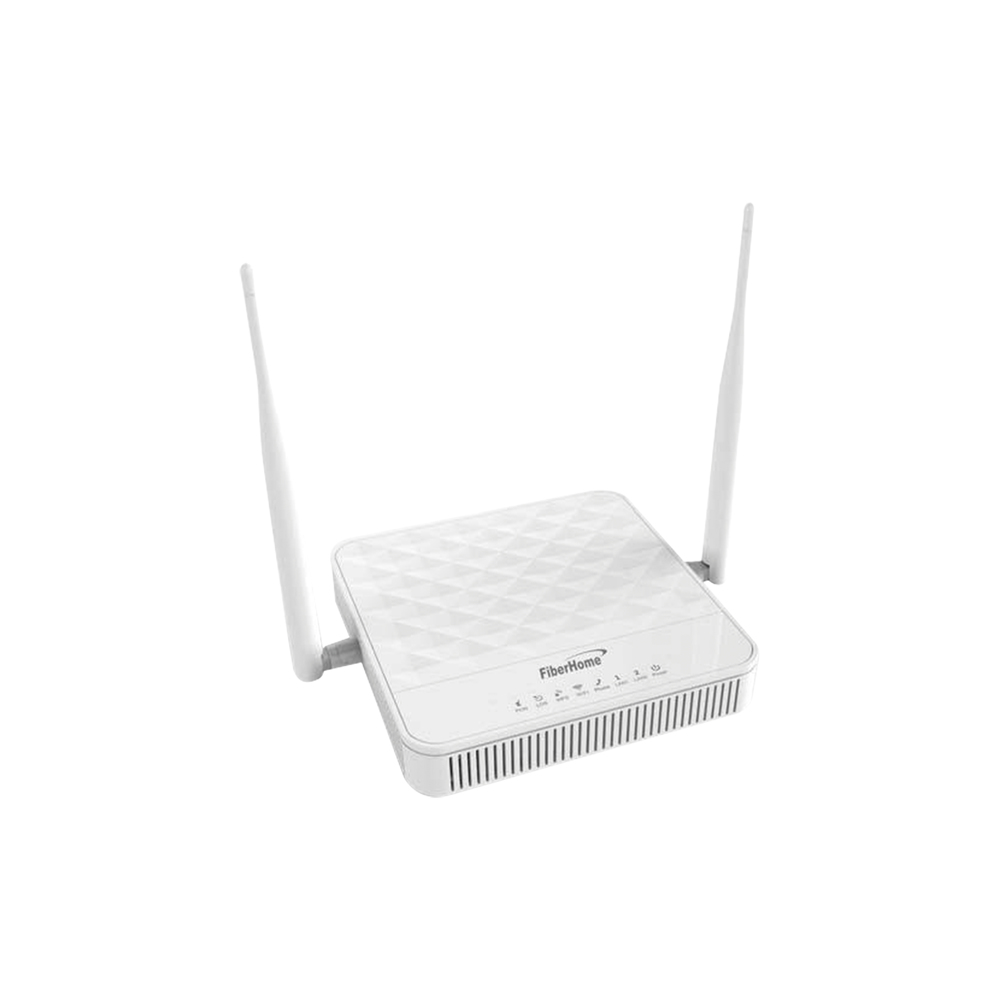

FiberHome AN5506-02-FG wired router Gigabit Ethernet White
- Brand: FiberHome
- Category:
- SKU: AN5506-02FG
- EAN:
FiberHome AN5506-02-FG, Ethernet WAN, Gigabit Ethernet, White
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
- F. ONU GPON WIFI AN5506-02FG 1GE+1FE+1POTS+1FXS 5DBI FBH UPC |
AN5506-02FG |
Description
FiberHome AN5506-02-FG. Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Firewall security: Denial-of-Service (DoS) protection. Cables included: LAN (RJ-45). Product color: White, LED indicators: LAN, Status. Antenna type: External, Antenna gain level (max): 5 dBi
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Network | |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Frequency range | 2.4 - 2.4835 GHz |
| Data transfer rate | 300 Mbit/s |
| Ethernet LAN | Yes |
| Static route | No |
| Ethernet interface type | Gigabit Ethernet |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Ports & interfaces | |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Fast Ethernet (copper) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Technical details | |
| On/off switch | Yes |
| LED indicators | LAN, Status |
| Product colour | White |
| Security | |
| Firewall | Yes |
| Firewall security | Denial-of-Service (DoS) protection |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Cables included | LAN (RJ-45) |
| Design | |
| On/off switch | Yes |
| LED indicators | LAN, Status |
| Product colour | White |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
| Power | |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 1 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply | 6.5 W |
| Power consumption (typical) | 3.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 5.67" (144 mm) |
| Depth | 5.67" (144 mm) |
| Height | 1.1" (28 mm) |
| Weight | 8.47 oz (240 g) |
| Packaging data | |
| AC adapter included | Yes |
| Manual | Yes |
| Cables included | LAN (RJ-45) |
| Other features | |
| Data transfer rate | 300 Mbit/s |
