Description
Designed by electricians. Engineered by Fluke

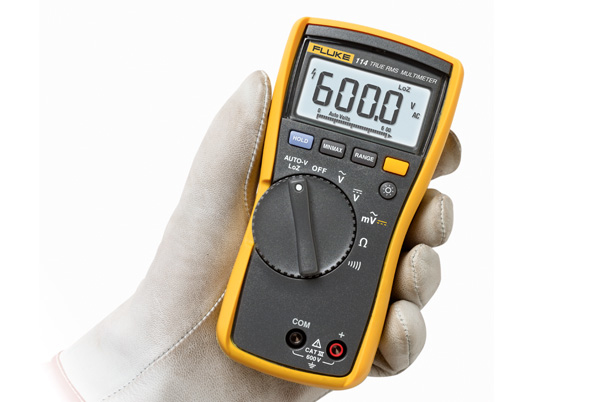

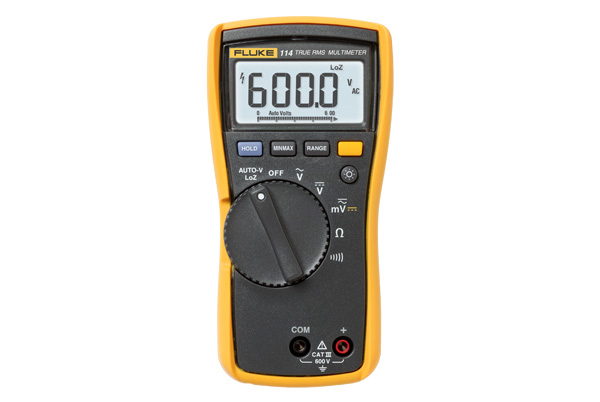

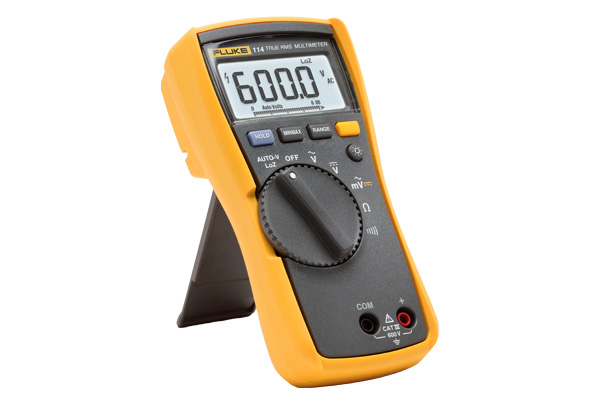

Designed for easy one-hand operation, the Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so-called ghost voltage and prevent false readings.
The Fluke 114 displays true-rms voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. Its easy-open battery access door makes battery changes easy.
Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments.
- AutoVolt automatic ac/dc voltage selection
- Low input impedance helps prevent false readings due to ghost voltage
- Work in poorly lit areas with the Large white LED backlit display
- Resistance and continuity
- Record signal fluctuations using Min/Max/Average
- Integral holster with probe holders for easy storage
- Auto and Manual ranging
- CAT III 600 V safety rated
- Optional TPAK magnetic hanger allows the user hands-free flexibility
Specifications
| Technical details | |
|---|---|
| Temperature measurement range | -40 - 400 °C |
| Resolution (DC voltage) | 0.0001 mV |
| Resolution (AC voltage) | 0.0001 mV |
| Resistance resolution | 1 Ω |
| Resistance range | 1 - 600 Ω |
| Frequency range | 0.005 - 50 kHz |
| DC voltage range | 0.0001 - 600 V |
| Continuity check | Yes |
| Basic accuracy (DC voltage) | 1.0% + 3 (DC, 45 Hz to 500 Hz) |
| Basic accuracy (AC voltage) | 2.0% + 3 (500 Hz to 1 kHz) |
| AC voltage range | 0.0001 - 600 V |
| Power | |
| Battery type | 9V |
| Number of batteries supported | 1 |
| Battery voltage | 9 V |
| Batteries included | Yes |
| Weight & dimensions | |
| Width | 3.31" (84 mm) |
| Depth | 1.81" (46 mm) |
| Height | 6.57" (167 mm) |
| Weight | 19.4 oz (550 g) |

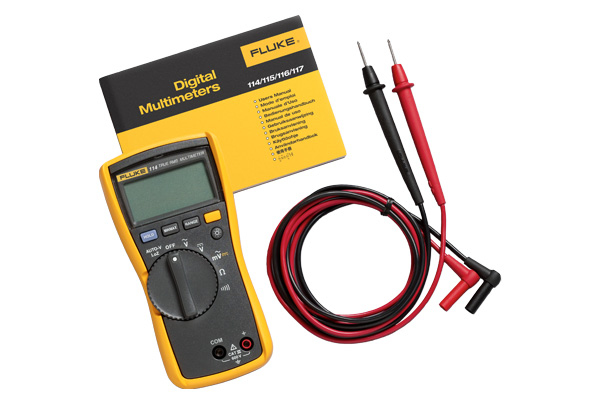

| Packaging content | |
| Test leads | Yes |
| Manual | Yes |
| Batteries included | Yes |
