Fluke 175 True RMS multimeter Digital multimeter CAT III 300V
- Brand: Fluke
- Category:
- SKU: FLUKE-175 ESFP
- EAN: 0095969095181 0095969095914
175 True RMS Digital Multimeter
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
DIGITAL MULTIMETERTRU-RMS, AC VOLTAGE & CURRENTCAT IV RATED |
241858 | |||
|
TRMS MULTIMETER ENG SP FR POR 0 |
02NM68 |
Related Products
-
Category: Test Probes -
Category: Test Probes -
Category: Test Probes -
Category: Test Probes -
Category: Test Probes -
Category: Test Probes -
Category: Test Probes
Description

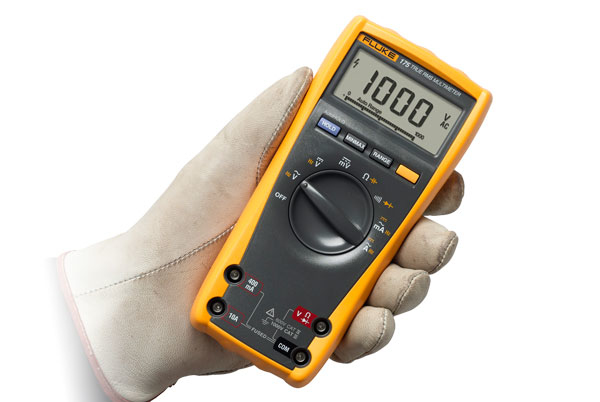

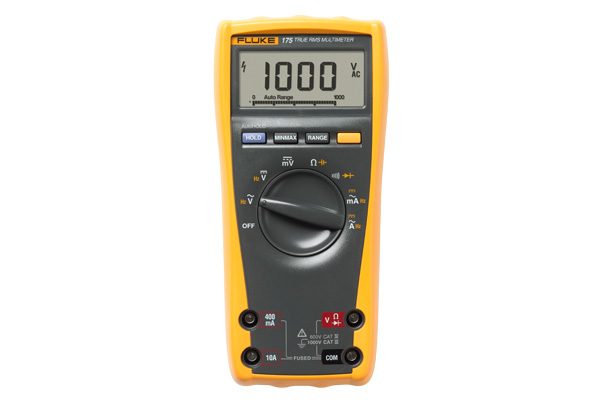

The Fluke 175 True RMS Digital Multimeter is the baseline for professional technicians around the world. With features you need to troubleshoot and repair in electrical and electronic systems, the Fluke 175 CAT IV 600V/CAT III 1000 V digital multimeter provides accurate, True RMS readings through years of reliable service.
- Manual and automatic ranging
- Display Hold and Auto Hold
- Frequency and capacitance measurements
- Resistance, continuity and diode measurements
- Min-max-average recording
- Closed case calibration through front panel
- Ergonomic case with integrated protective holster
All inputs are protected to IEN61010-1 CAT IV 600 V/CAT III 1000 V. UL, CSA, TÜV listed and VDE Pending
- Manual and automatic ranging
- Display Hold and Auto Hold
- Frequency and capacitance measurements
- Resistance, continuity and diode measurements
- Min-max-average recording
- Closed case calibration through front panel
- Ergonomic case with integrated protective holster
All inputs are protected to IEN61010-1 CAT IV 600 V/CAT III 1000 V. UL, CSA, TÜV listed and VDE Pending
Specifications
| Technical details | |
|---|---|
| Measuring category | CAT III 300V |
| Overrange | Yes |
| Product type | Digital multimeter |
| Statistic function | Maximum |
| Resolution (frequency) | 0.01 Hz |
| Resolution (DC voltage) | 0.1 mV |
| Resolution (DC current) | 0.01 µA |
| Resolution (AC voltage) | 0.1 mV |
| Resolution (AC current) | 0.01 µA |
| Resistance resolution | 0.1 Ω |
| Resistance range | 0 - 50 Ω |
| Frequency range | 0 - 100 kHz |
| Diode test | Yes |
| DC voltage range | 0 - 1000 V |
| DC current range | 0 - 10 A |
| Data hold | Yes |
| Capacitance range | 0 - 10000 nF |
| Basic accuracy (resistance) | ±(0.9% + 1) |
| Basic accuracy (frequency) | ±(0.1% + 1) |
| Basic accuracy (DC voltage) | ±(0.15% + 2) |
| Basic accuracy (DC current) | ±(1.0% + 3) |
| Basic accuracy (capacitance) | ±(1.2% + 2) |
| Basic accuracy (AC voltage) | ±(1.0% + 3) |
| Basic accuracy (AC current) | ±(1.5% + 3) |
| AC voltage range | 0 - 1000 V |
| AC current range | 0 - 10 A |
| Display | |
| Display | LCD |
| Power | |
| Battery type | AA |
| Weight & dimensions | |
| Width | 3.54" (90 mm) |
| Depth | 1.69" (43 mm) |
| Height | 7.28" (185 mm) |
| Weight | 14.8 oz (420 g) |

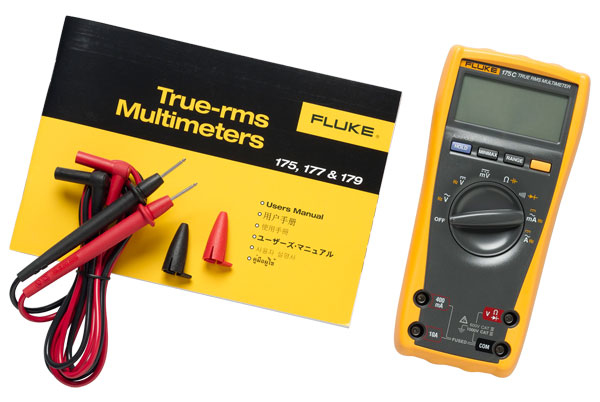

| Packaging content | |
| Manual | Yes |
| Carrying case | Yes |
