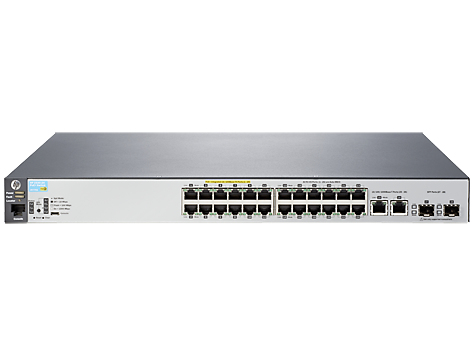

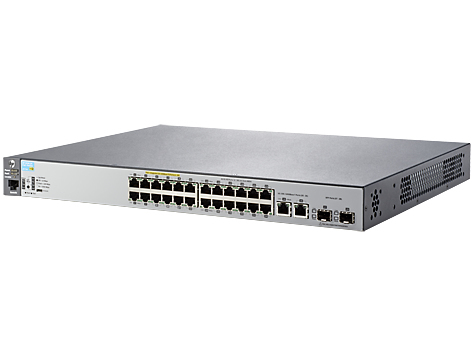

HPE 2530-24-PoE+ Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U
- Brand: HPE
- Category:
- SKU: J9779-61001
- EAN:
HPE 2530-24-PoE+, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting, 1U
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
HP STOCK, NEEDS APPROVAL PRIOR TO PURCHASE. EMAIL FOR QUOTE |
J9779-61001 | |||
|
HPE ARUBA 2530-24-POE+ SWITCH |
S98860 |
Description
HPE 2530-24-PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Throughput | 9.5 Mpps |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 12.8 Gbit/s |
| Security | |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 800 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Processor model | ARM9 |
| Packet buffer memory | 1.5 MB |
| Stackable | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 237 W |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Heat dissipation | 99 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 17.4" (442 mm) |
| Depth | 12.7" (322.6 mm) |
| Height | 1.75" (44.5 mm) |
| Weight | 8.4 lbs (3.81 kg) |
| Technical details | |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
