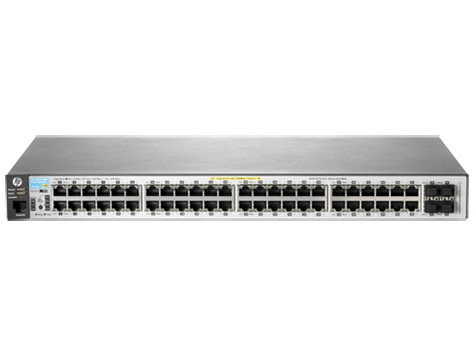

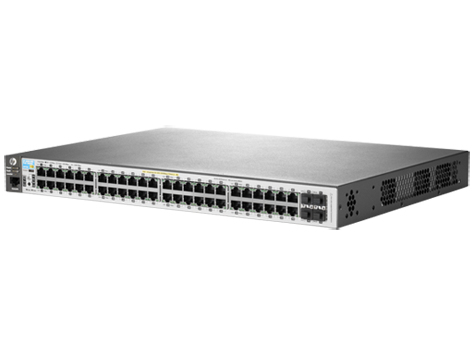

HPE 2530-48G-PoE+ Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
- Brand: HPE
- Category:
- SKU: J9772-61001
- EAN: 4054842396810
HPE 2530-48G-PoE+, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
HP STOCK, NEEDS APPROVAL PRIOR TO PURCHASE. EMAIL FOR QUOTE |
J9772-61001 | |||
|
HPE 2530-48G-POE+ SWITCH 48 |
S96586 |
Related Products
-
Category: Warranty & Support Extensions
-
Category: Network Media Converters -
Category: Network Media Converters
-
Category: Network Transceiver Modules -
Category: Network Transceiver Modules
-
Category: Rack Accessories
Description
HPE 2530-48G-PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 77.3 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Throughput | 104 Mpps |
| Latency (10-100 Mbps) | 7.4 µs |
| Latency (1 Gbps) | 2.3 µs |
| Packet buffer memory | 3 MB |
| MAC address table | 16000 entries |
| Switching capacity | 77.3 Gbit/s |
| Security | |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 800 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Processor model | ARM9 |
| Packet buffer memory | 3 MB |
| Stackable | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 476 W |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 382 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Heat dissipation | 236 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 17.4" (443 mm) |
| Depth | 12.7" (322.6 mm) |
| Height | 1.75" (44.5 mm) |
| Weight | 10.4 lbs (4.72 kg) |
| Technical details | |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 3 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
