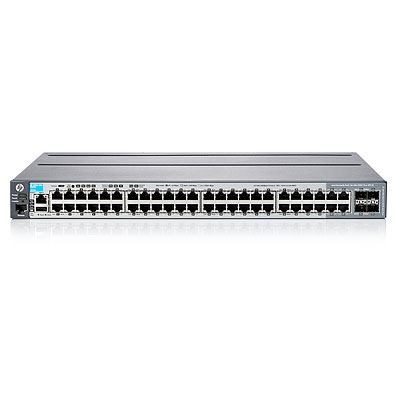

HPE 2920-48G Managed L3 Gigabit Ethernet (10/100/1000) 1U Gray

HPE 2920-48G Managed L3 Gigabit Ethernet (10/100/1000) 1U Gray

  • Brand: HPE
  • Category:
  • SKU: J9728-61001
  • EAN:
HPE 2920-48G, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

HPE 2920-48G SWITCH SWITCH 48

 S96662 Register free see stock

Related Products

Description

HPE 2920-48G. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U

Specifications

Management features
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Multicast supportYes
Switch layerL3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity4
Network
Auto-sensingYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplexYes
VLAN supportYes
Spanning tree protocolYes
Routing entries2048
Rate limitingYes
Link aggregationYes
Flow control supportYes
Auto MDI/MDI-XYes
IGMP snoopingYes
Data transmission
Throughput130.9 Mpps
Latency (10-100 Mbps)9 µs
Latency (1 Gbps)3.3 µs
Latency (10 Gbps)3.2 µs
Packet buffer memory11.25 MB
MAC address table16000 entries
Switching capacity176 Gbit/s
Security
SSH/SSL supportYes
IGMP snoopingYes
Access Control List (ACL)Yes
DHCP featuresDHCP server, DHCP client
Multicast features
Multicast supportYes
Design
Form factor1U
Product colourGray
StackableYes
Rack mountingYes
Performance
Processor frequency625 MHz
Memory typeSDRAM
Internal memory512 MB
Flash memory1024 MB
Built-in processorYes
Processor modelARM11
Packet buffer memory11.25 MB
StackableYes
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)70 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Heat dissipation239 BTU/h
Virtual LAN features
VLAN supportYes
Weight & dimensions
Width17.4" (442.5 mm)
Depth13.2" (336 mm)
Height1.75" (44.5 mm)
Weight11.9 lbs (5.42 kg)
Technical details
Form factor1U
Product colourGray
StackableYes
Processor frequency625 MHz
Rack mountingYes
Built-in processorYes
Memory
Packet buffer memory11.25 MB
Memory typeSDRAM
Internal memory512 MB
Flash memory1024 MB
