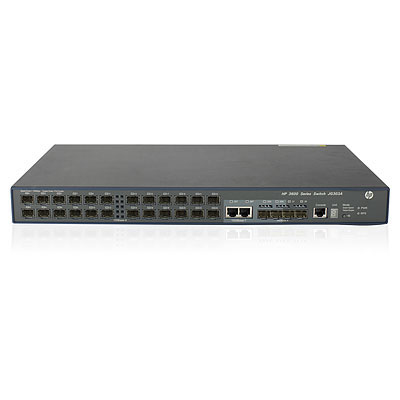

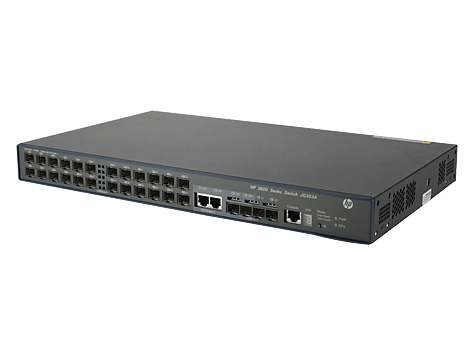

HPE 3600-24-SFP v2 EI Managed L3 1U Black
- Brand: HPE
- Category:
- SKU: JG303-61101
- EAN:
HPE 3600-24-SFP v2 EI, Managed, L3, Full duplex, Rack mounting, 1U
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
HP STOCK, NEEDS APPROVAL PRIOR TO PURCHASE. EMAIL FOR QUOTE |
JG303-61101 |
Related Products
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
Description
HPE 3600-24-SFP v2 EI. Switch type: Managed, Switch layer: L3. Full duplex. MAC address table: 32000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab. Rack mounting, Form factor: 1U
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 4 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 9.5 Mpps |
| Latency (10-100 Mbps) | 6 µs |
| Latency (1 Gbps) | 5 µs |
| MAC address table | 32000 entries |
| Switching capacity | 12.8 Gbit/s |
| Security | |
| IGMP snooping | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 60 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Acoustic pressure emissions | 43.5 dB |
| Operational conditions | |
| Heat dissipation | 205 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (439.9 mm) |
| Depth | 10.2" (260.1 mm) |
| Height | 1.72" (43.7 mm) |
| Weight | 11 lbs (5 kg) |
| Sound emission | |
| Acoustic pressure emissions | 43.5 dB |
| Performance | |
| Stackable | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
