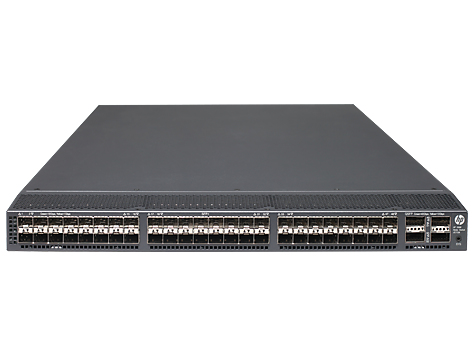

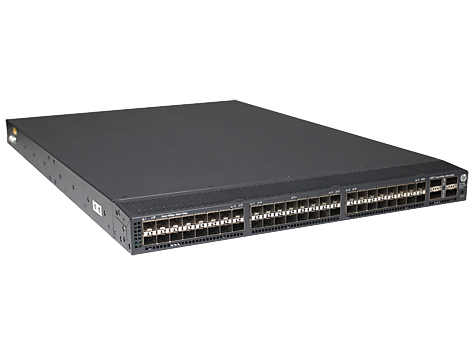

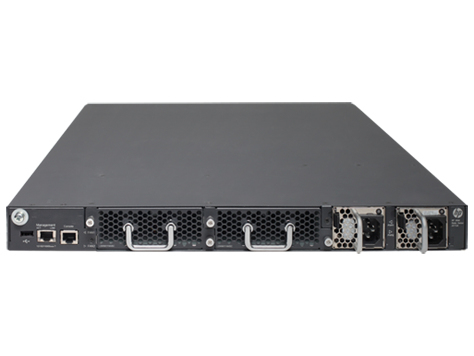

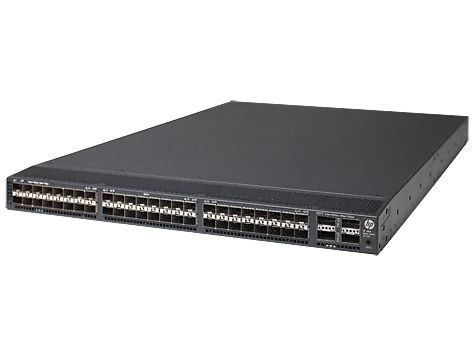

HPE 5900AF-48XG-4QSFP+ Managed L3 1U Gray
- Brand: HPE
- Category:
- SKU: JC772-61001
- EAN:
HPE 5900AF-48XG-4QSFP+, Managed, L3, Rack mounting, 1U
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
HP STOCK, NEEDS APPROVAL PRIOR TO PURCHASE. EMAIL FOR QUOTE |
JC772-61001 |
Related Products
- Warranty & Support Extensions
- InfiniBand & Fibre Optic Cables
- Rack Cooling Equipment
- Network Transceiver Modules
- IT Support Services
- Installation Services
- Network Switch Components
-
Category: Warranty & Support Extensions
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: Rack Cooling Equipment -
Category: Rack Cooling Equipment -
Category: Rack Cooling Equipment
-
Category: Rack Cooling Equipment
-
Category: Network Transceiver Modules -
Category: Network Transceiver Modules -
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules -
Category: Network Transceiver Modules
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: Installation Services
Description
HPE 5900AF-48XG-4QSFP+. Switch type: Managed, Switch layer: L3. Installed SFP+ modules quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 128000 entries, Switching capacity: 1280 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| QSFP+ module slots quantity | 48 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 48 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 16000 |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 952 Mpps |
| Latency (10 Gbps) | 1.5 µs |
| Packet buffer memory | 9 MB |
| MAC address table | 128000 entries |
| Switching capacity | 1280 Gbit/s |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Gray |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Memory type | SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
| Packet buffer memory | 9 MB |
| Stackable | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 260 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 887 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 17.3" (439.9 mm) |
| Depth | 26" (659.9 mm) |
| Height | 1.72" (43.7 mm) |
| Weight | 28.7 lbs (13 kg) |
| Technical details | |
| Form factor | 1U |
| Product colour | Gray |
| Stackable | Yes |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 9 MB |
| Memory type | SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
