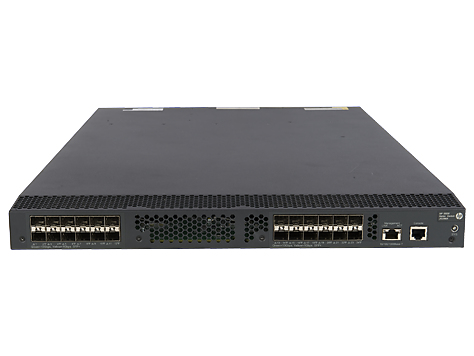

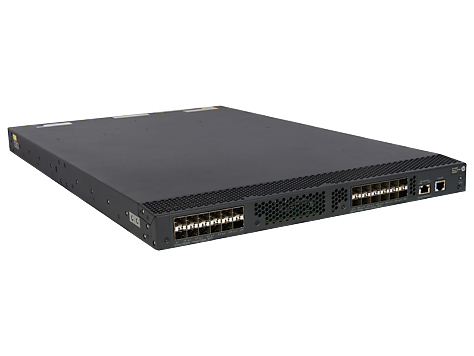

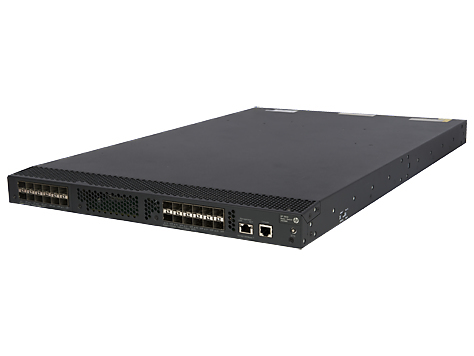

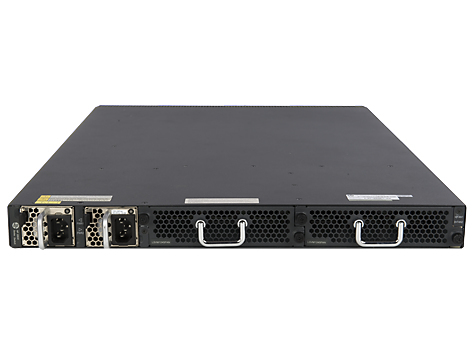

HPE 5920AF-24XG Managed L3 1U Black
- Brand: HPE
- Category:
- SKU: JG296-61101
- EAN:
HPE 5920AF-24XG, Managed, L3, Rack mounting, 1U
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
HPE 5920AF-24XG SWITCH SWITCH | S91306 |
Related Products
- Warranty & Support Extensions
- Network Transceiver Modules
- InfiniBand & Fibre Optic Cables
- Computer Cooling Systems
- Network Switch Components
-
Category: Warranty & Support Extensions -
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Network Transceiver Modules -
Category: Network Transceiver Modules -
Category: Network Transceiver Modules -
Category: Network Transceiver Modules -
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules -
Category: Network Transceiver Modules -
Category: Network Transceiver Modules
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: Computer Cooling Systems
Description
HPE 5920AF-24XG. Switch type: Managed, Switch layer: L3. Console port: RJ-45. MAC address table: 128000 entries, Switching capacity: 480 Gbit/s. Rack mounting, Form factor: 1U
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 24 |
| Console port | RJ-45 |
| Network | |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 367 Mpps |
| Latency (10 Gbps) | 1.7 µs |
| Packet buffer memory | 3686.4 MB |
| MAC address table | 128000 entries |
| Switching capacity | 480 Gbit/s |
| Security | |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Memory type | SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 256 MB |
| Packet buffer memory | 3686.4 MB |
| Stackable | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 366 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Acoustic pressure emissions | 62.1 dB |
| Operational conditions | |
| Heat dissipation | 1249 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (439.9 mm) |
| Depth | 26" (659.9 mm) |
| Height | 1.72" (43.7 mm) |
| Weight | 28.7 lbs (13 kg) |
| Sound emission | |
| Acoustic pressure emissions | 62.1 dB |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 3686.4 MB |
| Memory type | SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 256 MB |
