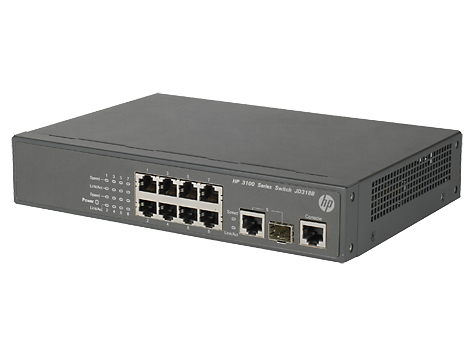

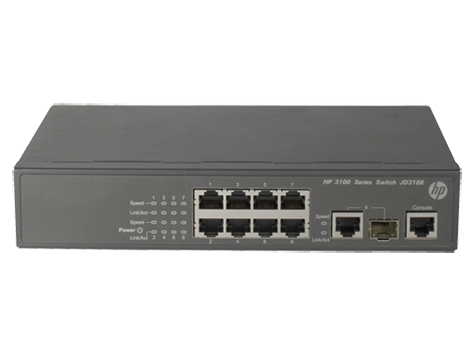

HPE A 3100-8 v2 EI Managed L2 Fast Ethernet (10/100) 1U Gray
- Brand: HPE
- Category:
- SKU: JD318-61201
- EAN: 4054842570982
HPE A 3100-8 v2 EI, Managed, L2, Fast Ethernet (10/100), Full duplex, Rack mounting, 1U
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
HP STOCK, NEEDS APPROVAL PRIOR TO PURCHASE. EMAIL FOR QUOTE |
JD318-61201 |
Related Products
- Rack Accessories
- InfiniBand & Fibre Optic Cables
- Power Cables
- Network Transceiver Modules
- Power Supply Units
- Network Switch Components
-
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: Power Cables -
Category: Power Cables
-
Category: Network Transceiver Modules -
Category: Network Transceiver Modules -
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
Description
HPE A 3100-8 v2 EI. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8192 entries, Switching capacity: 3.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u. Rack mounting, Form factor: 1U
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Combo SFP ports quantity | 1 |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Console port | RJ-45 |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 2.6 Mpps |
| Latency (10-100 Mbps) | 6 µs |
| Latency (1 Gbps) | 5 µs |
| Packet buffer memory | 0.384 MB |
| MAC address table | 8192 entries |
| Switching capacity | 3.6 Gbit/s |
| Security | |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Gray |
| Rack mounting | Yes |
| Performance | |
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Packet buffer memory | 0.384 MB |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 9 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 9.06" (230.1 mm) |
| Depth | 6.3" (160 mm) |
| Height | 1.72" (43.7 mm) |
| Weight | 3.97 lbs (1.8 kg) |
| Technical details | |
| Form factor | 1U |
| Product colour | Gray |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 0.384 MB |
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
