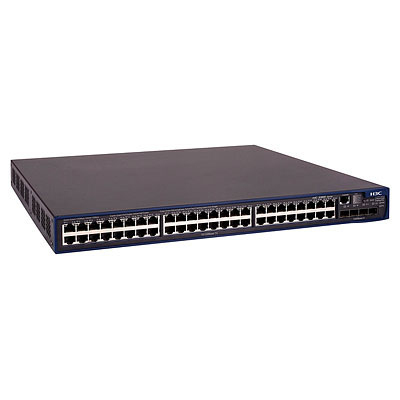

HPE A 3600-48-PoE EI L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Gray

  • Brand: HPE
  • Category:
  • SKU: JD328A
  • EAN: 0885631182826 0885631182840 08 ...1182840 0885631182864 8856311828268 0885631182833 6934648003991more
HPE A 3600-48-PoE EI, L2, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), 1U

Trade Prices

Distributor Product SKU Stock Updated Price
Arbitech (Inactive)

HP A3600-48-POE EI Switch

 JD328A Register free see stock

Related Products

Description

HPE A 3600-48-PoE EI. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Full duplex. MAC address table: 32000 entries, Switching capacity: 17.6 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Form factor: 1U

Specifications

Management features
Web-based managementYes
Quality of Service (QoS) supportYes
Switch layerL2
Ports & interfaces
SFP module slots quantity4
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity48
SFP/SFP+ slots quantity4
Fiber optic connectorSFP
Console portRJ-45
Copper ethernet cabling technology100BASE-TX, 10BASE-T
Network
Copper ethernet cabling technology100BASE-TX, 10BASE-T
Networking standardsIEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplexYes
VLAN supportYes
Spanning tree protocolYes
Routing entries8448
Number of VLANs4094
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportNo
Data transmission
Throughput11.8 Mpps
Packet buffer memory32 MB
MAC address table32000 entries
Supported data transfer rates10/100 Mbit/s
Switching capacity17.6 Gbit/s
Maximum data transfer rate1 Gbit/s
Number of VLANs4094
Security
SSH/SSL supportYes
Security algorithms802.1x RADIUS, SSH-2, SSL/TLS
MAC address filteringYes
Access Control List (ACL)Yes
DHCP featuresDHCP server, DHCP client
Protocols
Management protocolsSNMPv1/v2c/v3, LLDP, RMON
Design
SafetyUL, EN, IEC, CAN/CSA, FDA, ROHS
Form factor1U
Product colourGray
LED indicatorsYes
Rack mountingNo
Performance
Memory typeSDRAM
Internal memory64 MB
Flash memory16 MB
Packet buffer memory32 MB
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)820 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Other features
Latency10 µs
Dimensions (WxDxH)16.5 x 17.3 x 1.72" (420 x 440 x 43.6 mm)
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90%
Heat dissipation563 BTU/h
Virtual LAN features
VLAN supportYes
Number of VLANs4094
Weight & dimensions
Width17.3" (440 mm)
Depth16.5" (420 mm)
Height1.72" (43.6 mm)
Weight14.3 lbs (6.5 kg)
Optical fiber
Fiber optic connectorSFP
Technical details
Form factor1U
Product colourGray
Rack mountingNo
Certificates
SafetyUL, EN, IEC, CAN/CSA, FDA, ROHS
Memory
Packet buffer memory32 MB
Memory typeSDRAM
Internal memory64 MB
Flash memory16 MB
Indication
LED indicatorsYes
