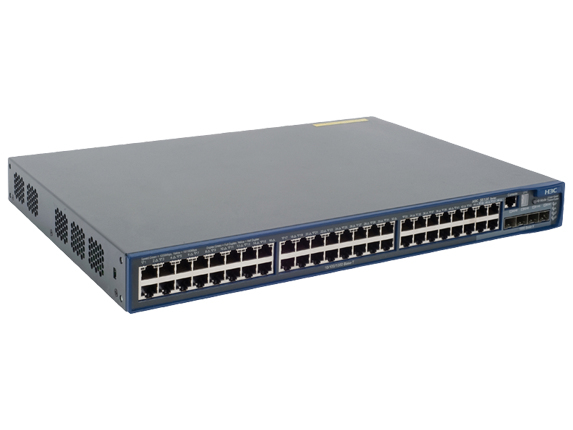

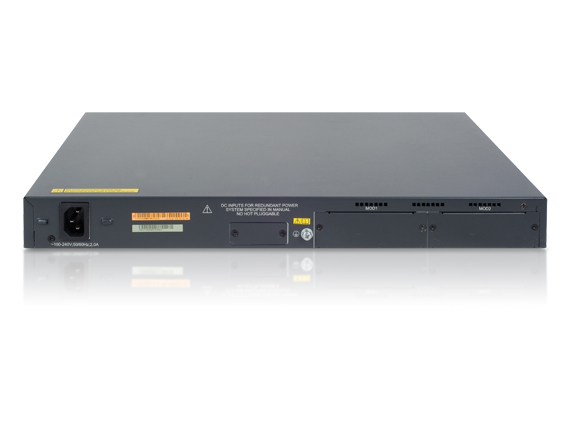

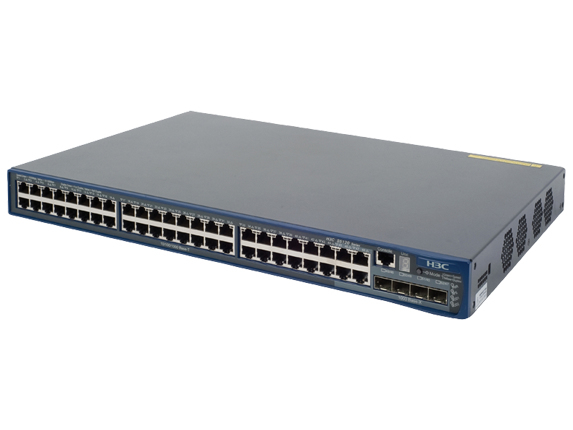

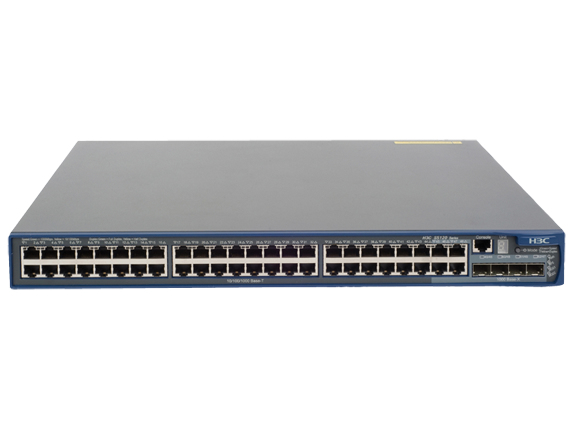

HPE A 5120-48G EI Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

HPE A 5120-48G EI Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

  • Brand: HPE
  • Category:
  • SKU: JE069-61101
  • EAN: 4053162781290
HPE A 5120-48G EI, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Trade Prices

Distributor Product SKU Stock Updated Price
Depot International

HP STOCK, NEEDS APPROVAL PRIOR TO PURCHASE. EMAIL FOR QUOTE

 JE069-61101 Register free see stock

Related Products

Description

HPE A 5120-48G EI. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Full duplex. Switching capacity: 192 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U

Specifications

Management features
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Multicast supportYes
Switch layerL3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity4
Console portRJ-45
Network
Auto-sensingYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplexYes
VLAN supportYes
Spanning tree protocolYes
Routing entries32
Port mirroringYes
Link aggregationYes
Flow control supportYes
Auto MDI/MDI-XYes
IGMP snoopingYes
Data transmission
Throughput142.9 Mpps
Latency (1 Gbps)3.2 µs
Latency (10 Gbps)2.6 µs
Packet buffer memory4 MB
Switching capacity192 Gbit/s
Security
SSH/SSL supportYes
IGMP snoopingYes
Access Control List (ACL)Yes
DHCP featuresDHCP client
Multicast features
Multicast supportYes
Design
Form factor1U
Product colourBlack
StackableYes
Rack mountingYes
Performance
Expansion module supportYes
Memory typeSDRAM
Internal memory128 MB
Flash memory16 MB
Packet buffer memory4 MB
StackableYes
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)145 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Heat dissipation495 BTU/h
Virtual LAN features
VLAN supportYes
Weight & dimensions
Width17.3" (440 mm)
Depth11.8" (300 mm)
Height1.72" (43.6 mm)
Weight11 lbs (5 kg)
Technical details
Expansion module supportYes
Form factor1U
Product colourBlack
StackableYes
Rack mountingYes
Memory
Packet buffer memory4 MB
Memory typeSDRAM
Internal memory128 MB
Flash memory16 MB
