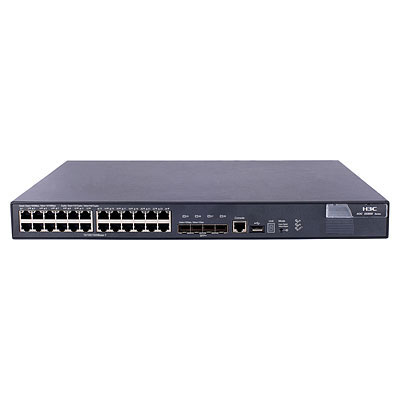

HPE A 5800-24G Managed L3 Gigabit Ethernet (10/100/1000) 1U Gray
- Brand: HPE
- Category:
- SKU: JC100-61101
- EAN: 4056572654130
HPE A 5800-24G, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
HPE A5800-24G SWITCH L3 |
S96727 |
Related Products
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
Description
HPE A 5800-24G. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 32000 entries, Switching capacity: 208 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 16000 |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 155 Mpps |
| Packet buffer memory | 4 MB |
| MAC address table | 32000 entries |
| Switching capacity | 208 Gbit/s |
| Security | |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Gray |
| Rack mounting | Yes |
| Performance | |
| Memory type | SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Packet buffer memory | 4 MB |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 358 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 14.4" (364.5 mm) |
| Height | 1.72" (43.6 mm) |
| Weight | 13.2 lbs (6 kg) |
| Technical details | |
| Form factor | 1U |
| Product colour | Gray |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 4 MB |
| Memory type | SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
