HPE Aruba Networking Aruba AP-303H (RW) 867 Mbit/s White Power over Ethernet (PoE)

HPE Aruba Networking Aruba AP-303H (RW) 867 Mbit/s White Power over Ethernet (PoE)

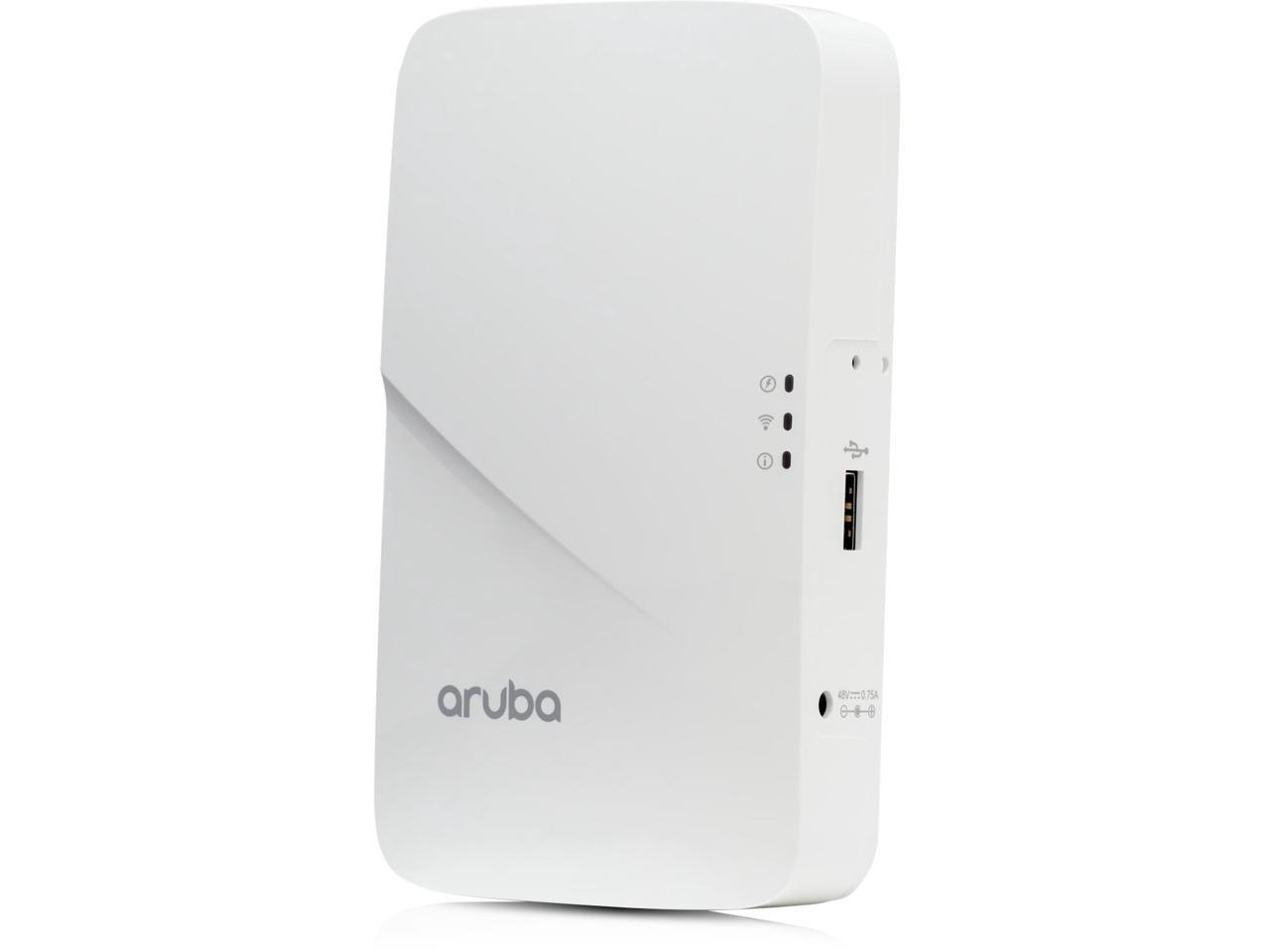

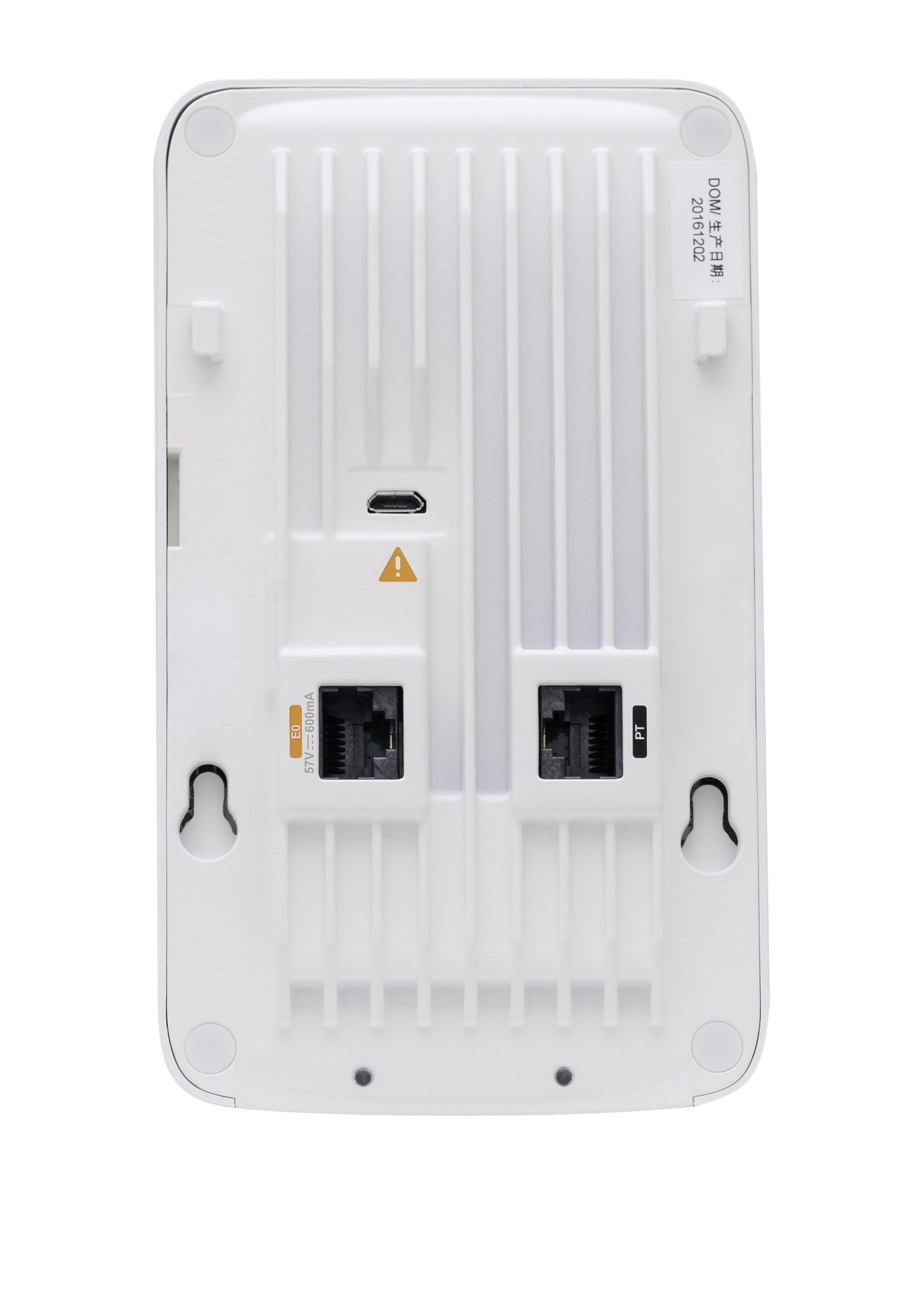

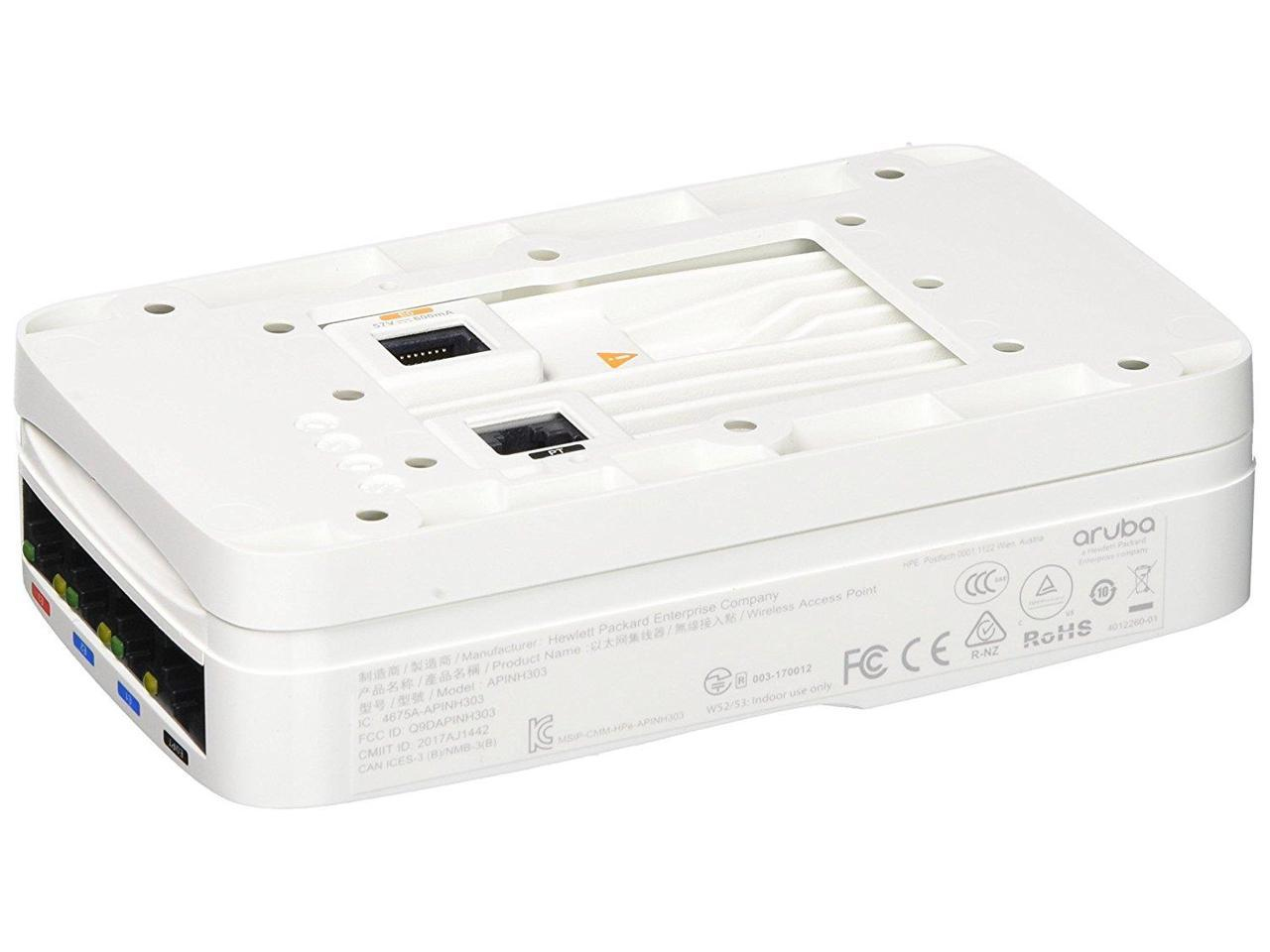

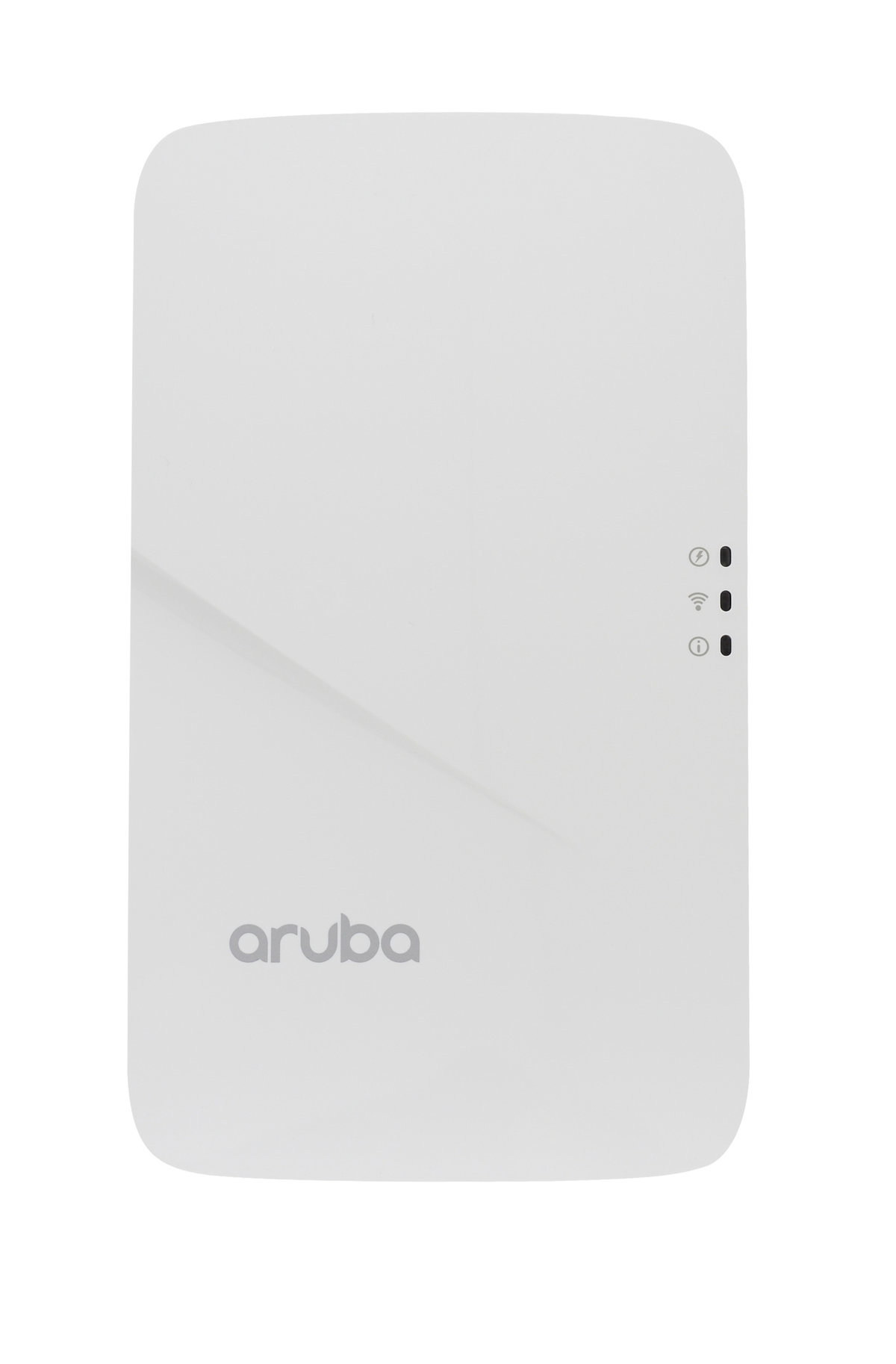

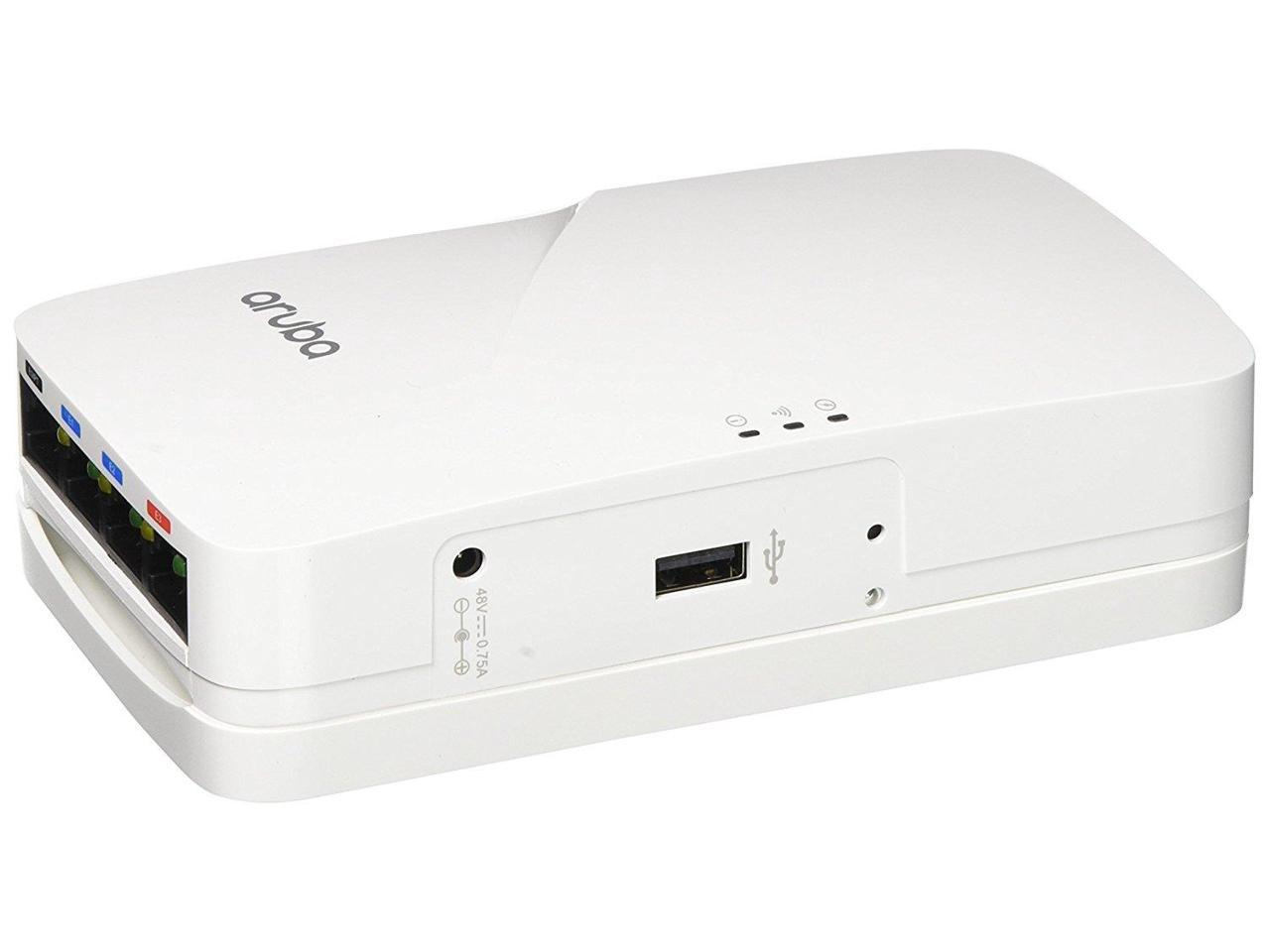

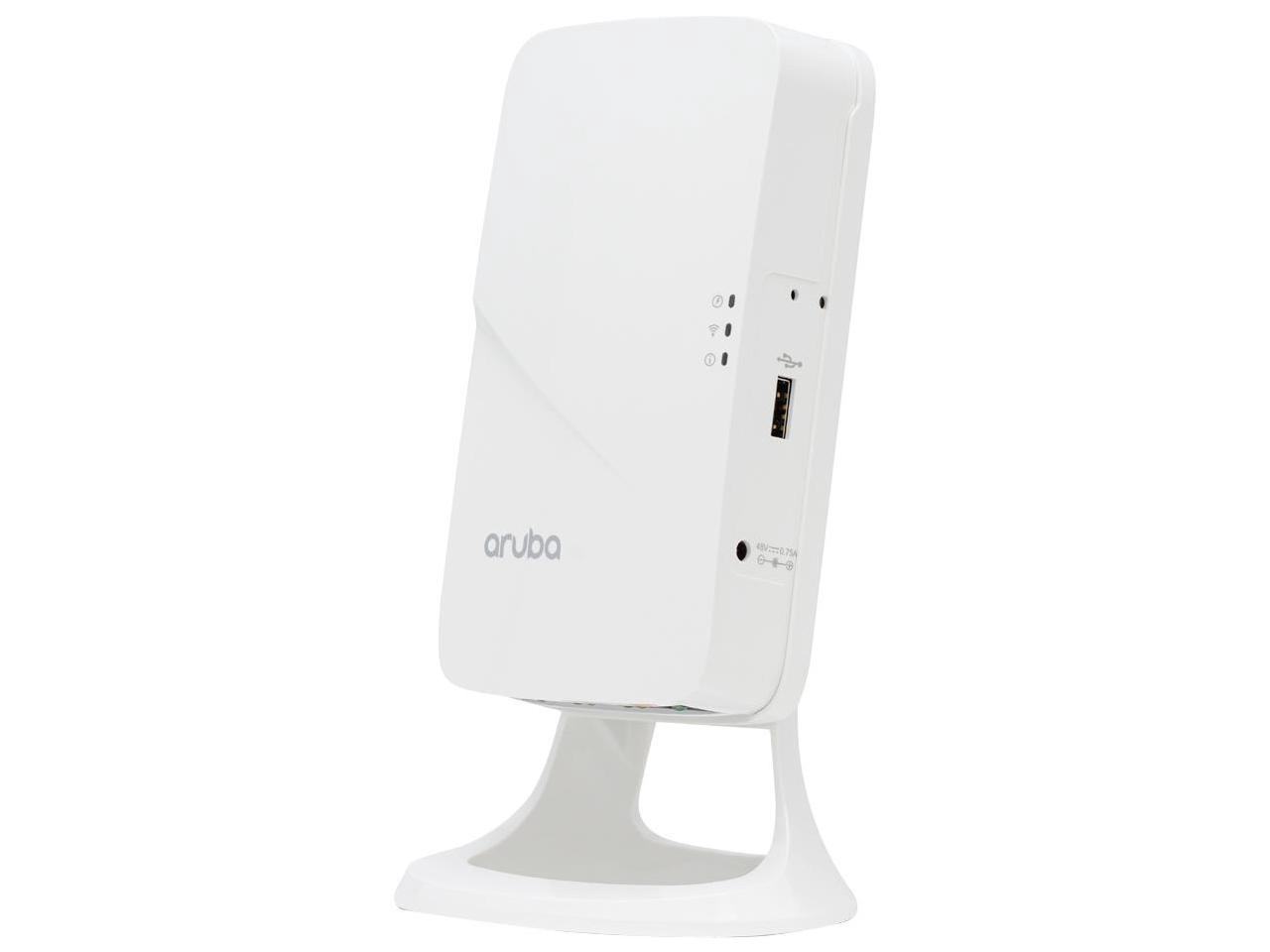

Aruba AP-303H (RW) Dual-radio 802.11ac 2x2 Unified Hospitality AP w/Internal Antennas

Trade Prices

Distributor Product SKU Stock Updated Price
Depot International

HP STOCK, NEEDS APPROVAL PRIOR TO PURCHASE. EMAIL FOR QUOTE

JY678-61001 Register free see stock

Description

This access point combines wireless and wired access in a single compact device. It’s ideal for hotels, medical clinics, classrooms, branch offices and remote workstations which often require flexible and easy deployment options.

Three local Gigabit Ethernet ports are available to securely attach wired devices to your network. One of these ports is also capable of supplying PoE power to the attached device.

Integrated Bluetooth Aruba Beacon simplifies the remote management of a large-scale network of battery-powered BLE Aruba Beacons while also providing advanced location and indoor wayfinding, and proximity-based push notification capabilities. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.

Specifications

Data transmission
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate867 Mbit/s
Performance
2.4 GHzYes
5 GHzYes
Auto MDI/MDI-XYes
Spread spectrum methodDSSS, OFDM
Quality of Service (QoS) supportYes
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate867 Mbit/s
MIMOYes
Wireless LAN features
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Network
Spread spectrum methodDSSS, OFDM
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Management features
Quality of Service (QoS) supportYes
Features
2.4 GHzYes
5 GHzYes
Auto MDI/MDI-XYes
Spread spectrum methodDSSS, OFDM
Quality of Service (QoS) supportYes
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate867 Mbit/s
MIMOYes
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Security
Security algorithmsNot supported
Ports & interfaces
USB connector typeUSB Type-A
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports3
Power
Power consumption (max)9.7 W
Power over Ethernet (PoE)Yes
Design
PlacementWall
Product colourWhite
Antenna
Antenna typeInternal
Antennas quantity2
Antenna gain level (max)6.2 dBi
Antenna direction typeDirectional
Antenna featuresIntegrated antenna
Weight & dimensions
Width3.39" (86 mm)
Depth1.57" (40 mm)
Weight12.3 oz (350 g)
Height5.91" (150 mm)
Package width11.5" (293 mm)
Package depth5.39" (137 mm)
Package height3.66" (93 mm)
Package weight27.9 oz (790 g)
Packaging data
Package width11.5" (293 mm)
Package depth5.39" (137 mm)
Package height3.66" (93 mm)
Package weight27.9 oz (790 g)
Operational conditions
Operating relative humidity (H-H)5 - 93%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
