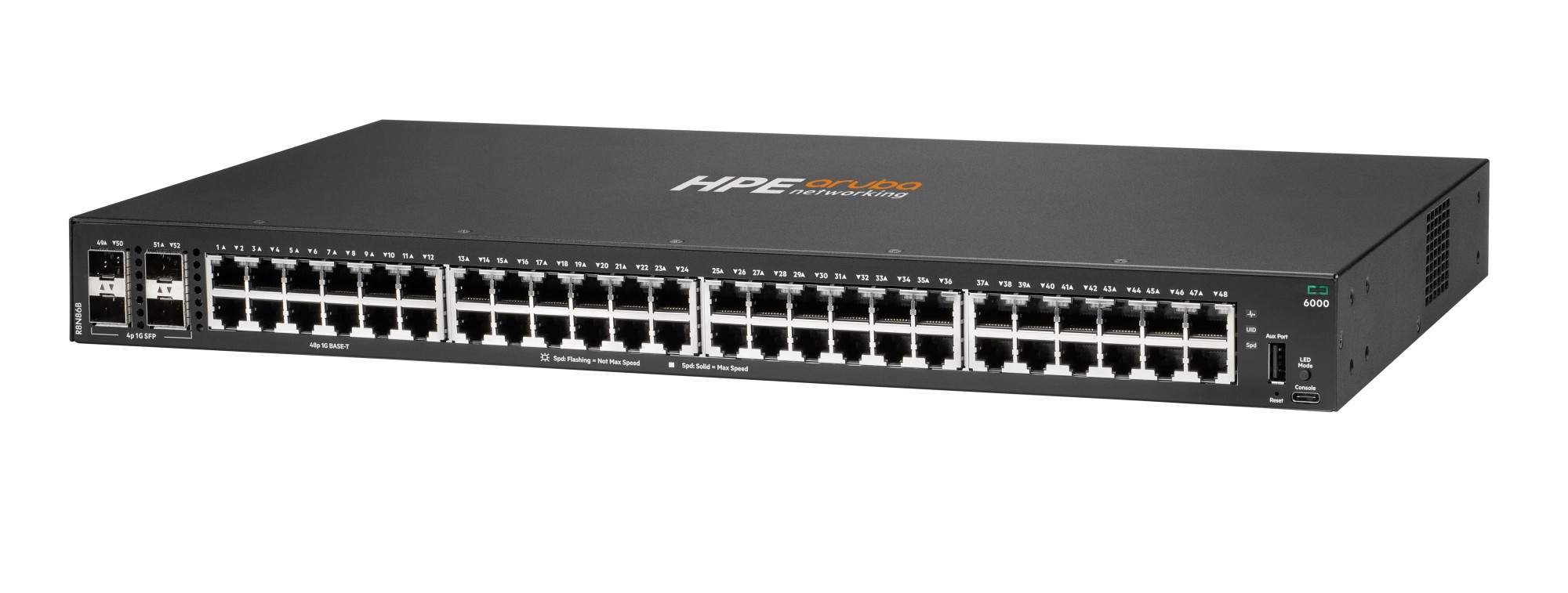

HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch

HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch

  • Brand: HPE
  • Category:
  • SKU: R8N86B
  • EAN: 0190017784946
HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U

Trade Prices

Distributor Product SKU Stock Updated Price
TD Synnex

LA HPE ANW 6000 48G 4F Sw

 15299658 Register free see stock

Related Products

Reasons To Buy

Entry-level Layer 2 access switches

The HPE Aruba Networking CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry-level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.
The switch series delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System used across HPE Aruba Networking CX switching platforms.
It has fully-managed enterprise-class switches switches deliver Layer 2 capabilities with support static routing, access control lists (ACLs), robust quality of service (QoS), traffic prioritization, sFlow, and IPv6.
The CX 6000 series provides right-size deployment with choice of 8, 12, 24, and 48-port 1U models with convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE.
It simplifies ownership with no switch software licensing or subscriptions required.

AI-ready erformance and power

The HPE Aruba Networking CX 6000 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and optimized power consumption ideal for AI, Wi-Fi 7, and IoT requirements.
It supports up to 740W IEEE 802.3at Class 4 PoE with up to 30W per port to enable full deployments of wireless access points and IoT devices.
It has up to four built-in wire speed 1GbE uplinks remove bottlenecks at the access layer where users and devices connect.

Simplified configuration and management

The HPE Aruba Networking CX 6000 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy-to-use web GUI, or industry-standard CLI.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
The switch series offers unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
It reduces manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).
The CX 6000 series is ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.

Description

HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: USB. MAC address table: 8192 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting, Form factor: 1U

Specifications

Management features
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Multicast supportYes
Switch layerL2/L3
Configuring Location Settings (CLI)Yes
Cloud-managedYes
Ports & interfaces
SFP module slots quantity4
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
USB 2.0 ports quantity1
Console portUSB
Network
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1ab
Flow control supportYes
10G supportNo
Data transmission
Throughput77.3 Mpps
Latency (1 Gbps)1.9 µs
MAC address table8192 entries
Switching capacity104 Gbit/s
Static routeYes
Security
Access Control List (ACL)Yes
DHCP featuresDHCP server, DHCP snooping, DHCP relay, DHCP client
Multicast features
Multicast supportYes
Design
Form factor1U
Product colourBlack
Rack mountingYes
Performance
Processor frequency1016 MHz
Memory typeDDR3-SDRAM
Internal memory4096 MB
Flash memory16000 MB
Processor manufacturerARM
Built-in processorYes
Processor modelARM Cortex-A9
Power
Power consumption (max)35.2 W
AC input voltage200 - 240 V
AC input frequency50/60 Hz
Power sourceAC
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width17.4" (442.5 mm)
Depth9.7" (246.5 mm)
Height1.73" (43.9 mm)
Weight6.57 lbs (2.98 kg)
Technical details
Form factor1U
Product colourBlack
Processor frequency1016 MHz
Rack mountingYes
Built-in processorYes
Memory
Memory typeDDR3-SDRAM
Internal memory4096 MB
Flash memory16000 MB
