Description

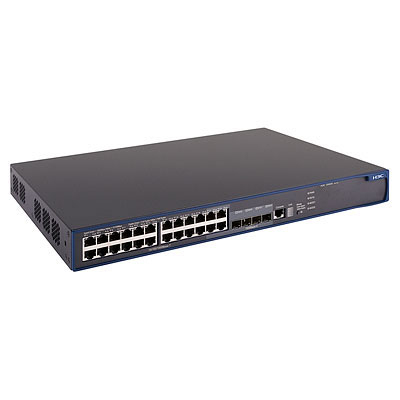

HPE E5500-24-SFP Switch. Switch type: Managed. Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 2000 entries. Power over Ethernet (PoE)
Specifications
| Ports & interfaces | |
|---|---|
| I/O ports | 24 SFP 100 Mbps ports; 2 auto-negotiating 10/100/1000 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); 2 fixed Gigabit Ethernet SFP ports; 1 RJ-45 serial console port; Supports a maximum of 24 100BASE-X SFP ports plus 2 auto-sensing 10/100/1000 ports plus 2 1000Base-X SFP ports, or a combination |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Performance | |
| Stackable | Yes |
| Technical details | |
| Stackable | Yes |
| Management features | |
| Switch type | Managed |
| Data transmission | |
| Throughput | 9.5 Mpps |
| MAC address table | 2000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
| Protocols | |
| Data link protocols | Ethernet, Fast Ethernet |
| Certificates | |
| Safety | UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EU RoHS Compliant |
| Electromagnetic compatibility | FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A |
| Design | |
| Safety | UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EU RoHS Compliant |
| Stackable | Yes |
| Electromagnetic compatibility | FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A |
| Power | |
| Input voltage | 100-240 VAC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
| Weight | 7.3 lbs (3.31 kg) |
| Other features | |
| Management platform | IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB |
| Dimensions (WxDxH) | 10.6 x 17.3 x 1.7" (269.2 x 439.4 x 43.2 mm) |
| Connectivity technology | Wired |
| Memory and processor | : Broadcom 5836, 64 MB SDRAM, packet buffer size: 32 MB, 16 MB flash |
| Input voltage | 100-240 VAC |
| Input frequency | 50 / 60 Hz |
| I/O ports | 24 SFP 100 Mbps ports; 2 auto-negotiating 10/100/1000 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); 2 fixed Gigabit Ethernet SFP ports; 1 RJ-45 serial console port; Supports a maximum of 24 100BASE-X SFP ports plus 2 auto-sensing 10/100/1000 ports plus 2 1000Base-X SFP ports, or a combination |
