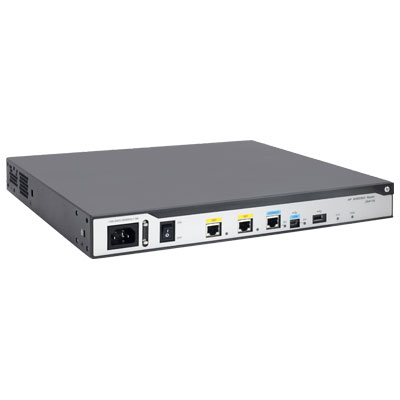

HPE MSR2004-24 AC Router wired router

  • Brand: HPE
  • Category:
  • SKU: JG734A#ABA
  • EAN: 0887758610411 8877586104116 08 ...6104116 0887758610428 0887758610398 0887758610466more
HPE MSR2004-24 AC Router

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

MSR2004-24 AC ROUTER

 VZ2647 Register free see stock

Related Products

Description

HPE MSR2004-24 AC Router

Specifications

Ports & interfaces
I/O ports4 SIC slots; 3 RJ-45 1000BASE-T ports; 1 SFP fixed Gigabit Ethernet SFP port; 24 RJ-45 autosensing 10/100/1000 LAN ports; Included
Networking
MAC address table200000 entries
Design
Form factorRack (1U)
Performance
Heat dissipation170 BTU/h
Power
Power consumption (typical)54W
Input voltage100 - 240 VAC
Technical details
Form factorRack (1U)
Throughput1 Mpps
Weight15.1 lb
Telecom compliance (fax capability)FCC part 68; CS-03
Heat dissipation170 BTU/h
Operating altitude (imperial)up to 16404 ft
Weight & dimensions
Weight6.85 kg
System requirements
Memory and processor: RISC @ 800 MHz, 256 MB flash capacity, 1 GB DDR3 SDRAM
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 158°F
Operating relative humidity (H-H)5 to 90 %
Operating altitude196.9 km (5 km)
Operating temperature (T-T)32 - 113 °F
Certificates
SafetyUL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Electromagnetic compatibilityEN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001
Other features
Throughput1 Mpps
Size17.32"
MountingDesktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package
Management platformIMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB
Input voltage100 - 240 VAC
Input frequency50 - 60 Hz
Dimensions (WxDxH)439.9 x 359.9 x 44.2 mm
Weight15.1 lb
Telecom compliance (fax capability)FCC part 68; CS-03
Operating altitude (imperial)up to 16404 ft
