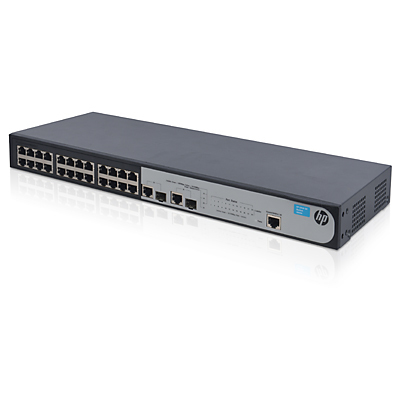

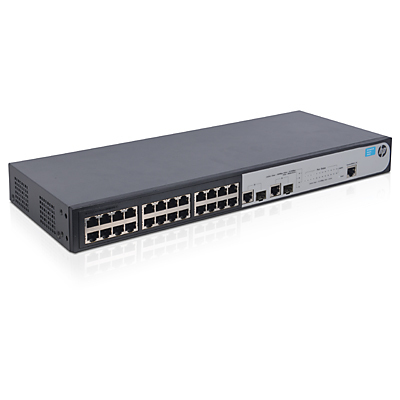

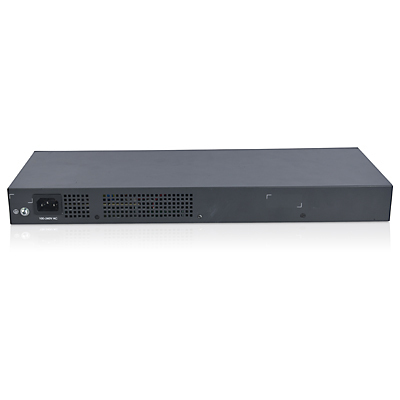

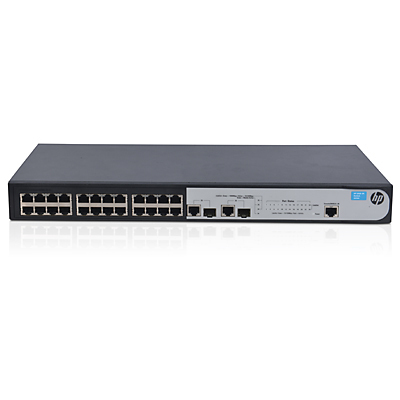

HPE OfficeConnect 1910 24 Managed L3 Fast Ethernet (10/100) 1U Gray

HPE OfficeConnect 1910 24 Managed L3 Fast Ethernet (10/100) 1U Gray

  • Brand: HPE
  • Category:
  • SKU: JG538AR#ABA
  • EAN: 0889296012528
HPE OfficeConnect 1910 24, Managed, L3, Fast Ethernet (10/100), Full duplex, Rack mounting, 1U

Trade Prices

Distributor Product SKU Stock Updated Price
TD Synnex

U.S. English localization

 7564908 Register free see stock

Related Products

Description

HPE OfficeConnect 1910 24. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 2, Console port: RJ-45. Full duplex. MAC address table: 8192 entries, Switching capacity: 8.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U

Specifications

Management features
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Switch layerL3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity2
Installed SFP+ modules quantity0
Console portRJ-45
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Network
Auto-sensingYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplexYes
VLAN supportYes
Spanning tree protocolYes
Rate limitingYes
Port mirroringYes
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportNo
IGMP snoopingYes
Data transmission
Throughput6.6 Mpps
Latency (10-100 Mbps)5 µs
Latency (1 Gbps)5 µs
Packet buffer memory0.5 MB
MAC address table8192 entries
Switching capacity8.8 Gbit/s
Jumbo frames supportYes
Security
SSH/SSL supportYes
IGMP snoopingYes
Access Control List (ACL)Yes
DHCP featuresDHCP client
Design
Form factor1U
Product colourGray
StackableYes
Rack mountingYes
Performance
Processor frequency500 MHz
Internal memory128 MB
Flash memory32 MB
Built-in processorYes
Packet buffer memory0.5 MB
StackableYes
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)12 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 95%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Virtual LAN features
VLAN supportYes
Weight & dimensions
Width17.3" (440 mm)
Depth6.81" (173 mm)
Height1.73" (44 mm)
Weight4.85 lbs (2.2 kg)
Technical details
Form factor1U
Product colourGray
StackableYes
Processor frequency500 MHz
Rack mountingYes
Built-in processorYes
Memory
Packet buffer memory0.5 MB
Internal memory128 MB
Flash memory32 MB
