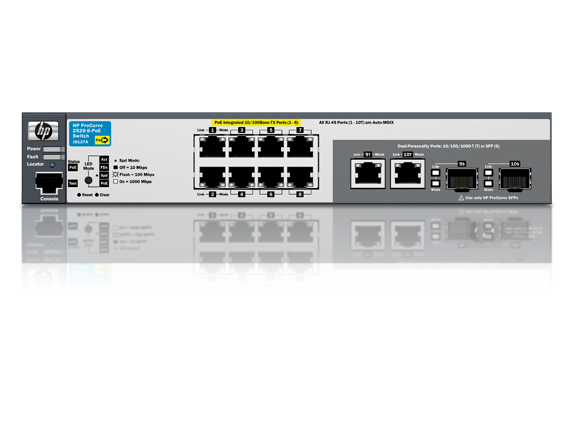

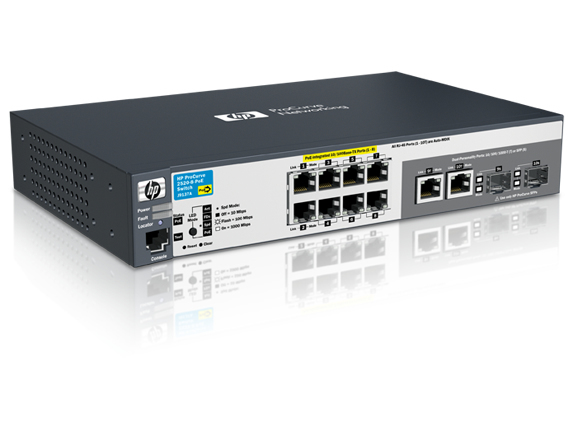

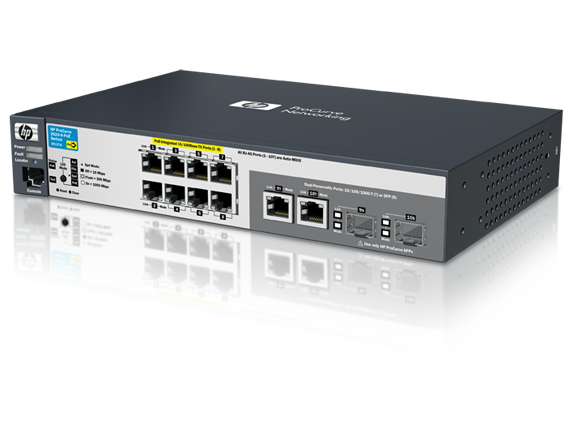

HPE ProCurve 2520-8-PoE Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

HPE ProCurve 2520-8-PoE Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

  • Brand: HPE
  • Category:
  • SKU: J9137-61101
  • EAN: 4054842569337
HP 2520-8-PoE Switch

Trade Prices

Distributor Product SKU Stock Updated Price
Depot International

HP STOCK, NEEDS APPROVAL PRIOR TO PURCHASE. EMAIL FOR QUOTE

 J9137-61101 Register free see stock

Related Products

Description

The HP 2520 switch series is ideally suited for small and medium businesses looking to deploy voice, video, or wireless solutions that require Power over Ethernet (PoE) connectivity. The series consists of four switches: the HP 2520-8-PoE, 2520-24-PoE, 2520-8G-PoE, and 2520-24G-PoE Switches. The four models offer a choice of either Fast Ethernet or Gigabit Ethernet connectivity. All models also include support for dual-personality Gigabit Ethernet ports that can be used for either copper or fiber connectivity. All products are fully managed via SNMP, command-line interface (CLI), and graphical user interface (GUI) and offer a Layer 2 feature set. In addition, the products provide deployment flexibility with compact, quiet, and energy-efficient designs.

Quality of Service (QoS)

• Selectable queue configuration: allows you to increase performance and/or traffic reliability by selecting the number of queues that best meet the requirements of your network applications; switch will map 8 priorities to either 2 or 4 queues


Management

• Choice of management interfaces: Web graphical user interface (GUI): easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line interface (CLI): robust command-line interface provides advanced configuration and diagnostics. Simple Network Management Protocol (SNMPv2c/SNMPv3): allows switch to be managed with a variety of third-party network management applications.


Connectivity

• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all ports


Performance

• Switch on a chip: provides highly integrated, high-performance switch design with a non-blocking architecture


Resiliency and high availability

• Port trunking and link aggregation: Trunking: supports up to eight links per trunk to increase bandwidth and create redundant connections. IEEE 802.3ad Link Aggregation Protocol (LACP): eases configuration of trunks through automatic configuration.


Layer 2 switching

• VLAN support and tagging: supports the IEEE 802.1Q (4,094 VLAN IDs) and up to 256 port-based VLANs simultaneously


Security

• Manager and operator privilege levels: enables read-only (operator) and read-write (manager) access on management interfaces

Specifications

Management features
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Multicast supportYes
MIB supportYes
Switch layerL2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Combo SFP ports quantity2
Console portRJ-45
Network
Auto-sensingYes
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3u
Full duplexYes
VLAN supportYes
Spanning tree protocolYes
Port mirroringYes
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportNo
IGMP snoopingYes
Data transmission
Throughput4.1 Mpps
Latency (10-100 Mbps)1.9 µs
Latency (1 Gbps)1.5 µs
Packet buffer memory0.384 MB
MAC address table8000 entries
Switching capacity5.6 Gbit/s
Security
SSH/SSL supportYes
IGMP snoopingYes
DHCP featuresDHCP client
Multicast features
Multicast supportYes
Design
Form factor1U
Product colourBlack
StackableYes
Rack mountingYes
Performance
Processor frequency266 MHz
Memory typeDDR2-SDRAM
Internal memory128 MB
Flash memory32 MB
Built-in processorYes
Processor modelPowerPC MPC8313
Packet buffer memory0.384 MB
StackableYes
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)85.5 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget67 W
Power over Ethernet (PoE)Yes
Operational conditions
Heat dissipation87 BTU/h
Virtual LAN features
VLAN supportYes
Weight & dimensions
Width10" (254 mm)
Depth6.28" (159.5 mm)
Height1.75" (44.5 mm)
Weight3.62 lbs (1.64 kg)
Technical details
Form factor1U
Product colourBlack
StackableYes
Processor frequency266 MHz
Rack mountingYes
Built-in processorYes
Memory
Packet buffer memory0.384 MB
Memory typeDDR2-SDRAM
Internal memory128 MB
Flash memory32 MB
