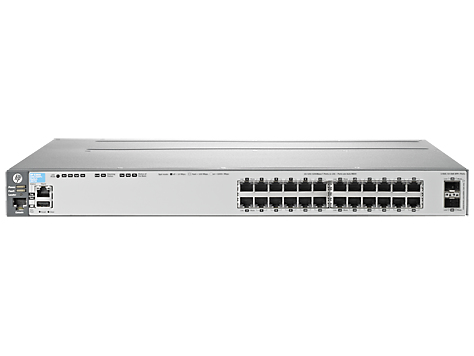

HPE ProCurve 3800-24G-2SFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U Gray
- Brand: HPE
- Category:
- SKU: J9575-61101
- EAN:
HPE ProCurve 3800-24G-2SFP+, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
HP STOCK, NEEDS APPROVAL PRIOR TO PURCHASE. EMAIL FOR QUOTE |
J9575-61101 | |||
|
HPE 3800-24G-2SFP+ SWITCH |
S88555 | |||
|
E3800-24G-2SFP Switch |
J9575-61101 |
Related Products
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
Description
HPE ProCurve 3800-24G-2SFP+. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 65500 entries, Switching capacity: 88 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 10000 |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 65.4 Mpps |
| Latency (1 Gbps) | 2.8 µs |
| Latency (10 Gbps) | 1.9 µs |
| Packet buffer memory | 18 MB |
| MAC address table | 65500 entries |
| Switching capacity | 88 Gbit/s |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Gray |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Memory type | SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 4096 MB |
| Built-in processor | Yes |
| Packet buffer memory | 18 MB |
| Stackable | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 127 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Heat dissipation | 434 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 18.4" (467.4 mm) |
| Depth | 17.4" (442.7 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 15.3 lbs (6.92 kg) |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Technical details | |
| Form factor | 1U |
| Product colour | Gray |
| Stackable | Yes |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Sustainability certificates | ENERGY STAR |
| Memory | |
| Packet buffer memory | 18 MB |
| Memory type | SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 4096 MB |
