Offer details
Description

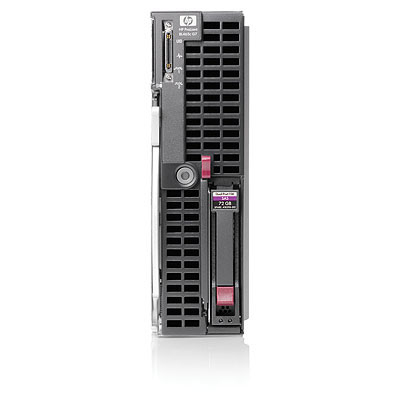

Featuring the latest AMD Opteron™6200 series processors and integrated HP Virtual Connect FlexFabric architecture, the BL465c G7 helps simplify network connections, lower infrastructure costs, and delivers the performance you expect for demanding application workloads.
Versatile, Dense Compute Power
• Up to two 4-, 8-, 12- or 16-core AMD Opteron processors deliver outstanding compute power
Integrated HP Virtual Connect FlexFabric Support
• Embedded NC551i dual-port 10 Gb Converged Network Adapter (CNA) delivers bandwidth for network intensive applications
Industry-Leading Infrastructure Management
• Save time and conserve valuable IT resources by simplifying remote management with HP Integrated Lights-Out 3 (iLO 3)
Versatile, Dense Compute Power
• Up to two 4-, 8-, 12- or 16-core AMD Opteron processors deliver outstanding compute power
Integrated HP Virtual Connect FlexFabric Support
• Embedded NC551i dual-port 10 Gb Converged Network Adapter (CNA) delivers bandwidth for network intensive applications
Industry-Leading Infrastructure Management
• Save time and conserve valuable IT resources by simplifying remote management with HP Integrated Lights-Out 3 (iLO 3)
Specifications
Processor | |
---|---|
Processor cache type | L3 |
Processor cache | 12 MB |
Processor frequency | 2.2 GHz |
Number of processors installed | 1 |
Processor upgrade | Yes |
Processor model | 6132 HE |
System bus rate | 6.40 GT/s |
Processor socket | Socket G34 |
Processor cores | 8 |
Motherboard southbridge | AMD SP5100 |
Motherboard chipset | AMD SR5690 |
Maximum number of SMP processors | 2 |
Processor family | AMD Opteron |
Memory | |
Internal memory | 8 GB |
Memory layout (slots x size) | 2 x 4 GB |
Memory slots | 16 |
Memory clock speed | 1333 MHz |
Maximum internal memory | 256 GB |
Internal memory type | DDR3-SDRAM |
ECC | Yes |
Storage | |
Number of HDDs installed | 0 |
RAID support | Yes |
RAID levels | 0, 1 |
Number of HDDs supported | 2 |
Maximum storage capacity | 2 TB |
Network | |
Networking features | 10 Gigabit Ethernet |
Ethernet LAN | Yes |
Ports & interfaces | |
VGA (D-Sub) ports quantity | 0 |
USB 2.0 ports quantity | 1 |
Serial ports quantity | 0 |
PS/2 ports quantity | 0 |
Ethernet LAN (RJ-45) ports | 2 |
Expansion slots | |
PCI Express x8 slots | 2 |
Design | |
Chassis type | Blade |
Graphics | |
Graphics card family | AMD |
Graphics card | RN50 |
Performance | |
Compatible operating systems | Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server Solaris VMware ESX Citrix XenServer |
Software | |
Compatible operating systems | Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server Solaris VMware ESX Citrix XenServer |
Operational conditions | |
Storage temperature (T-T) | -30 - 60 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | 10 - 35 °C |
Operating temperature (T-T) | 50 - 95 °F |
Operating altitude | 0 - 120078.7" (0 - 3050 m) |
Certificates | |
Compliance industry standards | IEEE 802.3ad, IEEE 802.3ap, IEEE 802.3x |
Technical details | |
Chassis type | Blade |
Weight & dimensions | |
Width | 2.19" (55.6 mm) |
Weight | 13.9 lbs (6.3 kg) |
Height | 7.15" (181.7 mm) |
Depth | 20.1" (509.5 mm) |
Other features | |
Disk array controller | P410i/1GB FBWC |
Mac compatibility | No |
Graphics card family | AMD |
Graphics card | RN50 |
