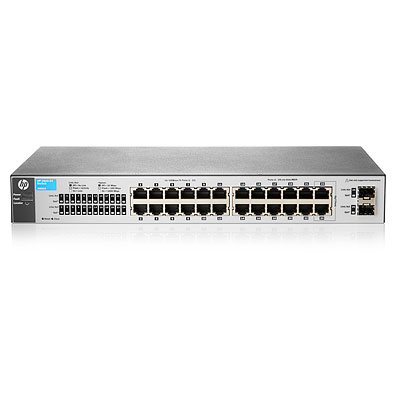

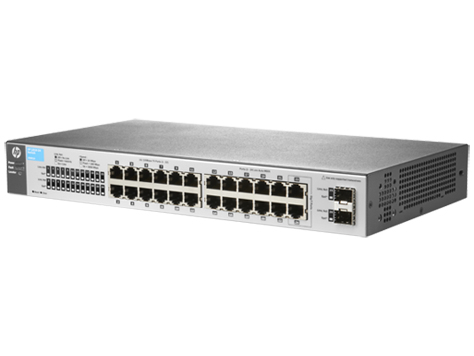

HPE V 1810-24 v2 Managed L2 Fast Ethernet (10/100) 1U Black
- Brand: HPE
- Category:
- SKU: J9801-61001
- EAN:
HPE V 1810-24 v2, Managed, L2, Fast Ethernet (10/100), Full duplex, Rack mounting, 1U
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
HP STOCK, NEEDS APPROVAL PRIOR TO PURCHASE. EMAIL FOR QUOTE |
J9801-61001 |
Related Products
- Rack Accessories
- InfiniBand & Fibre Optic Cables
- Warranty & Support Extensions
- Network Media Converters
- Network Transceiver Modules
-
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: Warranty & Support Extensions
-
Category: Network Media Converters -
Category: Network Media Converters
Description
HPE V 1810-24 v2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 12.4 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Throughput | 9.2 Mpps |
| Packet buffer memory | 0.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 12.4 Gbit/s |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Internal memory | 128 MB |
| Flash memory | 8 MB |
| Packet buffer memory | 0.5 MB |
| Stackable | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 22 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 13" (329.9 mm) |
| Depth | 6.81" (173 mm) |
| Height | 1.73" (43.9 mm) |
| Weight | 2.2 lbs (1 kg) |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Internal memory | 128 MB |
| Flash memory | 8 MB |
