Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
2 MP IP VANDAL DOME CAMERA |
10284077 | |||
|
2MP A-SERIES IR VANDAL DOME |
06YR82 | |||
|
2 MP IP Vandal Dome Camera |
HAN-ANVL6012R | |||
|

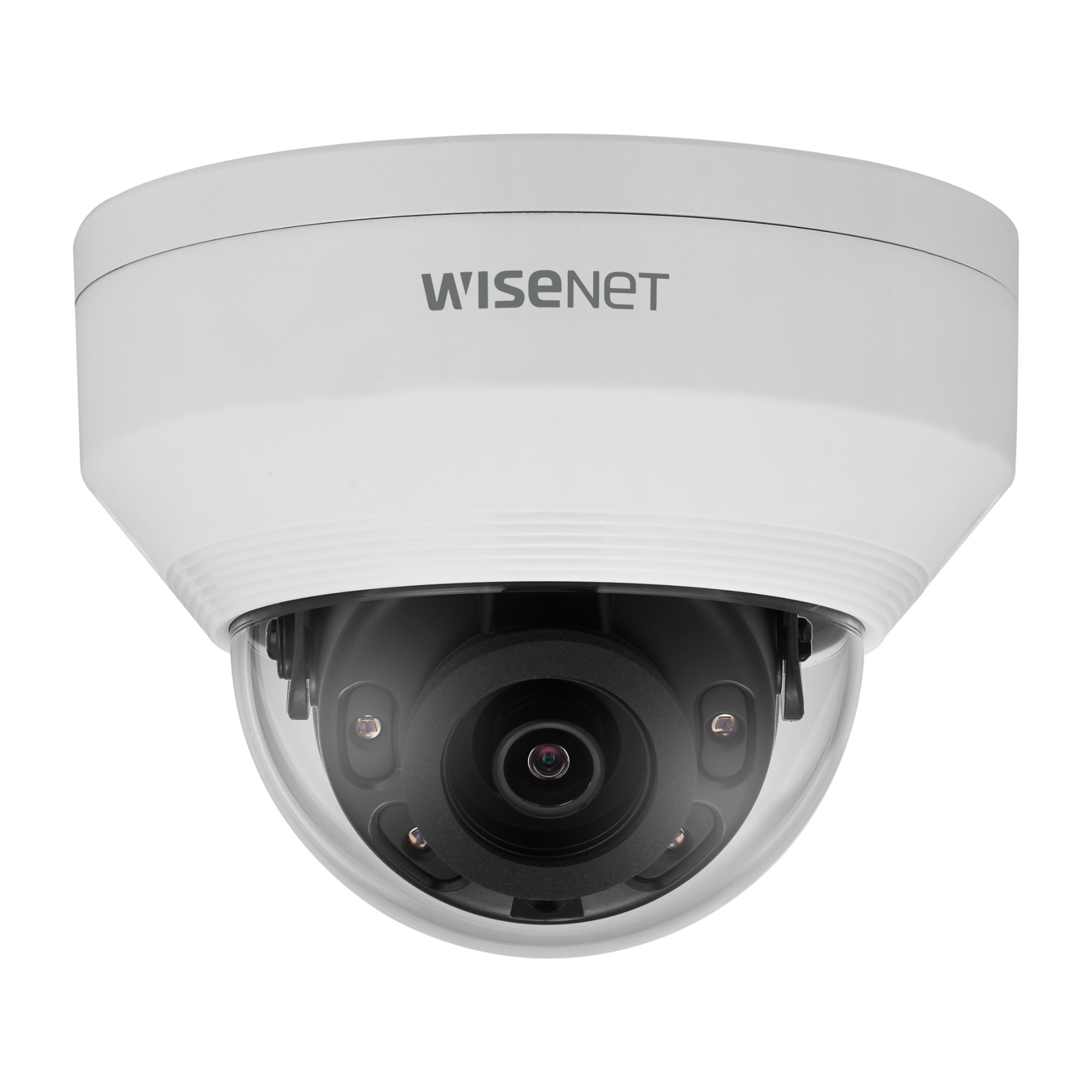

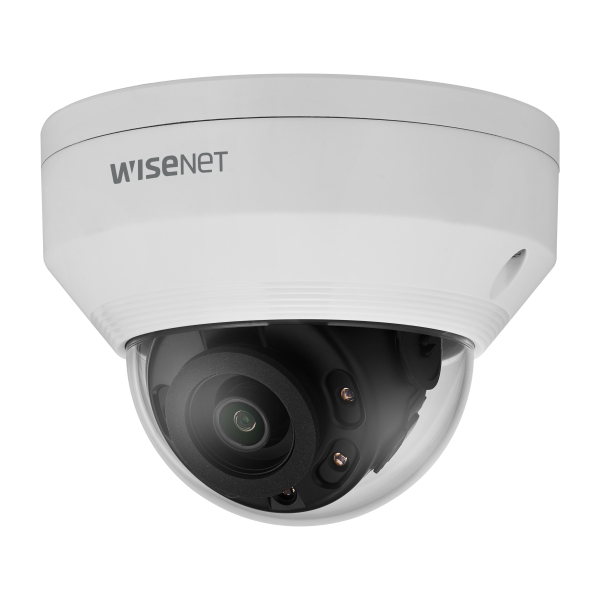

WISENET A SERIES OUTDOOR VANDAL DOME CAMERA, 2MP @ 30 FPS, 2.8MM FIXED FOCAL LENS, FOV H: 113.7 / V: 61.5 , WISESTREAM II, TRIPLE CODEC |
6667096 |
Description
2 MP IP VANDAL DOME CAMERA
Specifications
| Performance | |
|---|---|
| Languages support | English |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66 |
| Housing material | Aluminum, Plastic |
| Camera | |
| Tilt angle range | 0 - 67° |
| Pan range | 0 - 350° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 2~1/12000 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 113.7° |
| Lens viewing angle, vertical | 61.5° |
| Lens viewing angle, diagonal | 134.4° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 1/2.8" |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Detect distance | 988.2" (25.1 m) |
| Observe distance | 393.7" (10 m) |
| Recognize distance | 196.9" (5 m) |
| Identify distance | 98.4" (2.5 m) |
| Fixed focus | Yes |
| Lens diameter | 0.11" (2.8 mm) |
| Focal length range | 2.8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | Smart Super Noise Reduction (SSNR) |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 1280 x 960, 1280 x 1024 (SXGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 800 x 448, 1024 x 768 (XGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 640 x 360, 1280 x 720 (HD 720) |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Quality of Service (QoS) support | Yes |
| Number of users | 6 user(s) |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 |
| Number of simultaneous live view channels | 3 channels |
| Live view | Yes |
| Storage | |
| Maximum memory card size | 32 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), SDHC |
| Flash memory | 256 MB |
| RAM capacity | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Memory | |
| Flash memory | 256 MB |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Video compression formats | H.264, H.265, M-JPEG |
| Type | IP security camera |
| Form factor | Dome |
| Placement supported | Indoor & outdoor |
| Product colour | White |
| Mounting type | Ceiling |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| Security algorithms | EAP-LEAP, EAP-TLS, HTTPS |
| Mirror | Yes |
| Anti-flicker | Yes |
| Digest authentication | Yes |
| Material | |
| Housing material | Aluminum, Plastic |
| Management features | |
| Remotely operated | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 6.4 W |
| Power consumption (Power over Ethernet (PoE)) | 5 W |
| Certificates | |
| International Protection (IP) code | IP66 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -30 - 55 °C |
| Weight & dimensions | |
| Height | 3.61" (91.7 mm) |
| Diameter | 4.72" (12 cm) |
| Weight | 14.5 oz (410 g) |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
