Hanwha PNM-9000QB video surveillance kit Wired
- Brand: Hanwha
- Category:
- SKU: PNM-9000QB
- EAN: 8801089192301 8801089192295
4 ch, 2 MP, RJ-45, 4GB RAM, 512MB, MicroSD, PoE, 4x Remote Head Camera
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
WN7 MULTI HEAD CAMERA, 4 X2MP @ 30FPS, H.264TRIPLECODEC, EXTREME WDR |
10115494 | |||
|
REMOTE MULIT HEAD 2MP X 4CH |
9BL091 | |||
|
Remote head 2MP x 4CH camera |
HAN-PNM9000QB | |||
|
WN7 MULTI HEAD CAMERA, 4 X 2MP @ 30FPS, TRIPLE CODEC H.265/H.264/MJPEG, EXTREME WDR 150DB, DUAL SD CARDS SLOTS, WISESTREAM II, HALLWAY VIEW, HLC, |
6055911 |
Description

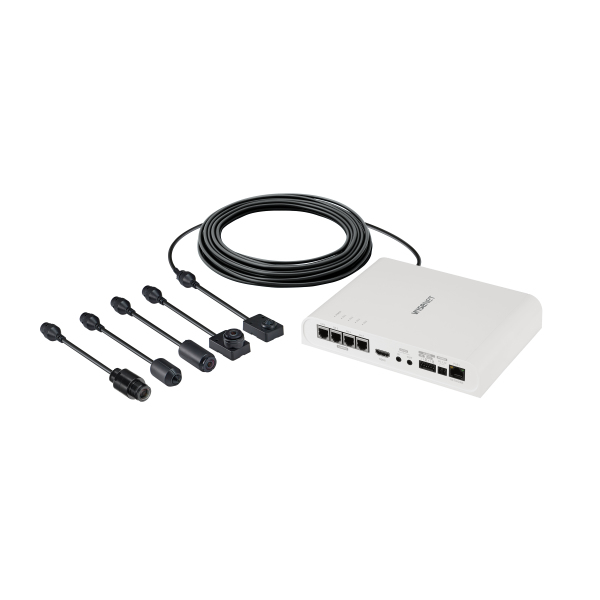

The PNM-9000QB Wisenet P series, powered by the Wisenet 7 SoC, supports 4 x 2MP lenses. Covert camera main module, full HD (1080p) 30fps, H.265/H.264/MJPEG, WiseStream II compression technology, 120dB extremeWDR, dual micro SD/SDHC/SDXC card slots, bi-directional audio, USB port for easy installation, advanced video analytics and sound detection, hallway view, HLC, defog detection, DIS, 12VDC/PoE, +14°F ~ 131°F compatible lens modules (SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA, optional, required)
Specifications
| Camera | |
|---|---|
| Supported resolutions | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Camera included | Yes |
| Colour | Yes |
| Built-in microphone | No |
| Connectivity technology | Wired |
| Camera interface | RJ-45 |
| Placement supported | Indoor |
| Rotating | No |
| Recorder | |
| Ethernet LAN | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIMSM, UPnP, Bonjour, LLDP |
| Internal memory | 4000 MB |
| Flash memory | 512 MB |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power source type | DC |
| Operational conditions | |
| Storage temperature (T-T) | 0 - 95 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | -50 - 60% |
| Technical details | |
| Video compression formats | H.264, H.265, M-JPEG |
| Weight & dimensions | |
| Width | 7.87" (200 mm) |
| Depth | 5.75" (146 mm) |
| Height | 1.46" (37 mm) |
