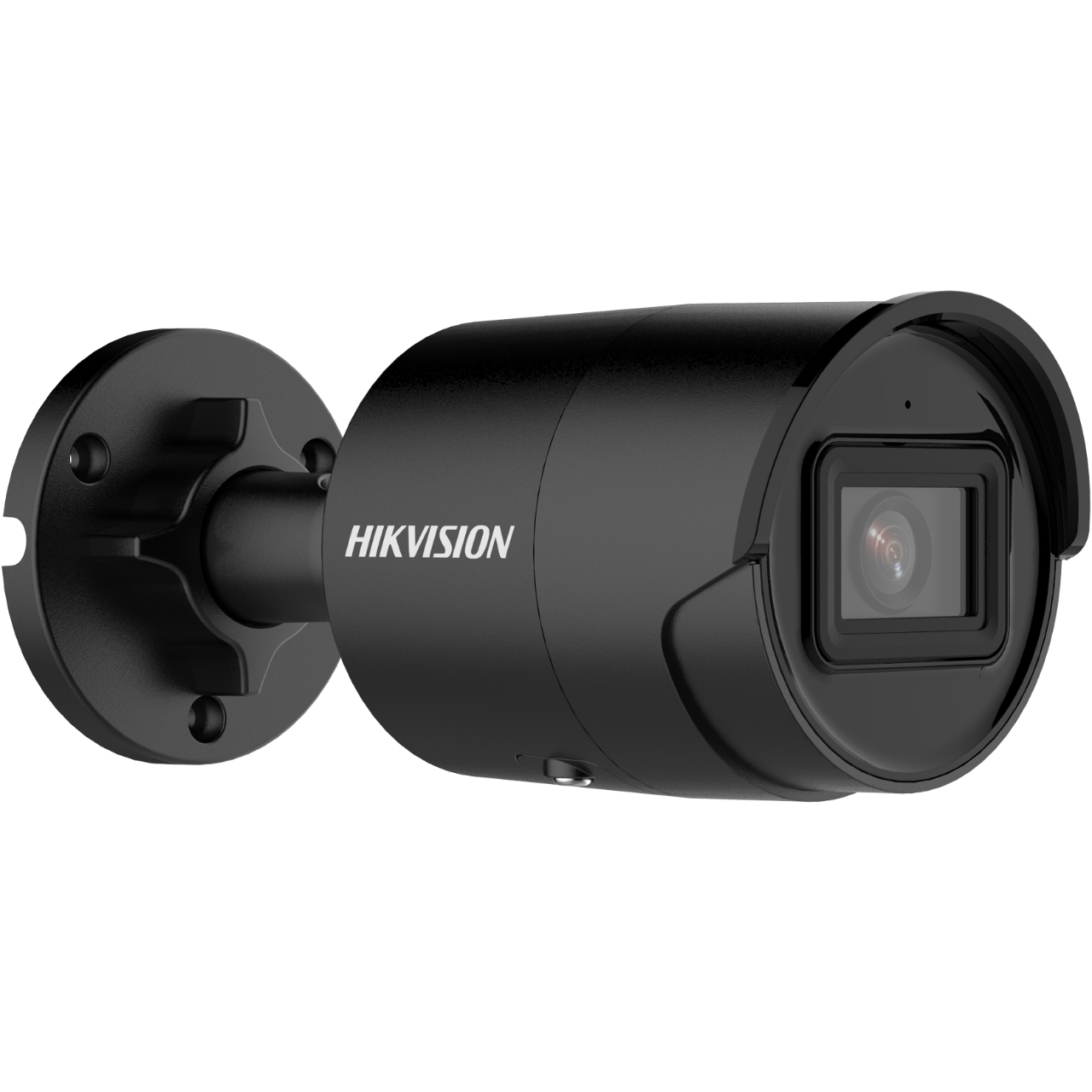

Hikvision DS-2CD2043G2-IU Bullet IP security camera Outdoor 2680 x 1520 pixels Ceiling/wall

  • Brand: Hikvision
  • Category:
  • SKU: DS-2CD2043G2-IU 2.8MM B
  • EAN: 6941264070580
1/3" CMOS, 2.8mm, 2688x1520, microSD, RJ-45, IP67, PoE, 70x161.7 mm, black

Trade Prices

Distributor Product SKU Stock Updated Price
ASI Corp

CM DS-2CD2043G2-IU 2.8mm BLACK 4MP AcuSense Fixed Bullet NT Camera

 278816 Register free see stock

Reasons To Buy

Deep Learning Algorithm

The Magic Behind It All<br>As its name implies, Hikvision AcuSense Technology provides accurate sensing in security hardware. Empowered by deep learning algorithms, AcuSense technology distinguishes people and vehicles from other moving targets.

Human and Vehicle Intrusion

Spotlights the Events that Matter<br>The most common concerns in perimeter protection are trespassing and vehicle break-ins. AcuSense helps you to focus on these events in two ways: alarm will only trigger when the preset intrusion type takes place, and related videos are sorted by categories for easier search.

Accurate Alarm for Human and Vehicle

You can focus on alarms triggered by humans and vehicles while false alarms triggered by small animals or other irrelevant objects are vastly reduced. Now you can enjoy this intelligent function with VCA or motion detection.

Visual and Auditory Warning

On-site response and deterrence methods using visual and customizable auditory warnings to add another layer of protection. Two-way audio function is now also available.

Search Targets Quickly by Type

Video clips are sorted by human and vehicle categories, and object classification vastly improves search efficiency.

Hikvision AcuSense technology

Integrated with automatic triggering, Hikvision AcuSense Technology takes alarm accuracy and search efficiency to a whole new level.

Specifications

Performance
Infrared (IR) cut-off filterYes
Number of languages33
TypeIP security camera
Connectivity technologyWired
Placement supportedOutdoor
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Design
Form factorBullet
Product colourBlack
Mounting typeCeiling/wall
International Protection (IP) codeIP67
Camera
Minimum illumination0 lx
Tilt angle range0 - 90°
Pan range0 - 360°
Angle of rotation360°
Camera shutter speed1/3 - 1/100000 s
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal103°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal122°
Progressive scanYes
Image sensor
Sensor typeCMOS
Progressive scanYes
Optical sensor size1/3"
Number of sensors1
Lens system
Number of lenses1
Maximum aperture number1.6
Recognize distance (wide)511.8" (13 m)
Observe distance (wide)1023.6" (26 m)
Identify distance (wide)236.2" (6 m)
Detect distance (wide)2637.8" (67 m)
Fixed focal length0.11" (2.8 mm)
Night vision
Night visionYes
Night vision distance40 m
LED typeIR
Infra-red wavelength850 nm
Video
Noise reductionYes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes
Region of Interest (ROI) encodingYes
Highlight Compensation (HLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate32 Kbps - 8 Mbps
Back Light Compensation (BLC)Yes
Noise reduction technology3D noise reduction
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Maximum resolution2680 x 1520 pixels
Frame rate30 fps
Video streamingYes
Total megapixels4 MP
Audio
Voice codecsG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Sample rate48 kHz
Audio formats supportedAAC, MP3
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Quality of Service (QoS) supportYes
Number of users32 user(s)
Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
Storage
Maximum memory card size256 GB
Card reader integratedYes
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Hard drive
Built-in HDDNo
Technical details
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
TypeIP security camera
Form factorBullet
Placement supportedOutdoor
Product colourBlack
Mounting typeCeiling/wall
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Reset buttonYes
Progressive scanYes
Security
Intelligent Video Surveillance (IVS) system featuresFace detection
Video motion detectionYes
Password protectionYes
HeartbeatYes
Anti-flickerYes
Management features
Web-based managementYes
Reset buttonYes
Behavior analysisIntrusion detection, Line crossing detection
Power
Power source typeDC, PoE
Power consumption (max)6 W
Power consumption (Power over Ethernet (PoE))7 W
DC output voltage12
Certificates
International Protection (IP) codeIP67
Operational conditions
Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Weight & dimensions
Length6.37" (161.7 mm)
Diameter2.76" (7 cm)
Weight17.3 oz (490 g)
Package width8.5" (216 mm)
Package height4.65" (118 mm)
Package depth4.76" (121 mm)
Package weight25.5 oz (724 g)
Packaging data
Package width8.5" (216 mm)
Package height4.65" (118 mm)
Package depth4.76" (121 mm)
Package weight25.5 oz (724 g)
Other features
Package width8.5" (216 mm)
Package height4.65" (118 mm)
Package depth4.76" (121 mm)
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Packaging content
Number of cameras1
