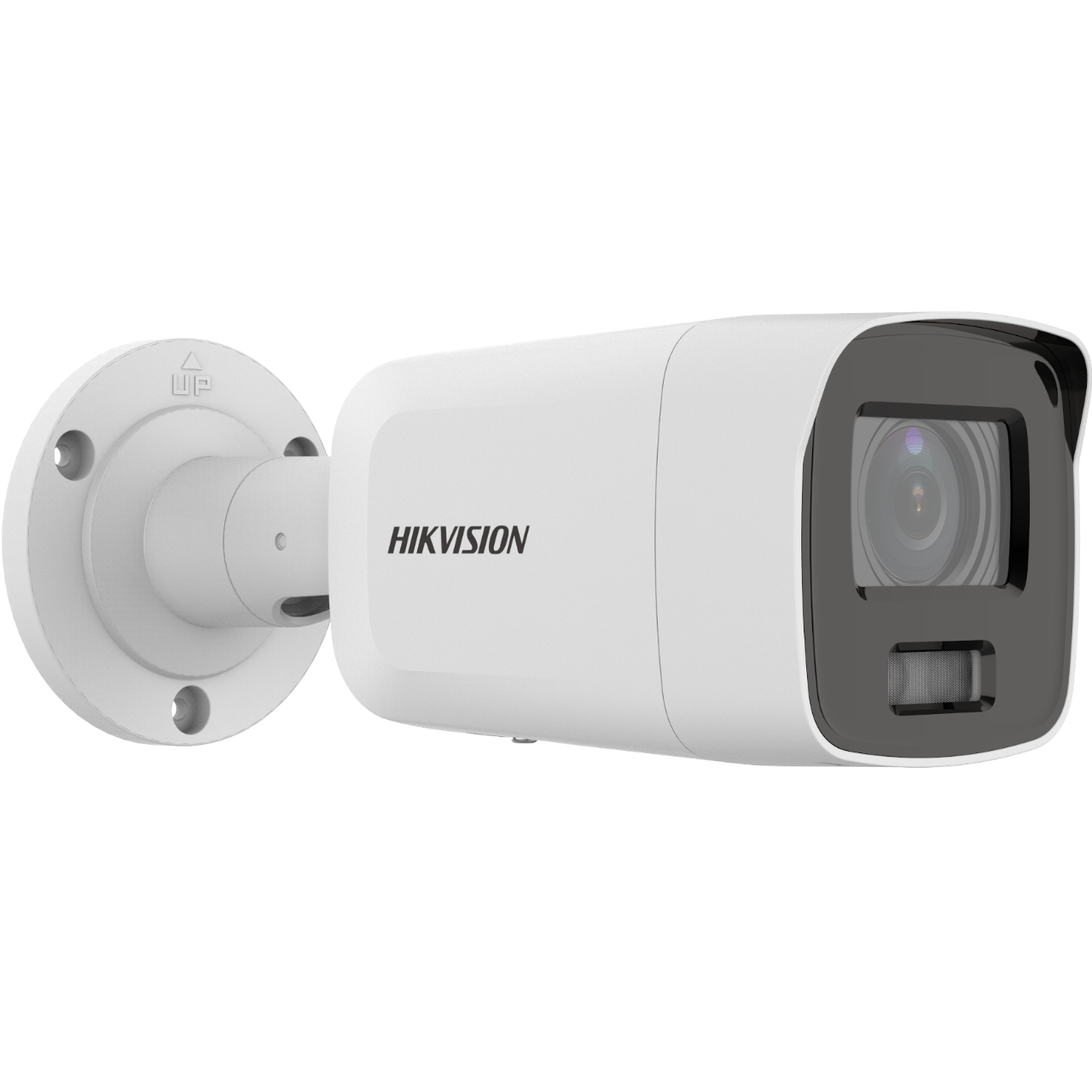

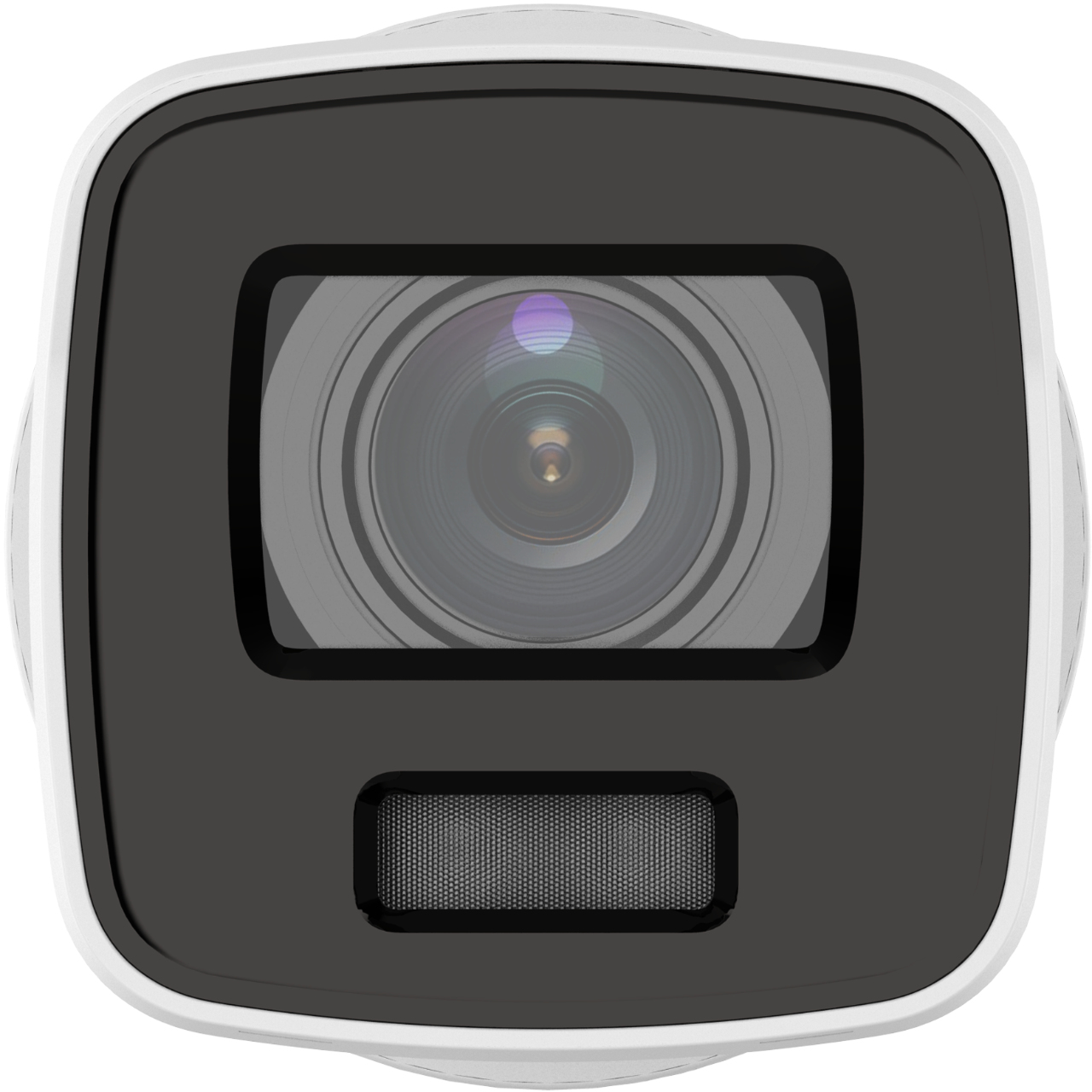

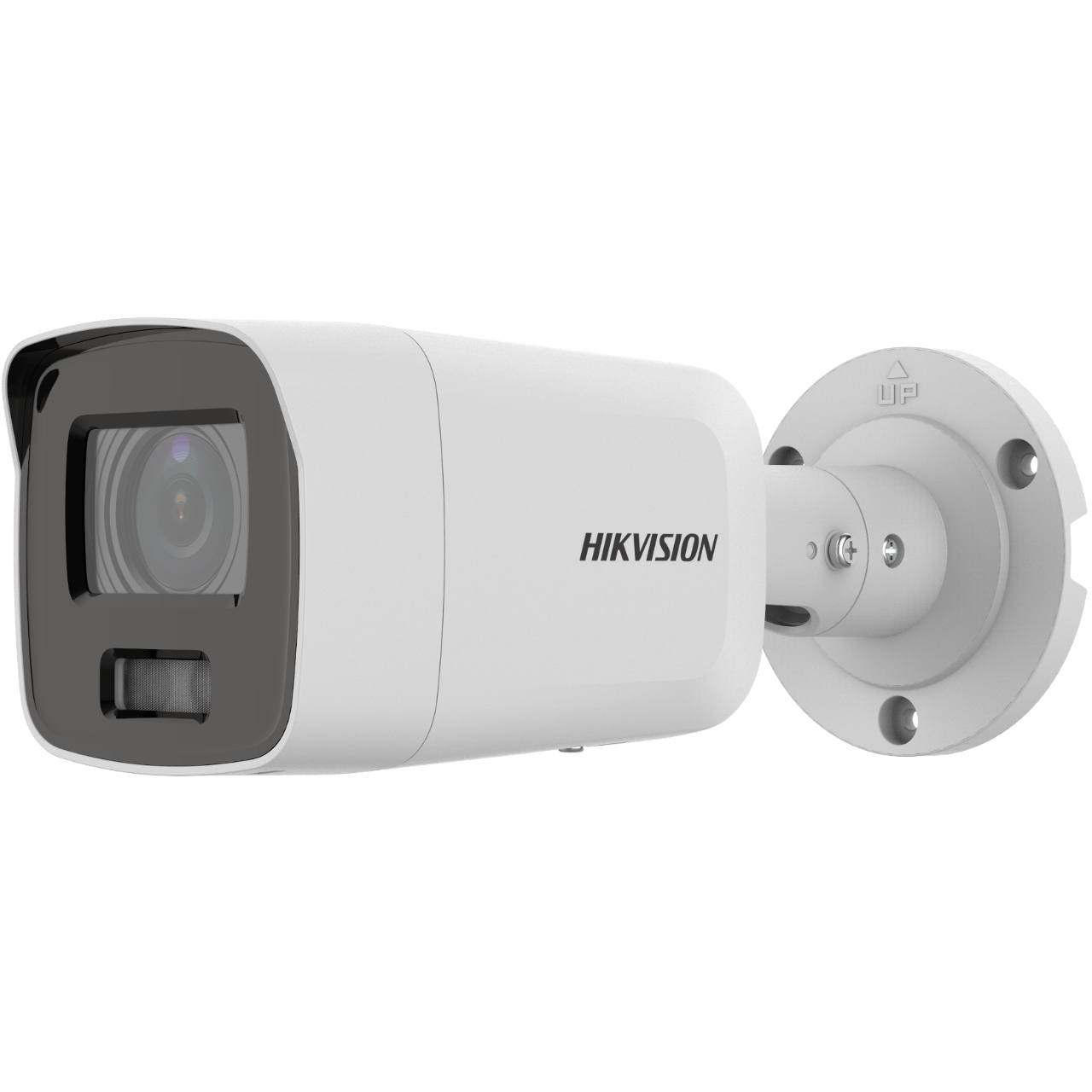

Hikvision DS-2CD2087G2-L(2.8MM) security camera Bullet IP security camera Outdoor 3840 x 2160 pixels Wall

Hikvision DS-2CD2087G2-L(2.8MM) security camera Bullet IP security camera Outdoor 3840 x 2160 pixels Wall

  • Brand: Hikvision
  • Category:
  • SKU: DS-2CD2087G2-L 2.8MM
  • EAN: 6941264075967 0842571135725
1/1.2″ Progressive Scan CMOS, 3840 × 2160, 30 fps, Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°, Bullet, 2.8 mm

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

OT BL 2.8MM 8MP 24HRX7 COLOR

 10097674 Register free see stock
ASI Corp

CM DS-2CD2087G2-L 2.8mm 1 1.2 Progressive Scan CMOS Retail

 251566

Reasons To Buy

What is Hikvision ColorVu technology?

Hikvision ColorVu Cameras’ powerful ability to capture details in low lighting comes from two specific breakthroughs in hardware technologies: advanced lenses and high-performance sensors. Coupled with a supplemental light for extremely dark scenarios, ColorVu cameras guarantee video with colorful details when you need them.

The key benefits of full-color video

True color information<br>- Accurate color rendering<br>- Excellent performance in low-light environments<br><br>More details<br>- Clearly captured color information and richer details compared to black and white imaging<br><br>Better visual experience<br>- Balanced brightness<br>- F1.0 super aperture and advanced sensor guarantee realistic rendering

Description

Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more light
to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light. In zero-light scenarios, built-in, warm supplemental lighting works to
guarantee colorful images.

Specifications

Performance
Number of languages33
Languages supportMulti
TypeIP security camera
Connectivity technologyWired
Placement supportedOutdoor
Day/night modeYes
CertificationClass B FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Design
Form factorBullet
Product colourWhite
Mounting typeWall
International Protection (IP) codeIP67
Housing materialMetal
Camera
Minimum illumination0 lx
Tilt angle range0 - 90°
Pan range0 - 360°
Angle of rotation360°
Camera shutter speed1/3 - 1/100000 s
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal102°
Lens viewing angle, vertical52°
Lens viewing angle, diagonal124°
Progressive scanYes
Image sensor
Sensor typeCMOS
Progressive scanYes
Optical sensor size1/1.2"
Number of sensors1
Lens system
Number of lenses1
Maximum aperture number1
Fixed focal length0.11" (2.8 mm)
Night vision
Night visionYes
Night vision distance40 m
Video
Noise reductionYes
Image quality adjustmentBrightness, Contrast, Mirror, Saturation, Sharpness
Privacy maskingYes
Gain control typeAuto
Region of Interest (ROI) encodingYes
Highlight Compensation (HLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate32 Kbps - 16 Mbps
Back Light Compensation (BLC)Yes
Noise reduction technology3D noise reduction
Video compression formatsH.264, H.264+, H.265, H.265+
Maximum resolution3840 x 2160 pixels
Video formats supportedH.264, H.264+, H.265, H.265+
Supported graphics resolutions320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3072 x 1728, 3840 x 2160
Supported video modes240p, 360p, 480p, 720p, 1080p, 1520p, 2160p
Frame rate30 fps
Video streamingYes
Total megapixels8 MP
Audio
Signal-to-Noise Ratio (SNR)130 dB
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Number of users32 user(s)
Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Storage
Maximum memory card size256 GB
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Technical details
Video compression formatsH.264, H.264+, H.265, H.265+
TypeIP security camera
Form factorBullet
Placement supportedOutdoor
Product colourWhite
Mounting typeWall
Day/night modeYes
Reset buttonYes
Progressive scanYes
Security
Video motion detectionYes
IP address filteringYes
HTTPS encryptionYes
Active tampering alarmYes
Password protectionYes
MirrorYes
HeartbeatYes
Anti-flickerYes
Material
Housing materialMetal
Management features
Web browserYes
Reset buttonYes
Behavior analysisIntrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Power
Power source typeDC, PoE
Power consumption (max)7 W
Power consumption (Power over Ethernet (PoE))8.5 W
DC output voltage12
Certificates
International Protection (IP) codeIP67
CertificationClass B FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Operational conditions
Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Weight & dimensions
Length8.47" (215.2 mm)
Width3.1" (78.8 mm)
Height3.09" (78.6 mm)
Weight30.3 oz (860 g)
Package width12.4" (315 mm)
Package height5.55" (141 mm)
Package depth5.35" (136 mm)
Package weight2.78 lbs (1.26 kg)
Packaging data
Package width12.4" (315 mm)
Package height5.55" (141 mm)
Package depth5.35" (136 mm)
Package weight2.78 lbs (1.26 kg)
Other features
Package width12.4" (315 mm)
Package height5.55" (141 mm)
Package depth5.35" (136 mm)
Video compression formatsH.264, H.264+, H.265, H.265+
Packaging content
Number of cameras1
Logistics data
Harmonized System (HS) code85258900
