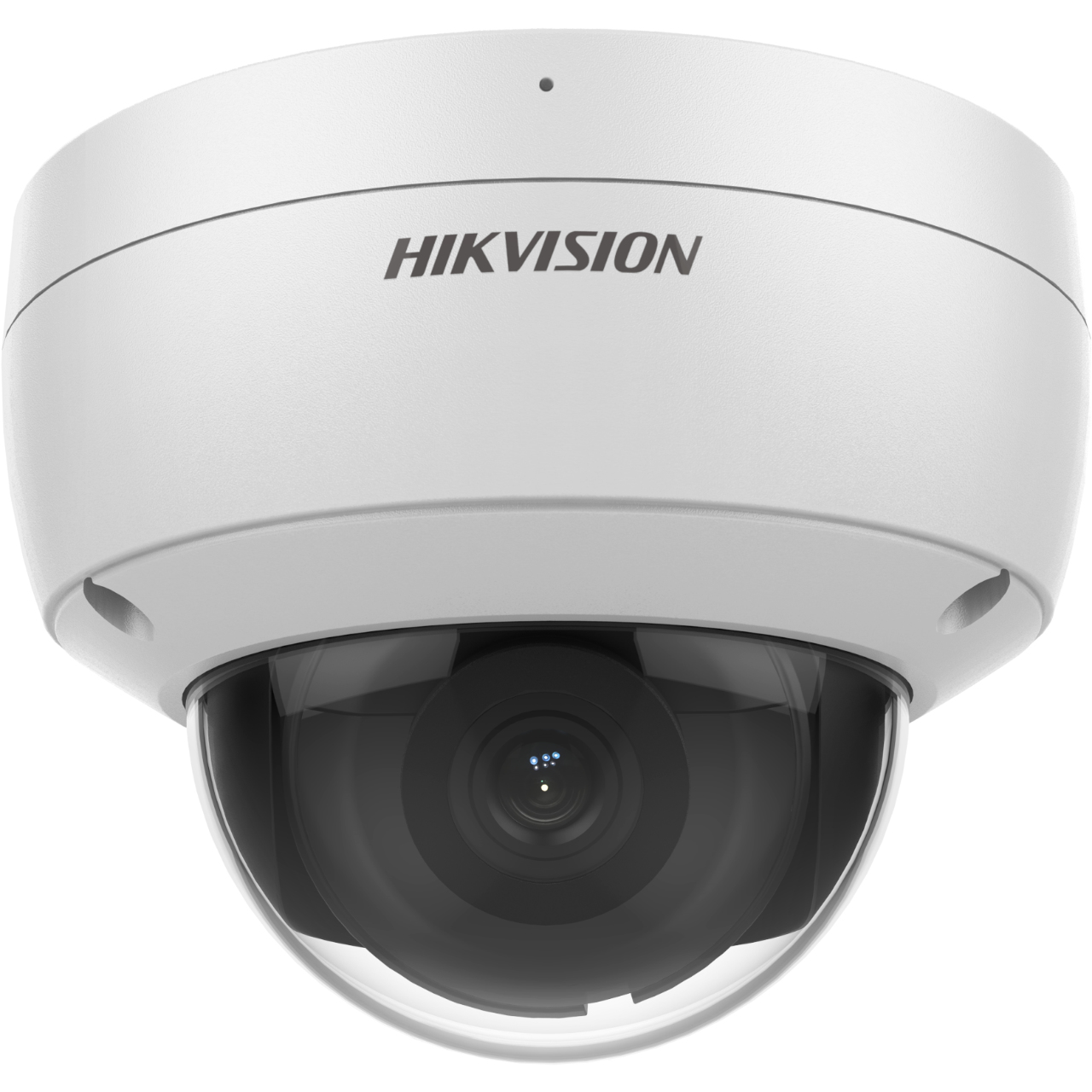

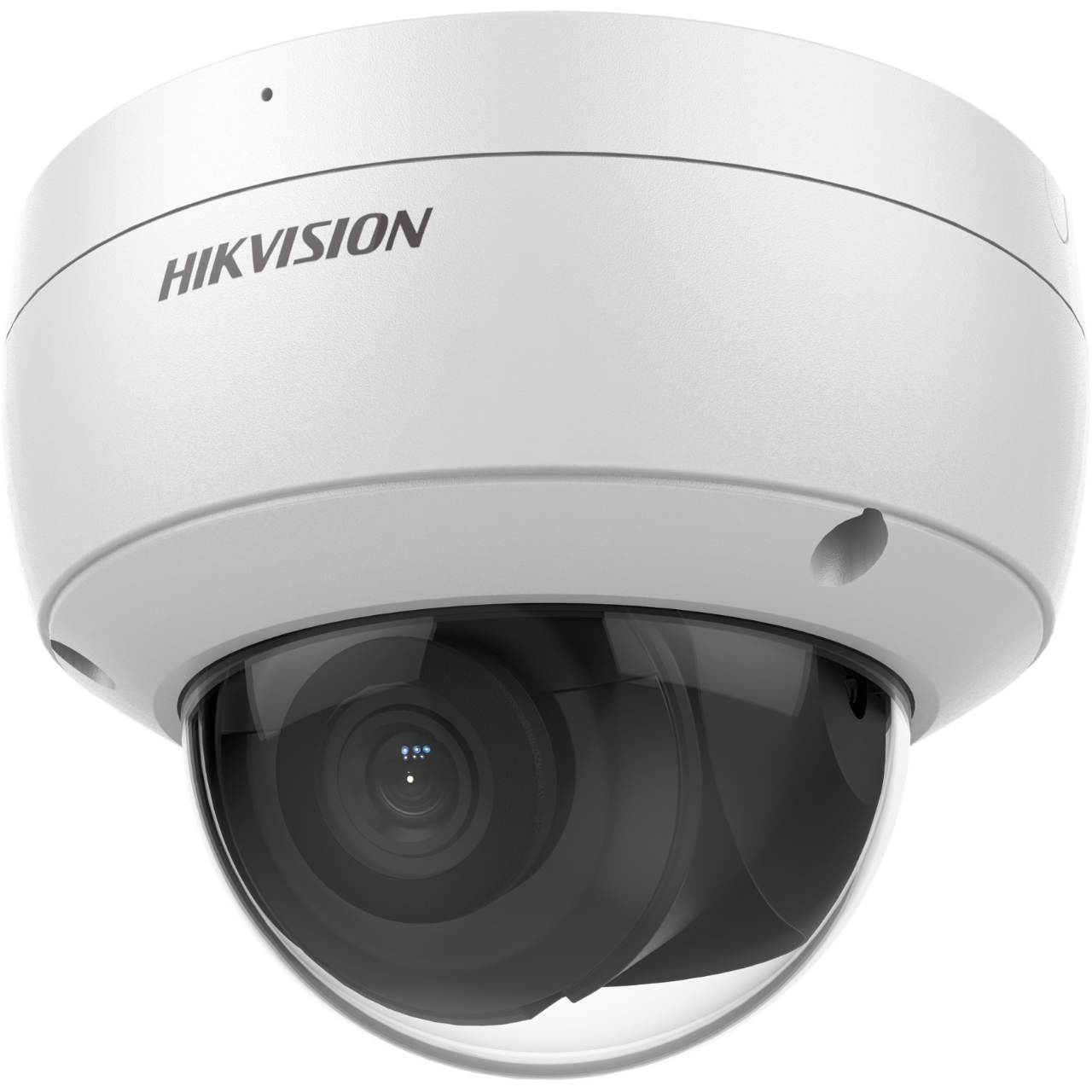

Hikvision DS-2CD2143G2-IU Dome IP security camera Outdoor 2680 x 1520 pixels Ceiling/wall

Hikvision DS-2CD2143G2-IU Dome IP security camera Outdoor 2680 x 1520 pixels Ceiling/wall

  • Brand: Hikvision
  • Category:
  • SKU: DS-2CD2143G2-IU 2.8MM
  • EAN: 0842571140231
4 MP, 1/3" CMOS, 2.8mm, IR, 2688x1520, RJ-45, MicroSD, 12 VDC, PoE, IP67, IK10, 121.4x92.2 mm

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

ACUSENSE BLACK OUTDOOR DOME,4MP, H265+, 2.8MM,DAY/NIGHT, 120DB

 10247527 Register free see stock
Anixter

ACUSENSE OUTDOOR DOME, 4MP,H265+, 2.8MM, DAY/NIGHT,120DB WDR, EXIR 2.0

 10247528
ASI Corp

CM DS-2CD2143G2-IU 2.8mm AcuSense Outdoor Dome 4MP H265+ 2.8mm

 261409

Reasons To Buy

Search Targets Quickly by Type

Video clips are sorted by human and vehicle categories, and object classification vastly improves search efficiency.

Visual and Auditory Warning

On-site response and deterrence methods using visual and customizable auditory warnings to add another layer of protection. Two-way audio function is now also available.

Accurate Alarm for Human and Vehicle

You can focus on alarms triggered by humans and vehicles while false alarms triggered by small animals or other irrelevant objects are vastly reduced. Now you can enjoy this intelligent function with VCA or motion detection.

Human and Vehicle Intrusion

Spotlights the Events that Matter<br>The most common concerns in perimeter protection are trespassing and vehicle break-ins. AcuSense helps you to focus on these events in two ways: alarm will only trigger when the preset intrusion type takes place, and related videos are sorted by categories for easier search.

Deep Learning Algorithm

The Magic Behind It All<br>As its name implies, Hikvision AcuSense Technology provides accurate sensing in security hardware. Empowered by deep learning algorithms, AcuSense technology distinguishes people and vehicles from other moving targets.

Hikvision AcuSense technology

Integrated with automatic triggering, Hikvision AcuSense Technology takes alarm accuracy and search efficiency to a whole new level.

Description

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Specifications

Performance
Infrared (IR) cut-off filterYes
Number of languages33
TypeIP security camera
Connectivity technologyWired
Placement supportedOutdoor
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationFCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Design
IK codeIK10
Form factorDome
Product colourWhite
Mounting typeCeiling/wall
International Protection (IP) codeIP65
Housing materialAluminum
Camera
Minimum illumination0 lx
Tilt angle range0 - 75°
Pan range0 - 355°
Angle of rotation355°
Camera shutter speed1/3 - 1/100000 s
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal103°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal122°
Progressive scanYes
Image sensor
Sensor typeCMOS
Progressive scanYes
Optical sensor size1/3"
Number of sensors1
Lens system
Number of lenses1
Maximum aperture number1.6
Recognize distance (wide)511.8" (13 m)
Observe distance (wide)1023.6" (26 m)
Identify distance (wide)236.2" (6 m)
Detect distance (wide)2637.8" (67 m)
Fixed focal length0.11" (2.8 mm)
Night vision
Night visionYes
Night vision distance30 m
LED typeIR
Infra-red wavelength850 nm
Video
Noise reductionYes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes
Region of Interest (ROI) encodingYes
Highlight Compensation (HLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate32 Kbps - 8 Mbps
Back Light Compensation (BLC)Yes
Noise reduction technology3D noise reduction
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Maximum resolution2680 x 1520 pixels
Supported graphics resolutions640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Frame rate30 fps
Video streamingYes
Total megapixels4 MP
Audio
Voice codecsG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Audio input channels1.0 channels
Audio output channels1.0 channels
Sample rate48 kHz
Built-in microphoneYes
Audio formats supportedAAC, MP3, PCM
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Quality of Service (QoS) supportYes
Number of users32 user(s)
Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
Storage
Maximum memory card size256 GB
Card reader integratedYes
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Hard drive
Built-in HDDNo
Technical details
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
TypeIP security camera
Form factorDome
Placement supportedOutdoor
Product colourWhite
Mounting typeCeiling/wall
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Reset buttonYes
Progressive scanYes
Security
Intelligent Video Surveillance (IVS) system featuresFace detection
Video motion detectionYes
IP address filteringYes
HTTPS encryptionYes
Password protectionYes
MirrorYes
HeartbeatYes
Anti-flickerYes
Material
Housing materialAluminum
Management features
Web browserYes
Web-based managementYes
Reset buttonYes
Behavior analysisIntrusion detection, Line crossing detection
Power
Power source typeDC, PoE
Power consumption (max)5 W
Power consumption (Power over Ethernet (PoE))6.5 W
DC output voltage12
DC output current0.4 A
Certificates
International Protection (IP) codeIP65
CertificationFCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Operational conditions
Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Weight & dimensions
Height3.33" (84.7 mm)
Diameter4.37" (11.1 cm)
Weight18.7 oz (530 g)
Package width5.91" (150 mm)
Package height5.55" (141 mm)
Package depth5.91" (150 mm)
Package weight28.4 oz (806 g)
Packaging data
Package width5.91" (150 mm)
Package height5.55" (141 mm)
Package depth5.91" (150 mm)
Package weight28.4 oz (806 g)
Other features
Package width5.91" (150 mm)
Package height5.55" (141 mm)
Package depth5.91" (150 mm)
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Packaging content
Number of cameras1
