Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
OTTR 2.8MM 4MP 24HR 7 COLOR |
10195359 | |||
|

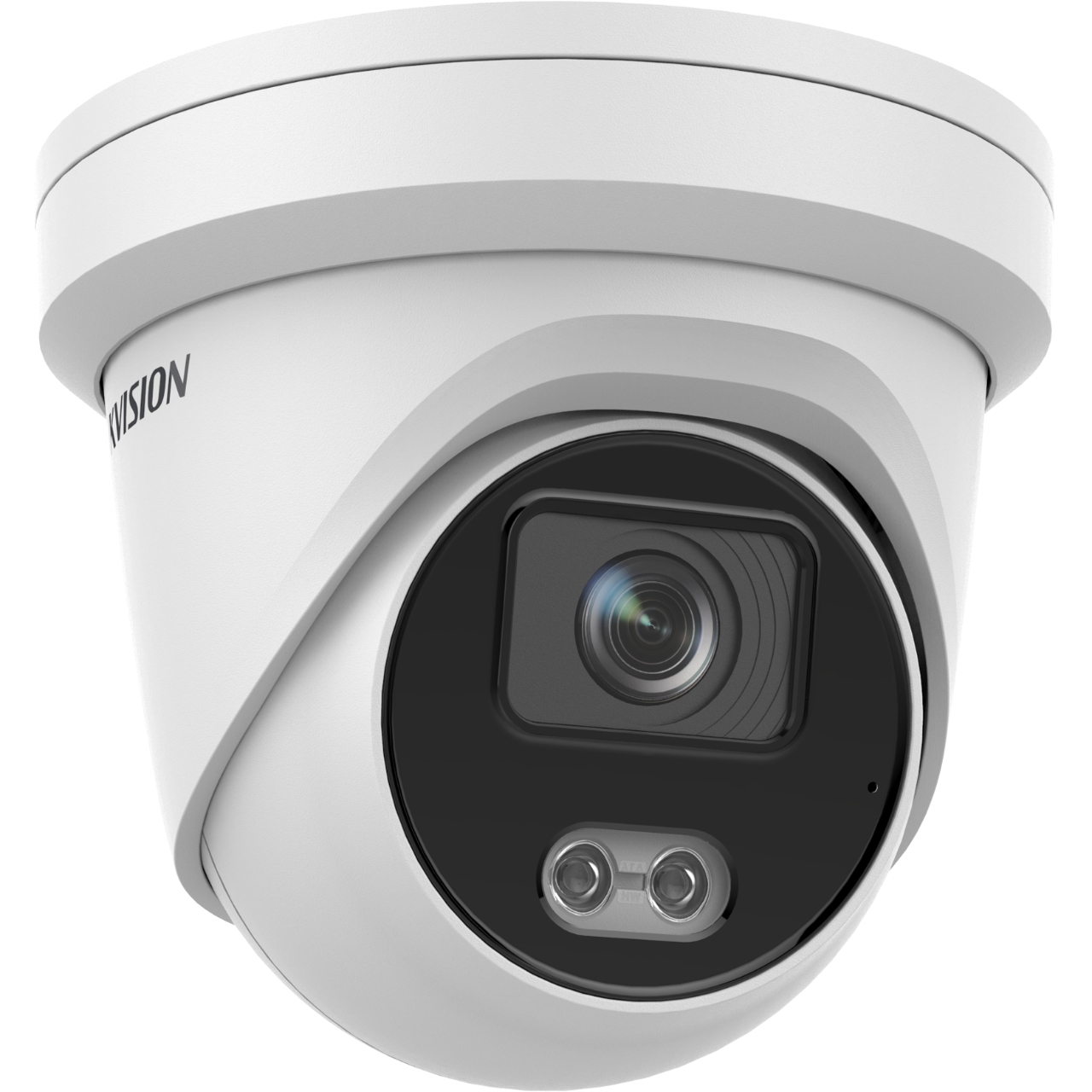

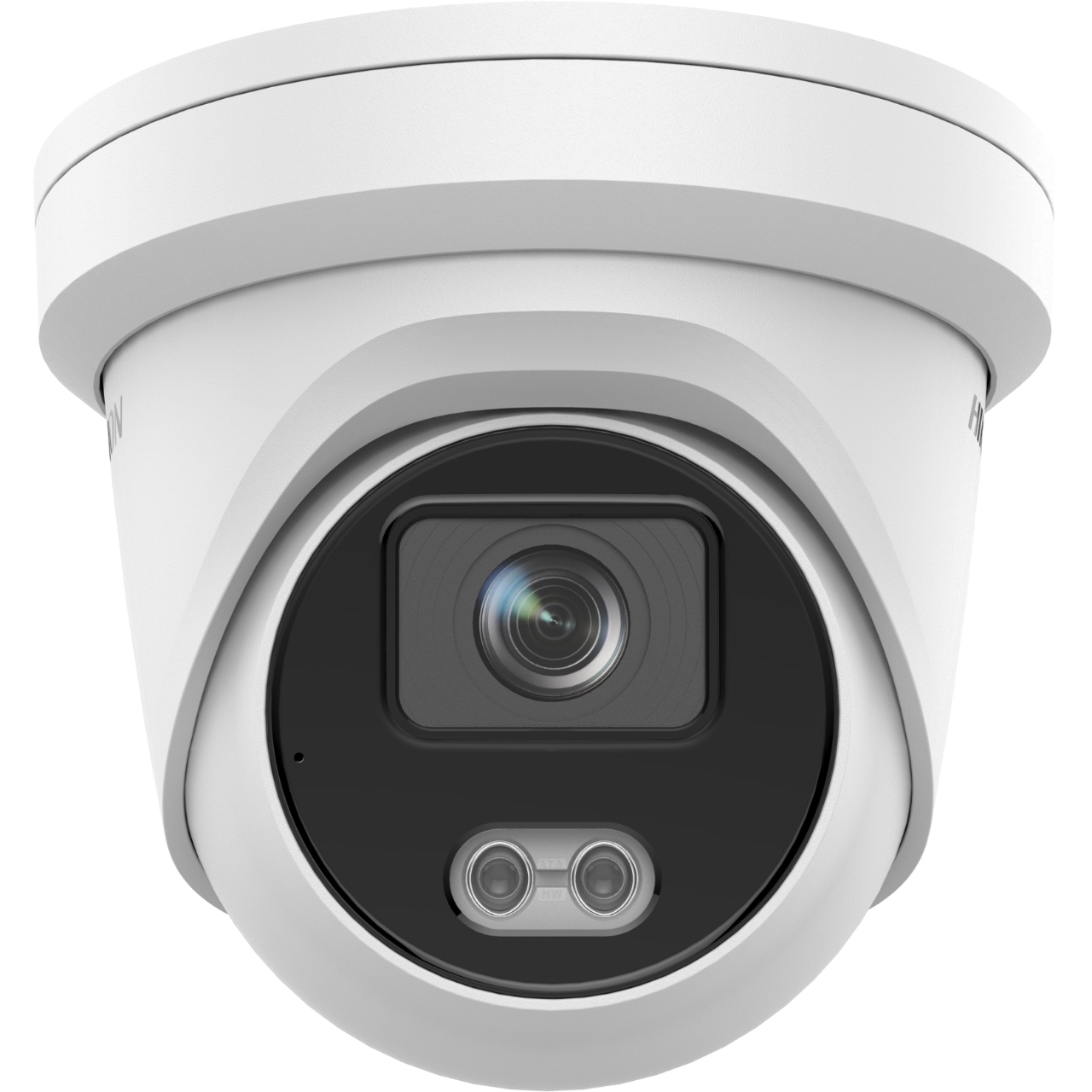

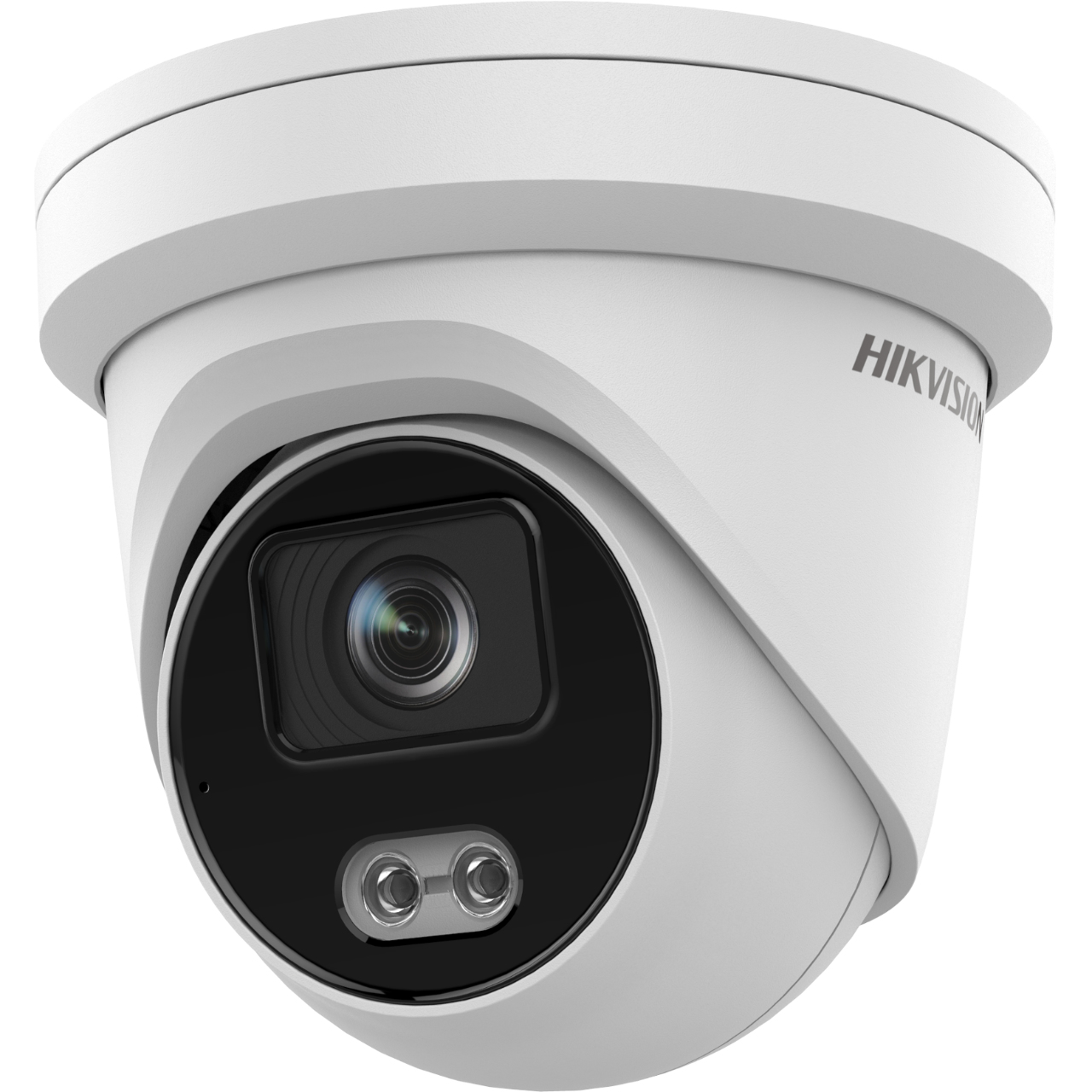

CM DS-2CD2347G2-LU 2.8mm Turret Network Camera 4MP ColorVu Fixed RTL |
259203 |
Description
OTTR 2.8MM 4MP 24HR 7 COLOR
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 33 |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP67 |
| Housing material | Metal, Plastic |
| Camera | |
| Minimum illumination | 0 lx |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 360° |
| Angle of rotation | 360° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 109° |
| Lens viewing angle, vertical | 55° |
| Lens viewing angle, diagonal | 138° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/1.8" |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 1 |
| Recognize distance (wide) | 511.8" (13 m) |
| Observe distance (wide) | 826.8" (21 m) |
| Identify distance (wide) | 236.2" (6 m) |
| Detect distance (wide) | 2559.1" (65 m) |
| Closest focusing distance | 98.4" (2.5 m) |
| Fixed focal length | 0.11" (2.8 mm) |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Gain control type | Auto |
| Region of Interest (ROI) encoding | Yes |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Maximum resolution | 2688 x 1520 pixels |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Audio | |
| Voice codecs | AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Sample rate | 48 kHz |
| Built-in microphone | Yes |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Storage | |
| Maximum memory card size | 256 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Type | IP security camera |
| Form factor | Dome |
| Placement supported | Outdoor |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Reset button | Yes |
| Progressive scan | Yes |
| Security | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Heartbeat | Yes |
| Anti-flicker | Yes |
| Material | |
| Housing material | Metal, Plastic |
| Management features | |
| Web browser | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 6.6 W |
| Power consumption (Power over Ethernet (PoE)) | 7.6 W |
| DC output voltage | 12 |
| Certificates | |
| International Protection (IP) code | IP67 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Height | 4.93" (125.2 mm) |
| Diameter | 5.43" (13.8 cm) |
| Weight | 28.9 oz (820 g) |
| Package width | 6.69" (170 mm) |
| Package height | 5.91" (150 mm) |
| Package depth | 6.69" (170 mm) |
| Package weight | 2.51 lbs (1.14 kg) |
| Packaging data | |
| Package width | 6.69" (170 mm) |
| Package height | 5.91" (150 mm) |
| Package depth | 6.69" (170 mm) |
| Package weight | 2.51 lbs (1.14 kg) |
| Other features | |
| Package width | 6.69" (170 mm) |
| Package height | 5.91" (150 mm) |
| Package depth | 6.69" (170 mm) |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Packaging content | |
| Number of cameras | 1 |
