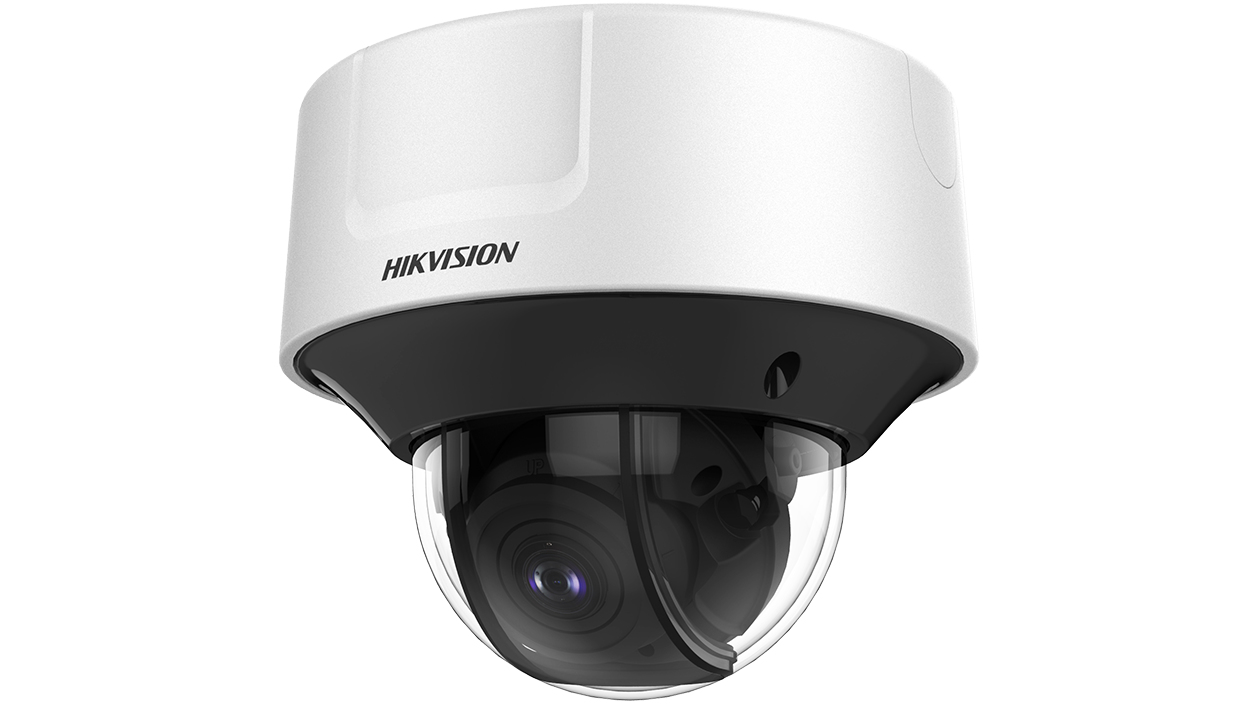

Hikvision DS-2CD5546G0-IZ(H)S security camera IP security camera Outdoor 2560 x 1440 pixels
- Brand: Hikvision
- Category:
- SKU: DS-2CD5546G0-IZHS
- EAN: 0842571117844
4MP DarkFighter Outdoor Moto Varifocal Dome Network Camera
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Camera DS-2CD5546G0-IZHS DM OUT 4MP 2.8-12 MZ DN WDR IR Retail |
223697 |
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 32 |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| People counting function | Yes |
| Design | |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Camera | |
| Minimum illumination | 0 lx |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| Camera shutter speed | 1/100 s |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/1.8" |
| Lens system | |
| Maximum aperture number | 32 |
| Auto focus | Yes |
| Minimum aperture number | 8 |
| Focus | Motorized/Manual |
| Night vision | |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Saturation, Brightness, Contrast, Sharpness, DNR |
| Region of Interest (ROI) encoding | Yes |
| Highlight Compensation (HLC) | Yes |
| Bit rate | 32 Kbps - 16 Mbps |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Maximum resolution | 2560 x 1440 pixels |
| Video streaming | Yes |
| Audio | |
| Voice codecs | G.711, G.722.1, G.726, MP2L2, PCM |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Sample rate | 48 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Number of users | 32 user(s) |
| Ethernet LAN | Yes |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Storage | |
| Maximum memory card size | 256 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Composite video out | 1 |
| Connectivity technology | Wired |
| Technical details | |
| Focus | Motorized/Manual |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Type | IP security camera |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Progressive scan | Yes |
| Security | |
| Motion sensor | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Heartbeat | Yes |
| Anti-flicker | Yes |
| Management features | |
| Web browser | Yes |
| Power | |
| Power source type | DC |
| DC output voltage | 12 |
| Certificates | |
| International Protection (IP) code | IP67 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 65 °C |
| Storage temperature (T-T) | -30 - 65 °C |
| Weight & dimensions | |
| Length | 5.52" (140.3 mm) |
| Diameter | 6.38" (16.2 cm) |
| Weight | 3.2 lbs (1.45 kg) |
| Packaging content | |
| Manual | Yes |
| Other features | |
| Focus | Motorized/Manual |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
