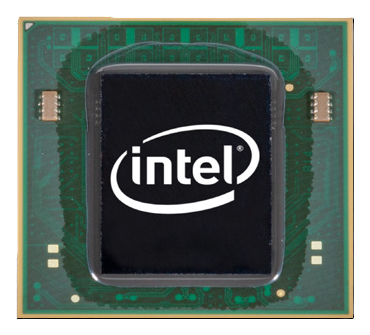

Intel ® Ethernet Controller X550-AT2
- Brand: Intel
- Category:
- SKU: ELX550AT2
- EAN: 8592978069438 7330381158742
Intel ® Ethernet Controller X550-AT2, 28 nm, 17 x 17 mm, 11 W, FreeBSD 10.2, Linux RHEL 6.7, Linux RHEL 7.1, Linux SLES 11 SP4, Linux SLES 11 SP4-IA64, Linux..., PCI Express, 1000,2500,5000,10000 Mbit/s
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
INTEL ETHERN CNTRLR X550-AT2 |
JZ5250 |
Description
Intel ® Ethernet Controller X550-AT2. Lithography: 28 nm, Package size: 17 x 17 mm, Thermal Design Power (TDP): 11 W. Host interface: PCI Express. Ethernet LAN data rates: 1000,2500,5000,10000 Mbit/s, Copper ethernet cabling technology: 10GBASE-T, 100BASE-T, 1000BASE-T. Export Control Classification Number (ECCN): 5A992CN3, Commodity Classification Automated Tracking System (CCATS): G054018. Launch date: Q4'15, Storage Over Ethernet: iSCSI, FCoE, NFS, Product codename: Sageville
Specifications
| Features | |
|---|---|
| Thermal Design Power (TDP) | 11 W |
| Status | Launched |
| Fiber Channel over Ethernet | Yes |
| On-board graphics card | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Jumbo frames support | Yes |
| PCI-SIG* SR-IOV Capable | Yes |
| Lithography | 28 nm |
| Package size | 17 x 17 mm |
| Compatible operating systems | FreeBSD 10.2, Linux RHEL 6.7, Linux RHEL 7.1, Linux SLES 11 SP4, Linux SLES 11 SP4-IA64, Linux SLES 12, Linux Stable Kernel version 2.6/3.x, Linux Stable Kernel version 4.x, UEFI 2.1, UEFI 2.3, UEFI 2.4, VMware ESXi 5.5/6.0, Windows 7 SP1, Windows 8, Windows 8.1, Windows 10, Windows Server 2008 R2, Windows Server 2008 R2 Core, Windows Server 2008 R2 Hyper-V, Windows Server 2012, Windows Server 2012 Core, Windows Server 2012 Hyper-V, Windows Server 2012 R2, Windows Server 2012 R2 Core, Windows Server 2012 R2 Hyper-V, WinPE 3.0 (2008 R2 PE), WinPE 4.0 (2012 PE), WinPE 5.0 (2012 R2 PE) |
| Launch date | Q4'15 |
| Product codename | Sageville |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
| Product series | 500 Series Controllers (up to 10GbE) |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G054018 |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Processor special features | |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | Yes |
| Intel Data Direct I/O Technology | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Supported Under vPro | No |
| Ports & interfaces | |
| PCI Express slots version | 3.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Host interface | PCI Express |
| Network | |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-T, 1000BASE-T |
| Network controller sideband interface (NC-SI) | Yes |
| Operational conditions | |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 55 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Logistics data | |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G054018 |
