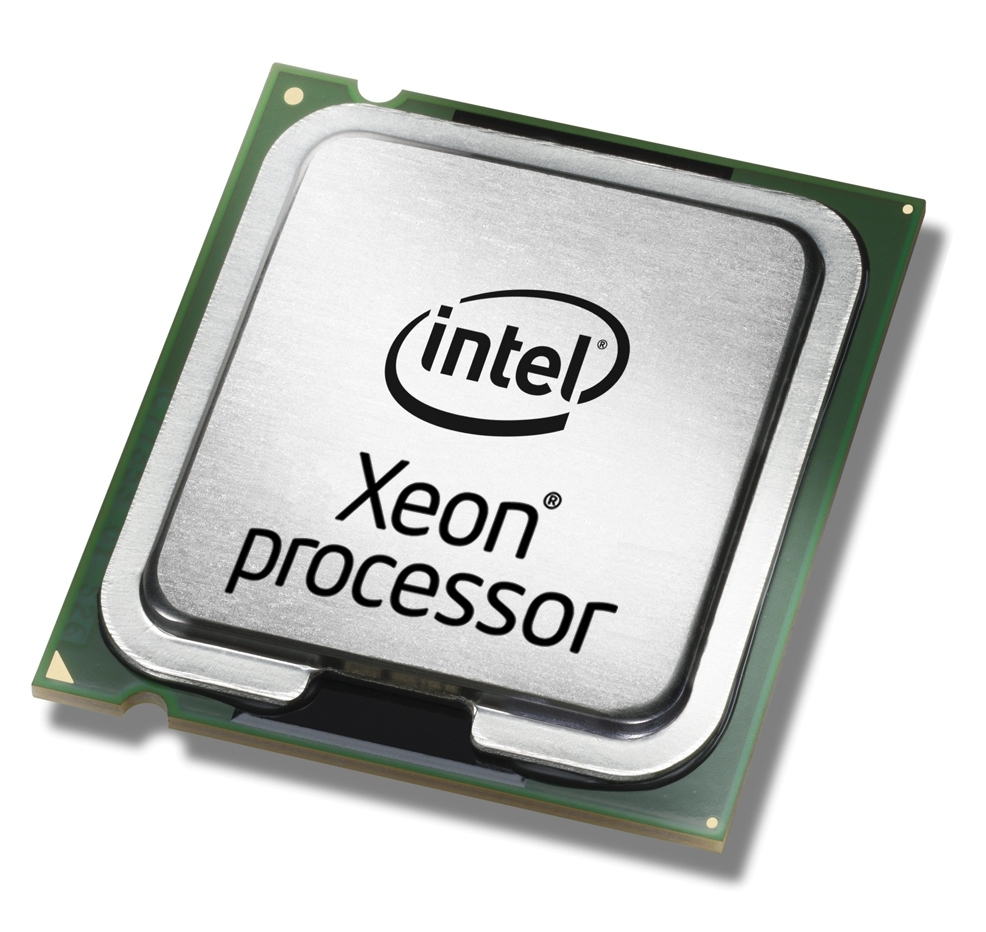

Intel Xeon L5530 processor 2.4 GHz 8 MB Smart Cache Tray
- Brand: Intel
- Category:
- SKU: SLBGF
- EAN:
Intel Xeon L5530, Intel® Xeon® 5000 Sequence, LGA 1366 (Socket B), 45 nm, Tray, Intel, L5530
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Xeon Processor L5530 (8M Cache, 2.40 GHz, 5.86 GT/s) - Refurbished |
SLBGF-06 | |||
|
INTEL XEON L5530 QUAD-CORE (4 |
SM4699 |
Description
Intel Xeon L5530. Processor family: Intel® Xeon® 5000 Sequence, Processor socket: LGA 1366 (Socket B), Processor lithography: 45 nm. Memory channels: Triple-channel, Maximum internal memory supported by processor: 144 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, Number of Processing Die Transistors: 731 M, Processing Die size: 263 mm². Processor package size: 42.5mm x 45mm. Intel® Virtualization Technology (Intel® VT): VT-d, VT-x, Compatibility: Intel Server Board S5520HC Intel Server Board S5500BC Intel Server Board S5500WB Intel Server..., Maximum internal memory: 144 GB
Specifications
| Processor | |
|---|---|
| Processor base frequency | 2.4 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Nehalem EP |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Thermal Design Power (TDP) | 60 W |
| Processor cache | 8 MB |
| Processor ARK ID | 41755 |
| Processor model | L5530 |
| Processor threads | 8 |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 64-bit |
| Compatible chipsets | Intel® 5500, Intel® 5520 |
| VID Voltage Range | 0.75 - 1.35 V |
| Processor boost frequency | 2.66 GHz |
| Stepping | D0 |
| Number of QPI links | 2 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 45 nm |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor cores | 4 |
| Processor socket | LGA 1366 (Socket B) |
| Processor series | Intel Xeon 5500 Series |
| Processor cache type | Smart Cache |
| Package type | Tray |
| Memory | |
| Maximum internal memory supported by processor | 144 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Supported memory types | DDR3-SDRAM |
| Memory channels | Triple-channel |
| ECC | Yes |
| Power | |
| Thermal Design Power (TDP) | 60 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Technical details | |
| Cache memory | 8 MB |
| Intel® Turbo Boost Technology | 1.0 |
| Intel Trusted Execution Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Number of Processing Die Transistors | 731 M |
| Processing Die size | 263 mm² |
| Number of Graphics & IMC Die Transistors | 731 M |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Embedded options available | No |
| Product type | Processor |
| Processor cache | 8192 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 60 W |
| Supported memory types | DDR3-SDRAM |
| Status | Discontinued |
| Product name | Intel Xeon L5530 (8M Cache, 2.40 GHz, 5.86 GT/s Intel QPI) |
| Processor series | Intel Xeon 5500 Series |
| Processor core voltage | 0.75 -1.35 V |
| Physical Address Extension (PAE) | 40 bit |
| Market segment | Server |
| Launch date | Q3'09 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | Smart Cache |
| Bus type units | GT/s |
| Bus bandwidth | 5.86 |
| Born on date | Q3'09 |
| Maximum memory | 144 GB |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor 5000 Sequence |
| Bus speed | 5.86 GT/s |
| Features | |
| Thermal Design Power (TDP) | 60 W |
| Processor package size | 42.5mm x 45mm |
| Processor ARK ID | 41755 |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Number of Processing Die Transistors | 731 M |
| Processing Die size | 263 mm² |
| Number of Graphics & IMC Die Transistors | 731 M |
| Embedded options available | No |
| Physical Address Extension (PAE) | 40 bit |
| Market segment | Server |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 3A991.A.1 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel Trusted Execution Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Operational conditions | |
| Tcase | 70 °C |
| Packaging data | |
| Package type | Tray |
| Logistics data | |
| Harmonized System (HS) code | 8542310001 |
| Weight & dimensions | |
| Processor package size | 42.5mm x 45mm |
| Other features | |
| Cache memory | 8 MB |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Maximum internal memory | 144 GB |
| Maximum internal memory | 147456 MB |
| Compatibility | Intel Server Board S5520HC Intel Server Board S5500BC Intel Server Board S5500WB Intel Server Board S5500HCV Intel Server Board S5500HV Intel Server Board S5500WB12V Intel Server Board S5520HCT Intel Server System SR2625URLX Intel Server System SR2600URBRP Intel Server System SR1690WB Intel Server System SR2612UR Intel Server System SR1670HV Intel Server System SR1630BC Intel Server System SC5650HCBRP Intel Server System SR1600UR Intel Server System SR1625UR Intel Server System SR1680MV Intel Workstation System SC5650SCWS Intel Server System SR1630BCR Intel Server System SC5650BCDPR Intel Server System SC5650HCBRPR Intel Server System SR2625URLXR Intel Server System SR2625URLXT Intel Server System SR2625URBRP Intel Server System SR2625URBRPR Intel Server System SR1600URR Intel Server System SR1600URHS Intel Server System SR1600URHSR Intel Server System SR1625URR Intel Server System SR1625URSAS Intel Server System SR1625URSASR Intel Server System SR2600URBRPR Intel Server System SR2600URLX Intel Server System SR2600URLXR Intel Server System SR2600URSATA Intel Server System SR2600URSATAR Intel Server System SR2612URR Intel Server System SR1695WBAC Intel Server System SC5650BCDP Intel Server System SR1695WBDC Intel Server System SR1690WBR |
