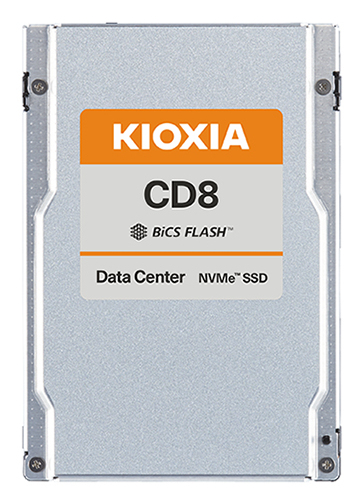

Kioxia CD8-R 3.84 TB 2.5" PCI Express 4.0 NVMe BiCS FLASH TLC
- Brand: KIOXIA
- Category:
- SKU: KCD8XRUG3T84
- EAN: 4582563857384 8592978517175
2,5", 3840 GB, PCIe 4.0, NVMe 1.4, BiCS FLASH TLC, 7200 MB/s read, 3800 MB/s write
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
SSD KCD8XRUG3T84 3.84TB 2.5 PCIe4 CD8-R SDF1E84GEB SIE 1 DWPD Bare |
273156 | |||
|
CD8 - PCIe 4.0 - 1DWPD - 3840GB - SIE - 2.5 |
6791403 |
Description
Data Center NVMe Read-intensive SSD
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Specifications
| Hard drive | |
|---|---|
| PCI Express interface data lanes | x4 |
| SSD capacity | 3.84 TB |
| Memory type | BiCS FLASH TLC |
| Data transmission | |
| Read speed | 7200 MB/s |
| Write speed | 3800 MB/s |
| Random write (4KB) | 195000 IOPS |
| Random read (4KB) | 1250000 IOPS |
| Endurance | |
| Mean time between failures (MTBF) | 2500000 h |
| Features | |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| NVMe version | 1.4 |
| PCI Express interface data lanes | x4 |
| SSD capacity | 3.84 TB |
| Read speed | 7200 MB/s |
| Write speed | 3800 MB/s |
| Memory type | BiCS FLASH TLC |
| Random write (4KB) | 195000 IOPS |
| Random read (4KB) | 1250000 IOPS |
| Mean time between failures (MTBF) | 2500000 h |
| SSD form factor | 2.5" |
| Power | |
| Power consumption (max) | 14 W |
| Operating voltage | 12 V |
| Performance | |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| NVMe version | 1.4 |
| PCI Express interface data lanes | x4 |
| SSD capacity | 3.84 TB |
| Read speed | 7200 MB/s |
| Write speed | 3800 MB/s |
| Memory type | BiCS FLASH TLC |
| Random write (4KB) | 195000 IOPS |
| Random read (4KB) | 1250000 IOPS |
| Mean time between failures (MTBF) | 2500000 h |
| Design | |
| Component for | Server/workstation |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 2.75" (69.8 mm) |
| Weight | 4.59 oz (130 g) |
| Height | 0.591" (15 mm) |
| Depth | 3.95" (100.5 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 74 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1000 G |
| Operating vibration | 2.17 G |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 74 °C |
| Technical details | |
| Interface | PCI Express 4.0 |
| Operating temperature (T-T) | 0 - 74 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1000 G |
| Operating vibration | 2.17 G |
| SSD form factor | 2.5" |
| Warranty period | 5 year(s) |
| Other features | |
| Warranty period | 5 year(s) |
