Lenovo 40AY0135US laptop dock/port replicator Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black
- Brand: Lenovo
- Category:
- SKU: 40AY0135US
- EAN: 0195892103448 4582763356991

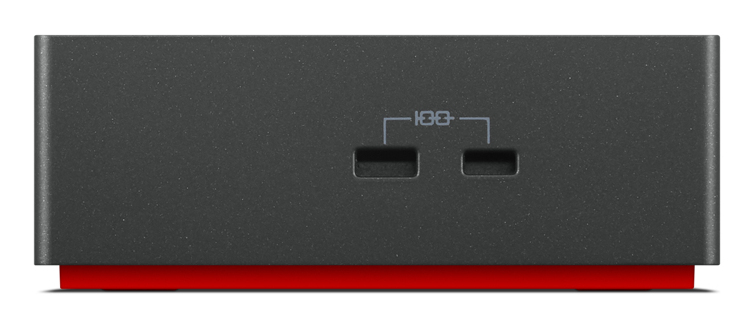

ThinkPad Universal USB-C Dock (with 135W Power Adapter)
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
TP USBC Dock 135W Adapter |
40AY0135US | |||
|
TP USB-C DOCK 135W ADAPTER |
JW9725 | |||
|
Universal USB-C Dock with 135w Power Adapter |
9713928 |
Description
The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100W to notebooks, automated firmware updates and next-level plug-and-play. Everything you'd want from the future of docking is here. It’s perfect for mixed PC environments too, giving user’s the freedom to connect any PC that supports industry standards of USB-C connectivity ****: DISCLAIMER “Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port. Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.”
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Certification | FCC/ICES CE KCC RCM BSMI VCCI CB cULus EAC TUV- Mark Serbia Kvalitet LoA Israel SII Ukraine DoC NOM |
| Cable lock slot type | Kensington |
| HD type | 4K Ultra HD |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| User guide | Yes |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | USB |
| Power supply | 135 W |
| USB cable length | 39.4" (1 m) |
| Software | |
| Windows operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Weight & dimensions | |
| Weight | 13.7 oz (388 g) |
| Width | 6.73" (171 mm) |
| Depth | 3.15" (80 mm) |
| Height | 1.21" (30.8 mm) |
| Package weight | 33.7 oz (955 g) |
| Package width | 8.27" (210 mm) |
| Package depth | 6.22" (158 mm) |
| Package height | 2.95" (75 mm) |
| Design | |
| Windows operating systems supported | Yes |
| Product colour | Black |
| Cable lock slot | Yes |
| Certification | FCC/ICES CE KCC RCM BSMI VCCI CB cULus EAC TUV- Mark Serbia Kvalitet LoA Israel SII Ukraine DoC NOM |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package weight | 33.7 oz (955 g) |
| Package width | 8.27" (210 mm) |
| Package depth | 6.22" (158 mm) |
| Package height | 2.95" (75 mm) |
| Packaging content | |
| User guide | Yes |
| Cables included | Power, USB Type-C |
| Certificates | |
| Certification | FCC/ICES CE KCC RCM BSMI VCCI CB cULus EAC TUV- Mark Serbia Kvalitet LoA Israel SII Ukraine DoC NOM |
