TPS and HDMI Combo Input Board with Analog Audio and PoE

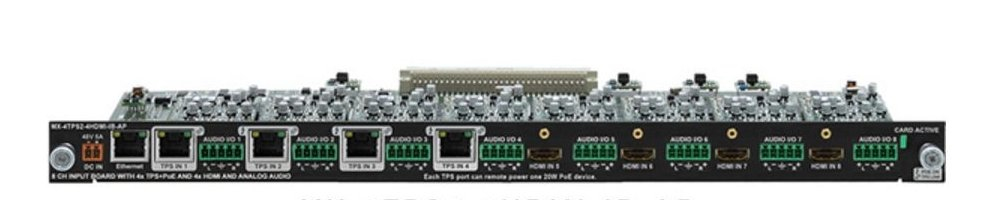

MX-4TPS2-4HDMI-IB-AP is a combination input board with four HDMI and four HDBaseTTM single CAT inputs providing HDMI 1.4, audio, Ethernet and RS‑232 extension on a single CAT5/6/7 cable up to 120m in HDBaseTTM and 170m distance in Long reach mode.

MX‑4TPS2‑4HDMI‑IB-AP is a combination input board with four HDMI and four HDBaseT™ single CAT inputs providing HDMI 1.4, audio, Ethernet and RS‑232 extension on a single CAT5/6/7 cable up to 120m in HDBaseT™ and 170m distance in Long reach mode (maximal resolution is Full HD 1080p in Long reach mode). Resolutions up to 4K / UHD (30Hz RGB 4:4:4 , 60Hz YCbCr 4:2:0) and 48‑bit color depth are handled with all standard audio formats as well as 120Hz 3D signals. The board offers bi-directional RS‑232 and Ethernet transmission (each board has a 10/100 uplink connector for the Ethernet network connection) and remote powering option for the TPS extenders is available with the PoE add-on. The built-in PoE injector function requires the supplied PSU-48vp external power source to be connected directly to the board.

MX‑4TPS2‑4HDMI‑IB-AP also handles HDMI embedded audio. Advanced professional functions such as HDCP enable/disable mode, Pixel Accurate Reclocking, Advanced EDID Management and Frame Detector are also integrated. The board is compatible with deep color, Dolby TrueHD and DTS‑HD audio.
