Mikrotik LDF LTE6 kit Cellular network modem
- Brand: MIKROTIK
- Category:
- SKU: RBLDFR&R11e-LTE6
- EAN:

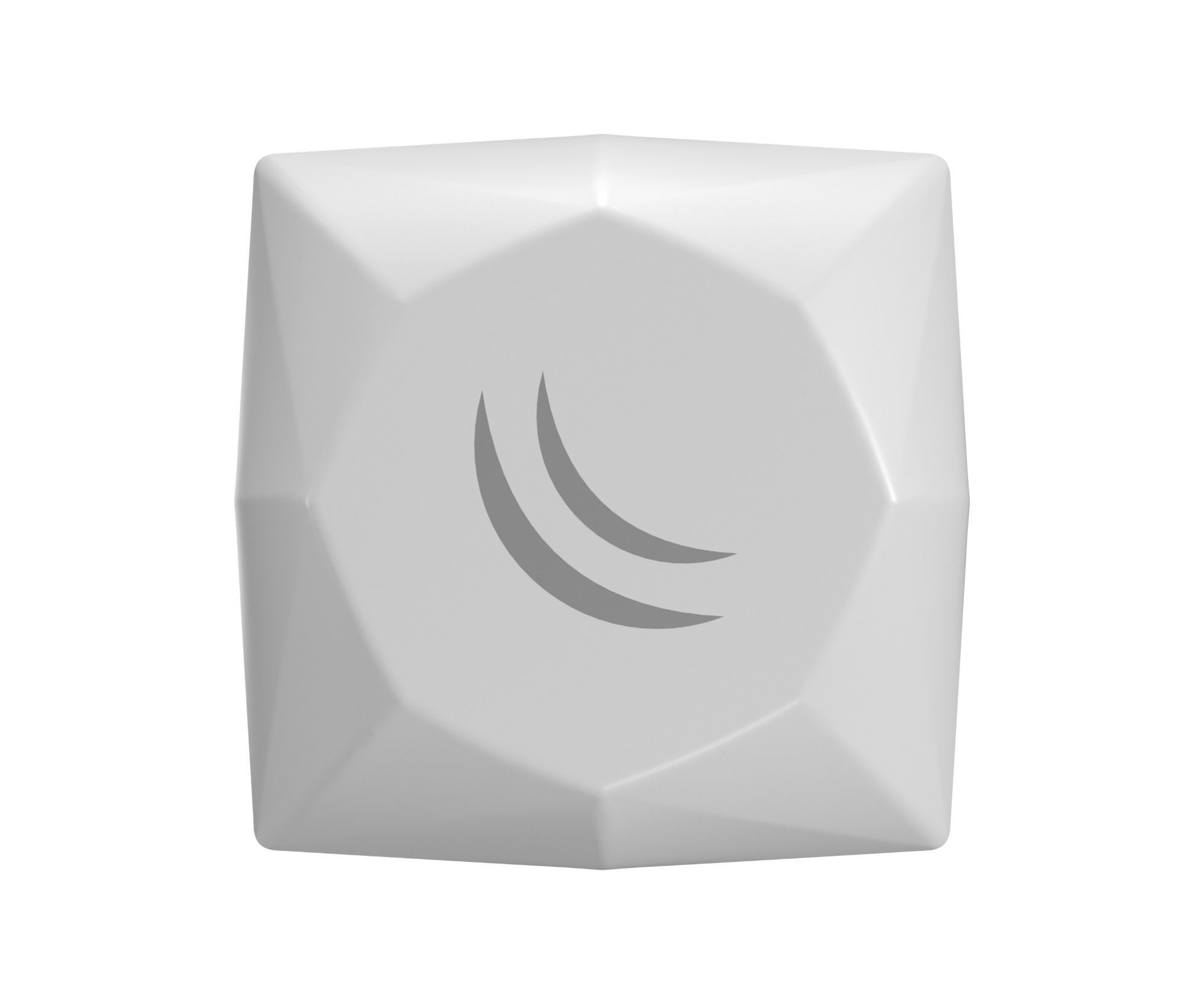

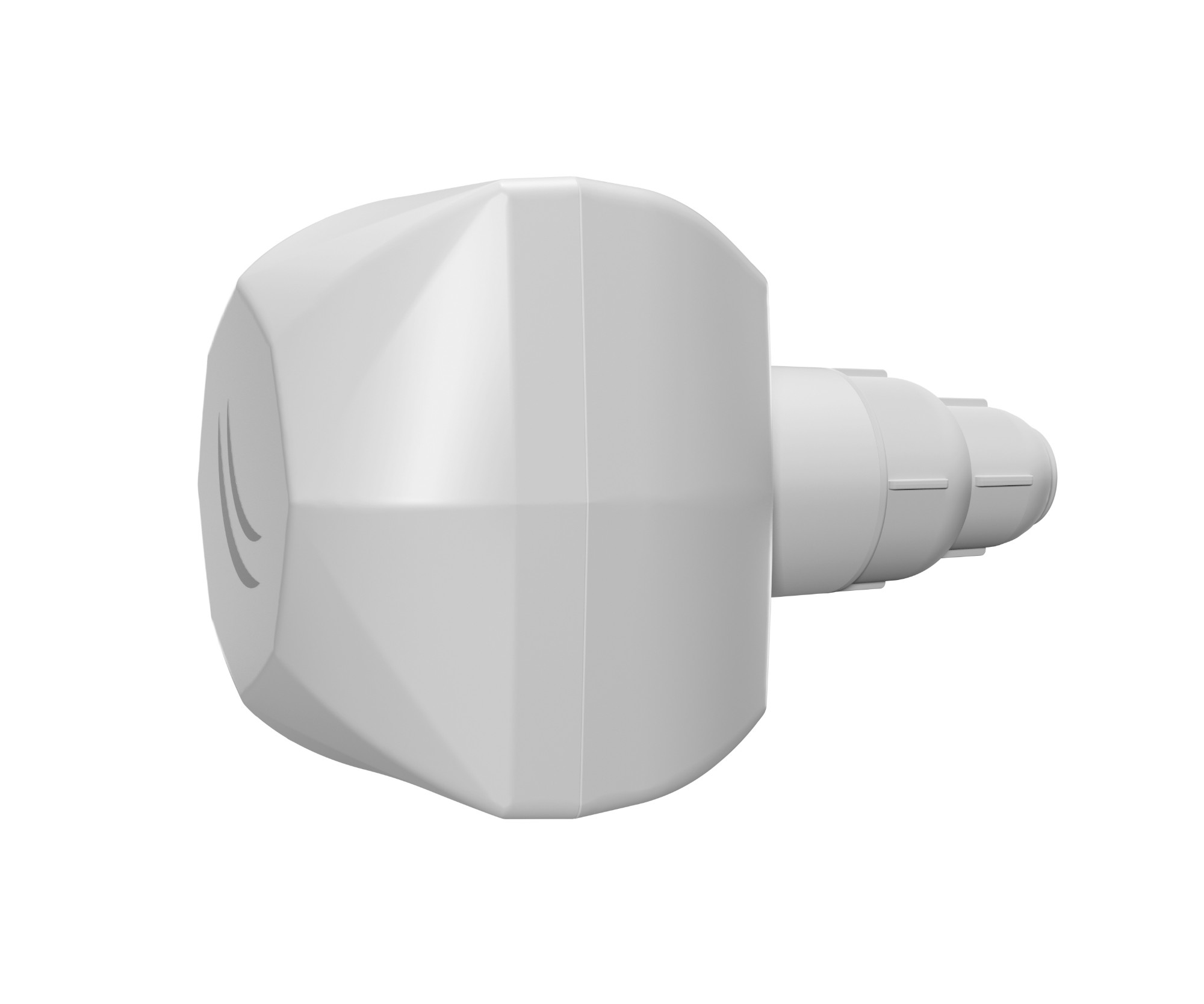

LDF LTE6 kit - RBLDFR&R11e-LTE6
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
- LDF LTE6 kit w/RouterOS L3 ROW, CAT6LTE Modem IP68 rating antenna amplification of 30dbi |
RBLDFR&R11e-LTE6 |
Description

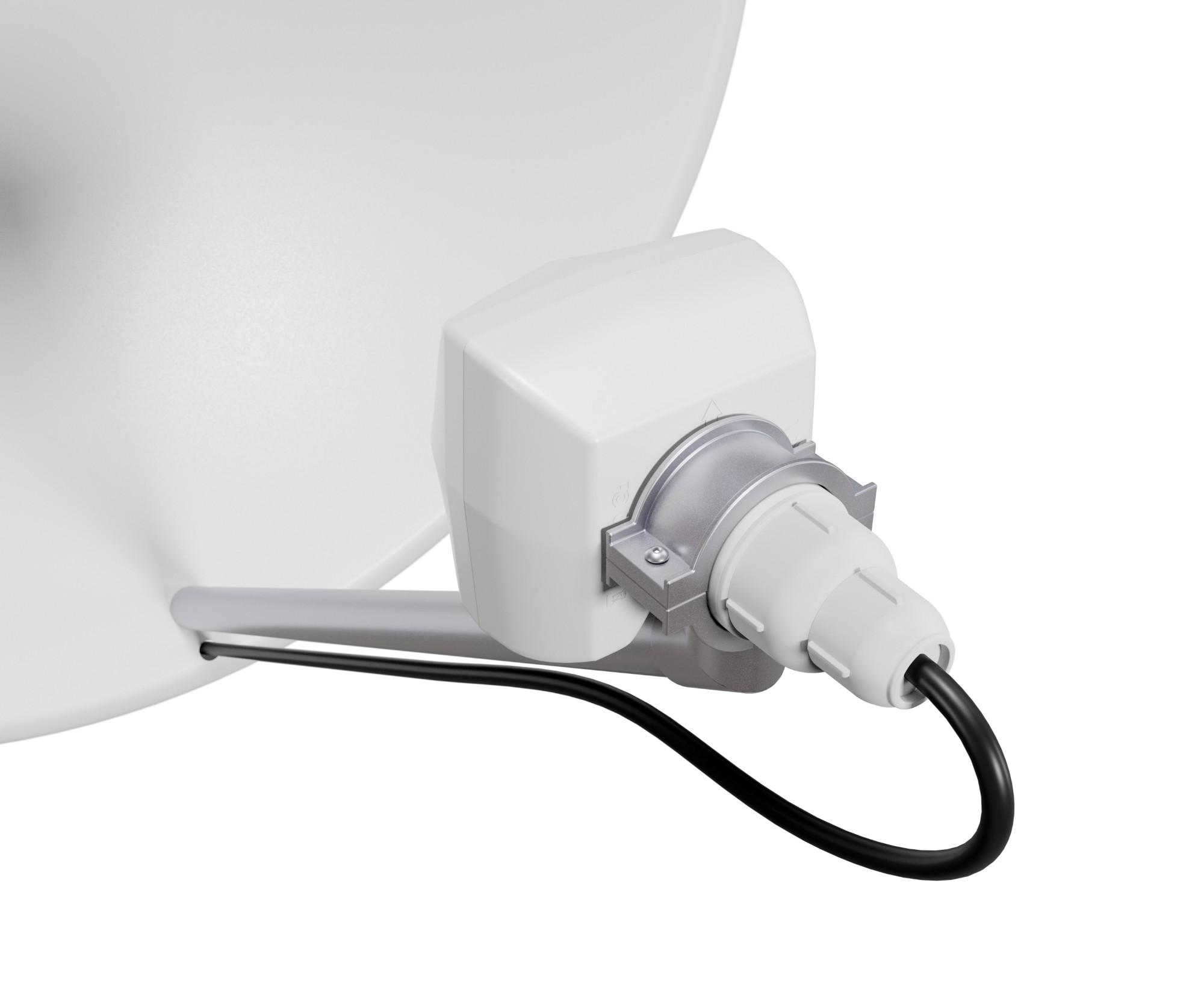

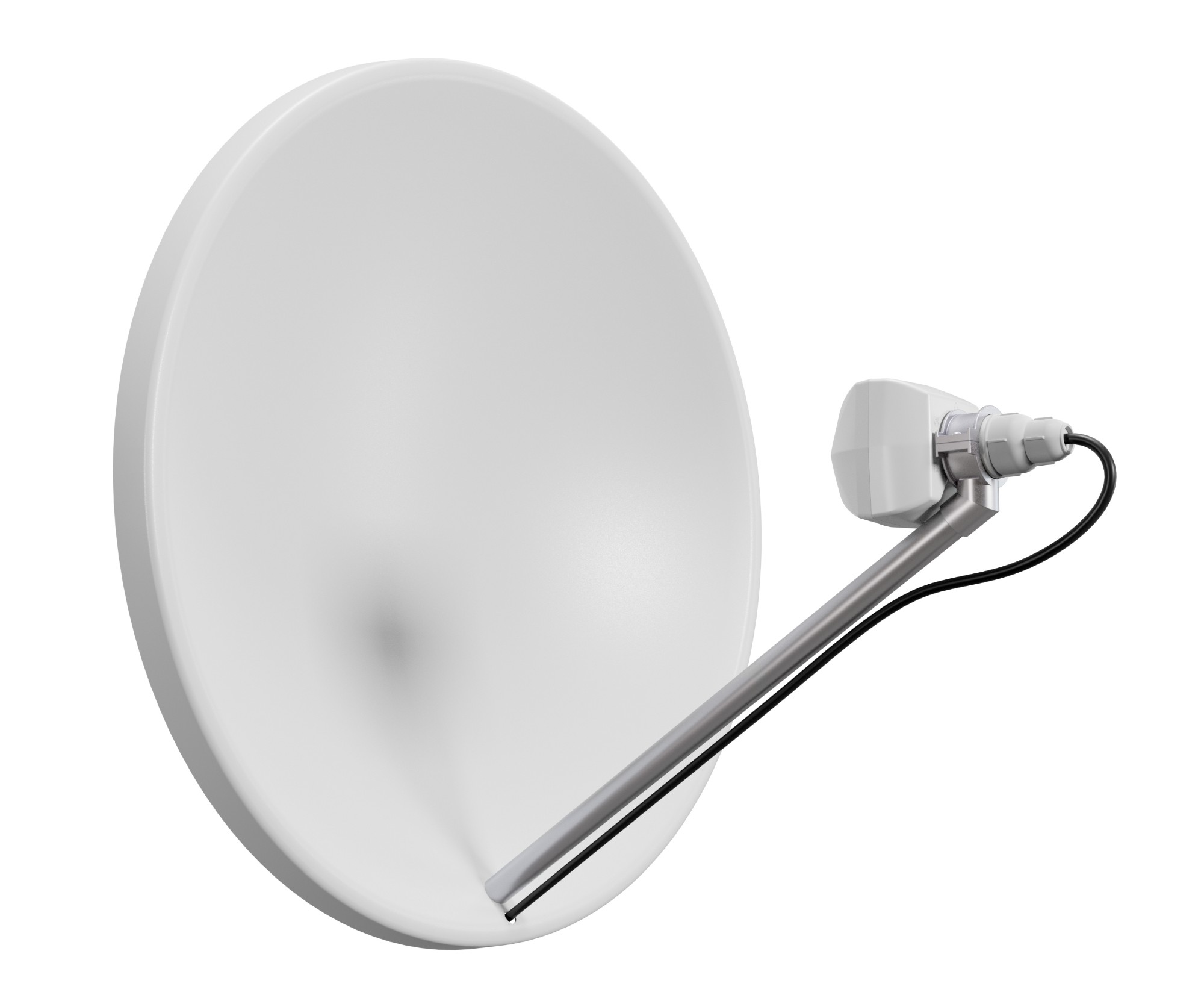

LDF LTE6 kit is a device for extremely remote locations that are within cellular network coverage. Attach it to any satellite TV dish (NOT included) and the dish will act as a reflector, greatly amplifying the signal.
Using large enough dishes, it is possible to obtain antenna amplification of 30 dBi or more. That means – Internet connectivity is possible even in areas, where you would usually have no mobile connectivity at all. Stormy weather is not a problem either – with a solid IP68 rating LDF LTE6 kit can withstand dust, dirt and sand, as well as temporary immersion in water.
LDF LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6.
Included parts: PoE injector, 24V 0.38A power adapter
Using large enough dishes, it is possible to obtain antenna amplification of 30 dBi or more. That means – Internet connectivity is possible even in areas, where you would usually have no mobile connectivity at all. Stormy weather is not a problem either – with a solid IP68 rating LDF LTE6 kit can withstand dust, dirt and sand, as well as temporary immersion in water.
LDF LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6.
Included parts: PoE injector, 24V 0.38A power adapter
Specifications
| Technical details | |
|---|---|
| Device type | Cellular network modem |
| Data network | 2G, 3G, LTE |
| Cellular interface | |
| 2G bands supported | 850,900,1800,1900 MHz |
| 3G bands supported | 850,900,1900,2100 MHz |
| Design | |
| Device type | Cellular network modem |
| Product colour | White |
| Suitable for outdoor use | Yes |
| Ethernet LAN features | |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Wireless LAN features | |
| Wi-Fi | No |
| Mobile network | |
| Data network | 2G, 3G, LTE |
| 2G bands supported | 850,900,1800,1900 MHz |
| 3G bands supported | 850,900,1900,2100 MHz |
| Data transfer rate (LTE) (upload) | 50 Mbit/s |
| Data transfer rate (LTE) (download) | 300 Mbit/s |
| Performance | |
| Antenna gain level (max) | 8 dBi |
| Antenna type | Internal |
| Processor model | QCA9531 |
| RAM capacity | 64 GB |
| Internal storage capacity | 0.016 GB |
| Antenna | |
| Antenna gain level (max) | 8 dBi |
| Antenna type | Internal |
| Power | |
| Power consumption (typical) | 6 W |
| Input voltage | 12 - 57 V |
| Power source type | DC, PoE |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Weight & dimensions | |
| Weight | 10.6 oz (300 g) |
| Width | 3.7" (94 mm) |
| Depth | 5.91" (150 mm) |
| Height | 3.7" (94 mm) |
