Panorama Antennas SH-IN2440 network antenna Omni-directional antenna SMA
- Brand: PANORAMA ANTENNAS
- Category:
- SKU: SH-IN2440
- EAN: 5055416034533
Omni-directional, Black, IP66, 172 x 61 x 50 mm
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
PANORAMA, 5 IN 1 SHARKFIN, BLACK, LOW PROFILE SHARKFIN, 5 IN 1 ANTENNA, AT&T FIRSTNET COMPAT |
SH-IN2440 | |||
|
PANORAMA 5 IN 1 SHARKFIN BLK LP |
6KK626 | |||
|
Panorama 5 in 1 Sharkfin Blk |
5690119 |
Description

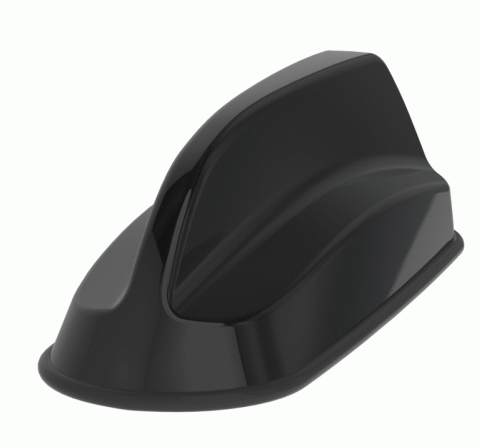

A one size fits all, sharkfin style solution for MiMo Cellular, MiMo WiFi and GPS applications requiring VHF or UHF capability.
The GPSD 'MiMo Sharkee™' has a compact OEM style shark fin housing that contains 2x2 MiMo antenna function for 4G/3G/2G & 3.8GHz 5G LTE, 2x2 MiMo antenna function for 2.4/5.8GHz WiFi and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF or 700/800MHz antennas.
The GPSD shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle’s resale value.
IN2440 also contains a complete set of 5 extension cables; two 5m low loss double sheilded cables terminating in SMA plugs for cellular / LTE, two 5m ultra-low loss double shielded cables terminating in reverse polarity SMA plugs for WiFi and a 5m CS23 cable terminating in an SMA plug for GPS/GNSS.
The GPSD 'MiMo Sharkee™' has a compact OEM style shark fin housing that contains 2x2 MiMo antenna function for 4G/3G/2G & 3.8GHz 5G LTE, 2x2 MiMo antenna function for 2.4/5.8GHz WiFi and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF or 700/800MHz antennas.
The GPSD shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle’s resale value.
IN2440 also contains a complete set of 5 extension cables; two 5m low loss double sheilded cables terminating in SMA plugs for cellular / LTE, two 5m ultra-low loss double shielded cables terminating in reverse polarity SMA plugs for WiFi and a 5m CS23 cable terminating in an SMA plug for GPS/GNSS.
Specifications
| Performance | |
|---|---|
| Frequency band | 0.698 - 0.960/1.71 - 3.8 GHz |
| Features | |
| International Protection (IP) code | IP66 |
| Frequency band | 0.698 - 0.960/1.71 - 3.8 GHz |
| Antenna type | Omni-directional antenna |
| Product colour | Black |
| Cable length | 196.9" (5 m) |
| Antenna connector type | SMA |
| Technical details | |
| Frequency band | 0.698 - 0.960/1.71 - 3.8 GHz |
| Antenna type | Omni-directional antenna |
| Cable length | 196.9" (5 m) |
| Antenna connector type | SMA |
| Colour | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Width | 2.4" (61 mm) |
| Depth | 6.77" (172 mm) |
| Height | 1.97" (50 mm) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
