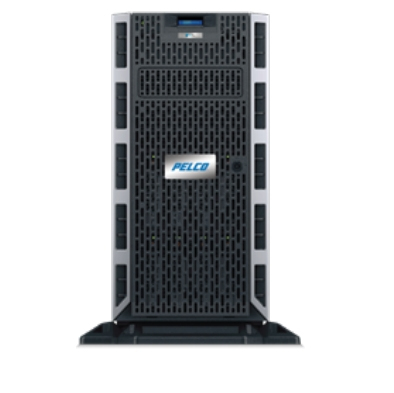

Pelco VXP-F2-20-J-S network surveillance server Tower Gigabit Ethernet
- Brand: Pelco
- Category:
- SKU: VXP-F2-20-J-S
- EAN: 0700880347621
Flex 2 Server, 20TB, Intel Xeon E-2234, 16GB DDR4, NVIDIA Quadro P620 2GB, iDRAC9 Basic, Tower, Windows 10 IoT Enterprise 64-bit
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
VXP FLEX2 SVR & OS 20TB JBODE60S |
10005002 | |||
|
|
VXP FLEX,4TBHD,20TB,JBOD,E35S |
897211 |
Description
VideoXpert Professional provides a video management system platform that seamlessly bridges the gap between mid-market and enterprise platforms by providing a superior user interface and robust feature set that customers demand. Ideal for small to mid-size installations up to 100 cameras, VideoXpert Professional installation is seamless and simple.
Uniquely designed with IT friendly windows and menus, users enjoy a familiar experience when using VideoXpert Professional.
Uniquely designed with IT friendly windows and menus, users enjoy a familiar experience when using VideoXpert Professional.
Specifications
| Processor | |
|---|---|
| Processor family | Intel® Xeon® |
| Processor frequency | 3.6 GHz |
| Processor cores | 4 |
| Processor manufacturer | Intel |
| Processor threads | 8 |
| Processor boost frequency | 4.8 GHz |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR4 |
| Storage | |
| HDD interface | SATA |
| RAID support | Yes |
| RAID levels | 5, 6, JBOD |
| Total storage capacity | 20 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 240 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet interface type | Gigabit Ethernet |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Features | |
| Operating system installed | Windows 10 IoT Enterprise |
| Maximum resolution | 5120 x 2880 pixels |
| Video compression formats | H.256, H.264, M-JPEG |
| Ethernet LAN data rates | 1000 Mbit/s |
| Design | |
| Chassis type | Tower |
| Power | |
| Power supply | 350 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 8.58" (218 mm) |
| Depth | 23.2" (589.1 mm) |
| Height | 17.5" (443.3 mm) |
| Weight | 55.6 lbs (25.2 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 80% |
