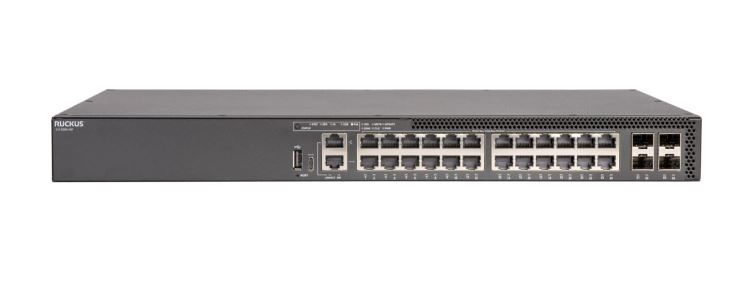

RUCKUS Networks ICX8200-24P network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
- Brand: RUCKUS Networks
- Category:
- SKU: ICX8200-24P
- EAN: 5706998367099
ICX8200-24P - ICX 8200 Switch, 24×10/100/1000 Mbps PoE+ ports, 4×25 GbE SFP28 stacking/uplink-ports, 370 W PoE budget, three-year remote TAC support. Power cord not included
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
24 X 10/100/1000MBPS. CLASS 4 POE, 370W BUDGET. 4 X 1/10/25GBE SFP28 |
6772062 |
Description
The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality
at an affordable price without compromising performance and reliability.
The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack.
In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and “pay as you grow” scalability of stackable solution.
at an affordable price without compromising performance and reliability.
The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack.
In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and “pay as you grow” scalability of stackable solution.
Specifications
| Network | |
|---|---|
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Performance | |
| Stackable | Yes |
| Noise level | 41 dB |
| Mean time between failures (MTBF) | 1550360 h |
| Technical details | |
| Stackable | Yes |
| Noise level | 41 dB |
| Mean time between failures (MTBF) | 1550360 h |
| Rack mounting | Yes |
| Management features | |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| SFP28 ports quantity | 4 |
| Data transmission | |
| Switching capacity | 248 Gbit/s |
| Forwarding rate | 184 Mpps |
| Security | |
| Loop protection | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Design | |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 525 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Non-operating altitude | 0 - 472440.9" (0 - 12000 m) |
| Heat dissipation | 256 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 11" (280 mm) |
| Height | 1.73" (44 mm) |
| Weight | 9.57 lbs (4.34 kg) |
