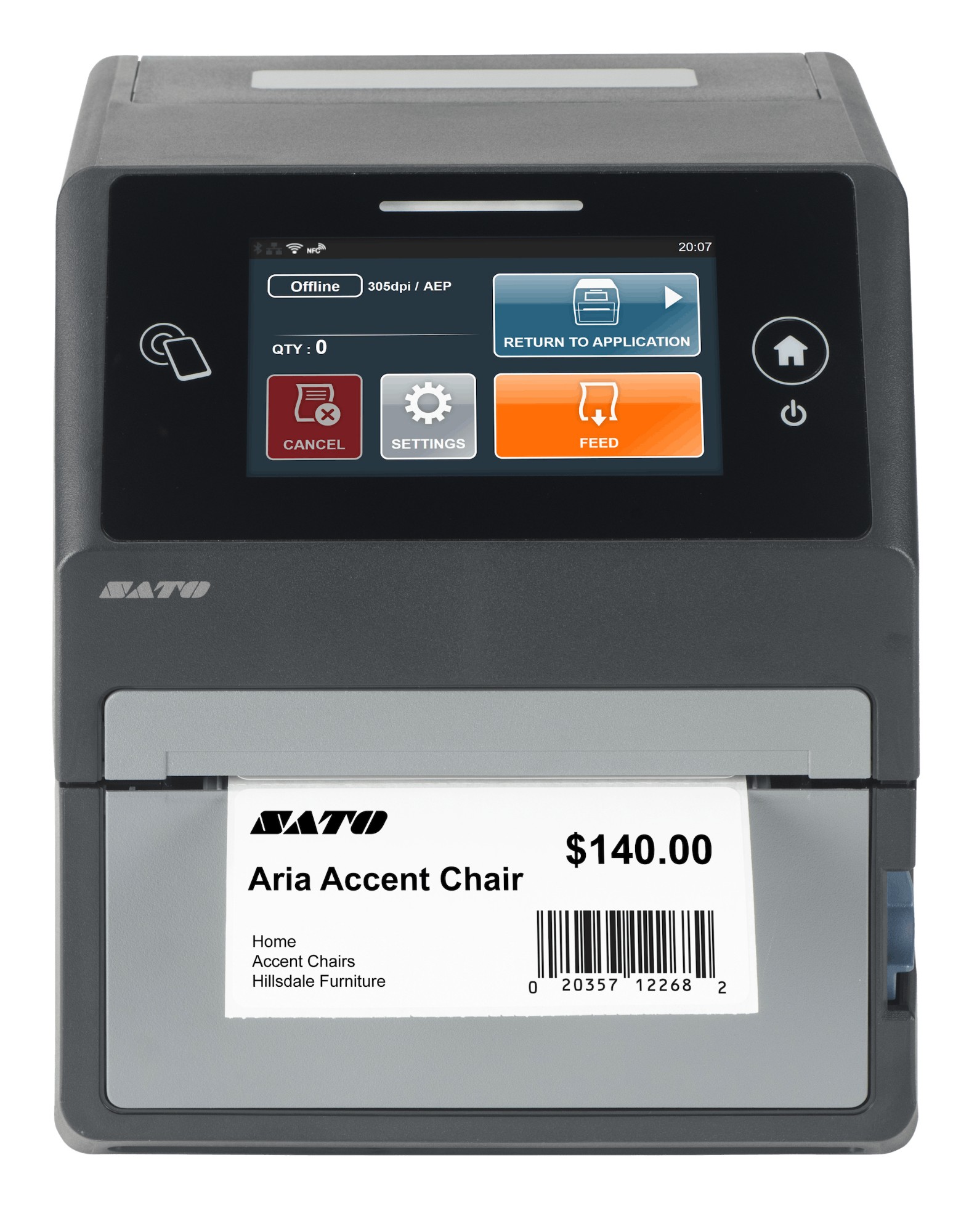

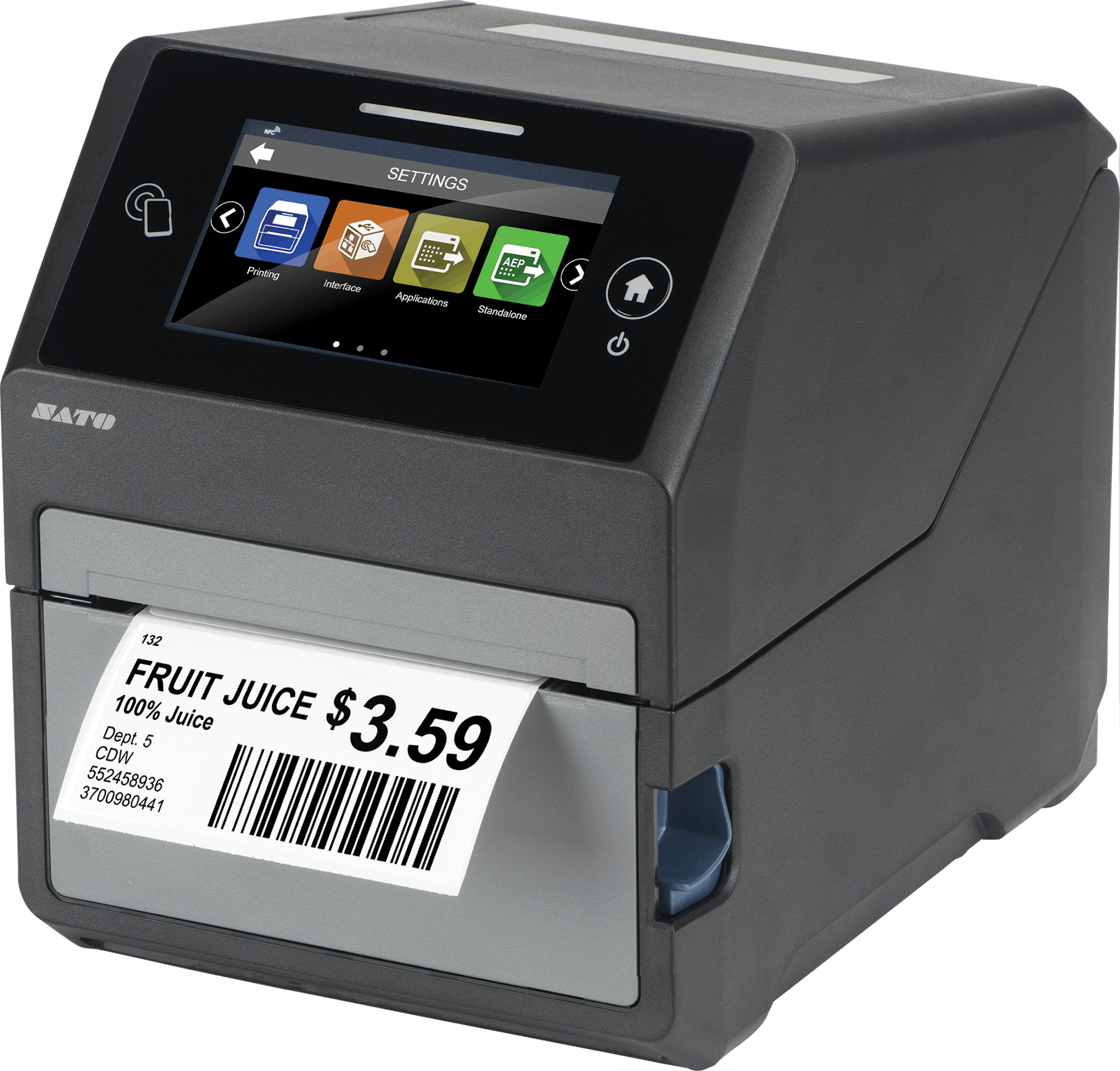

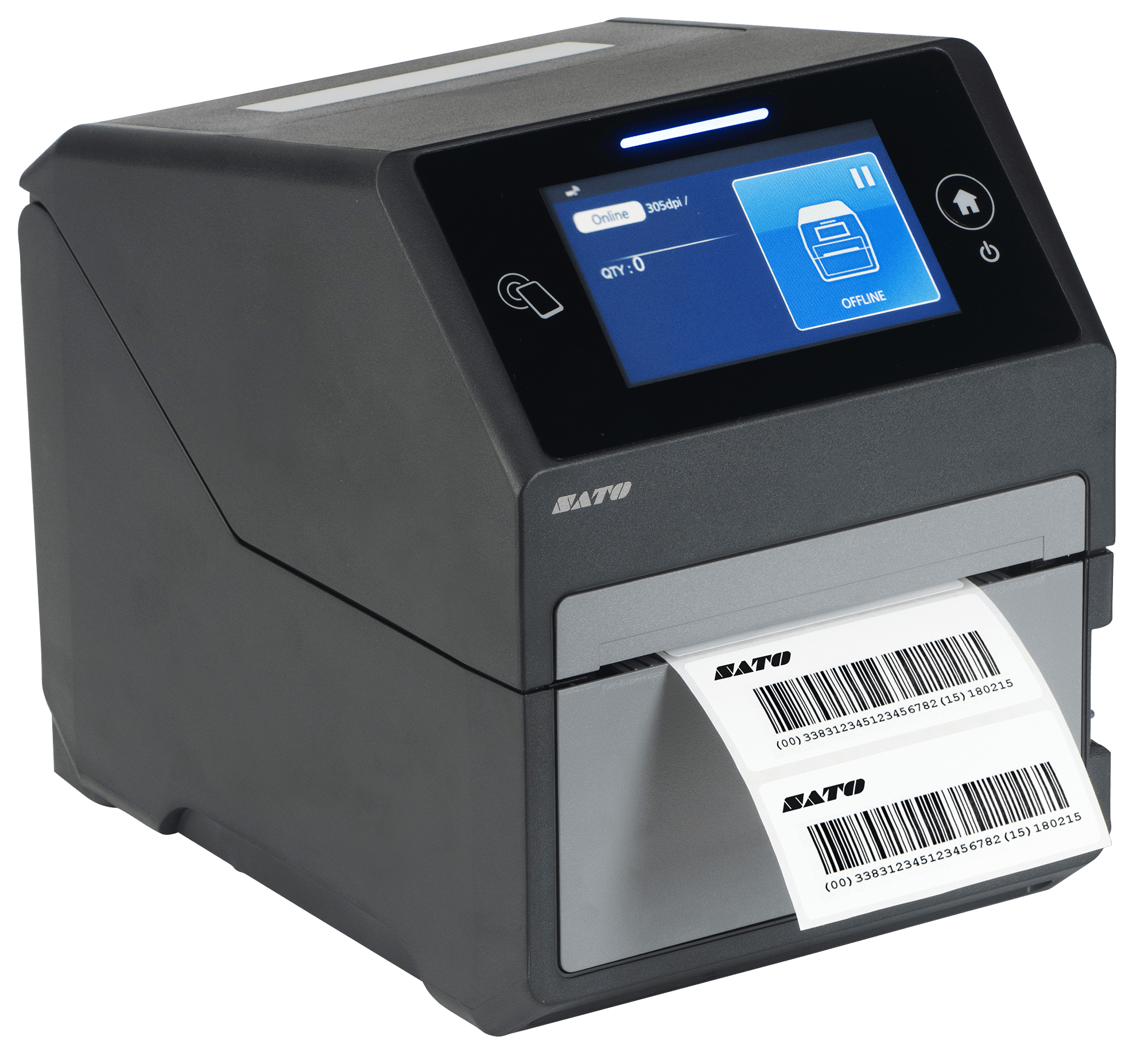

SATO CT4-LX label printer Thermal transfer 203 x 203 DPI 101 mm/sec Wired & Wireless Ethernet LAN
- Brand: SATO
- Category:
- SKU: WWCT03041-NMR
- EAN:
4.3" Touch LCD, 203 dpi, 4 ips, 4GB Flash / 1GB RAM, USB 2.0, Ethernet, NFC, Linerless, RTC
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
CT4-LX 203dpi TT + RTC + Linerless |
SAT-WWCT03041NMR |
Description
CT4-LX Series
Anything but ordinary, the CT4-LX thermal desktop printer seamlessly combines intelligence, functionality, and performance. Standard features include a 4.3-inch full-color touch screen display, multiple connectivity options, existing application support using on-board competitive emulations along with instructional videos. Setup, operation, and maintenance are just a touch away.
Next Generation 4-inch Desktop Thermal Printer
The SATO CT4-LX sets the bar for desktop barcode label printing. This 4-inch thermal printer offers features and functionality typically only found in industrial printer models but in a compact size. The CT4-LX is equipped with a full-color touchscreen display, the latest wireless connectivity options, and a patented label waste prevention feature. Advanced functionality provides auto RFID positioning to encode UHF & HF/NFC RFID Inlays and SATO AEP (Application Enabled Printing) allows for customization for standalone operation, providing exceptional performance and printing. Easy to operate and maintain with user-replaceable printhead and platen roller to quickly keep your business up and running.
Anything but ordinary, the CT4-LX thermal desktop printer seamlessly combines intelligence, functionality, and performance. Standard features include a 4.3-inch full-color touch screen display, multiple connectivity options, existing application support using on-board competitive emulations along with instructional videos. Setup, operation, and maintenance are just a touch away.
Next Generation 4-inch Desktop Thermal Printer
The SATO CT4-LX sets the bar for desktop barcode label printing. This 4-inch thermal printer offers features and functionality typically only found in industrial printer models but in a compact size. The CT4-LX is equipped with a full-color touchscreen display, the latest wireless connectivity options, and a patented label waste prevention feature. Advanced functionality provides auto RFID positioning to encode UHF & HF/NFC RFID Inlays and SATO AEP (Application Enabled Printing) allows for customization for standalone operation, providing exceptional performance and printing. Easy to operate and maintain with user-replaceable printhead and platen roller to quickly keep your business up and running.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 4.09" (10.4 cm) |
| Printing | |
| Rotated printing | Yes |
| Minimum print length | 98.4" (2.5 m) |
| Colour | No |
| Print speed | 101 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 4.09" (10.4 cm) |
| Maximum print size | 104 x 2500 mm |
| Print technology | Thermal transfer |
| Display | |
| Display diagonal | 4.3" |
| Colour display | Yes |
| Display resolution | 480 x 272 pixels |
| Backlight display | Yes |
| Display | LCD |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 4096 MB |
| Paper handling | |
| Ribbon width | 4.37" (11.1 cm) |
| Ribbon length | 3937" (100 m) |
| Media thickness | 0.08 - 0.19 mm |
| Maximum roll diameter | 5.04" (12.8 cm) |
| Maximum print size | 104 x 2500 mm |
| Core diameter | 1.57" (4 cm) |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| Connectivity technology | Wired & Wireless |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, MSI, Matrix 2/5, POSTNET, UPC-A, UPC-E |
| Ribbon width | 4.37" (11.1 cm) |
| Ribbon length | 3937" (100 m) |
| Internal memory | 1024 MB |
| Flash memory | 4096 MB |
| Built-in processor | Yes |
| Design | |
| Display diagonal | 4.3" |
| Colour display | Yes |
| Display resolution | 480 x 272 pixels |
| Backlight display | Yes |
| Display | LCD |
| Product colour | Black, Gray |
| Control type | Touch |
| Power | |
| AC adapter output voltage | 24 V |
| AC adapter output current | 2.7 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| Product colour | Black, Gray |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, Industrial 2/5, Interleaved 2/5, MSI, Matrix 2/5, POSTNET, UPC-A, UPC-E |
| Ribbon width | 4.37" (11.1 cm) |
| Ribbon length | 3937" (100 m) |
| Processor | |
| Built-in processor | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 30 - 80% |
| Weight & dimensions | |
| Width | 7" (177.8 mm) |
| Depth | 9.37" (238 mm) |
| Height | 8.43" (214.1 mm) |
| Weight | 7.5 lbs (3.4 kg) |
